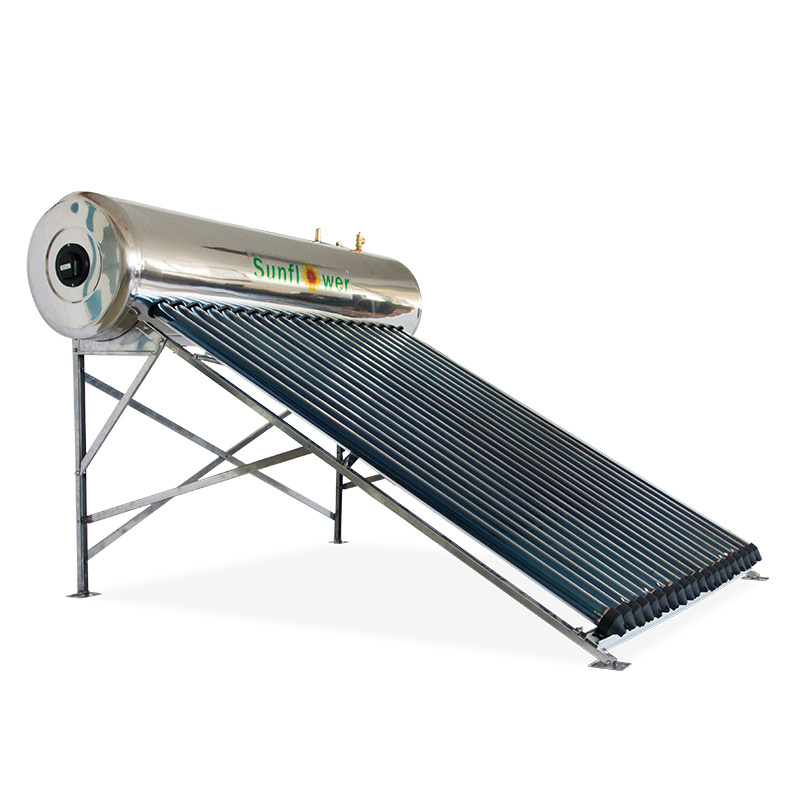

200L Integrated Solar Thermal Panel Solar Water Heater Price

The SFH200H is a pressurized solar water heater that utilizes the high absorption ratio and low emissivity of the solar vacuum collector tube to convert the absorbed solar radiant energy into heat energy, which is inserted into the vacuum tube. The phase change heat transfer of the superconducting heat pipe quickly transfers heat energy into the water tank, gradually increasing the temperature of the entire water tank. The solar vacuum collector tube has the ability to naturally track the sunlight. As long as there is solar auxiliary radiation, the vacuum tube can collect heat immediately; because the phase change superconducting tube has one-way heat transfer characteristics, even in the alpine region, it can run efficiently all the year round

1. Solar water heater tank with pressure design, working pressure up to 0.6Mpa.
2. Hot water outlet pressure is equal to the running water pressure, bring you most vivid enjoy of shower and bath
3. Using phase change heat transfer and natural circulation, 100% solar energy, no running costs.
4. Solar collector has double vacuum glass tube, high thermal efficiency, long service life.
5. There is no water inside vacuum tube even in the extreme cold weather, the vacuum tube will not crack; solve the problem of the decline in thermal efficiency caused by water scale; solve the problem of water leakage caused by explosion or silicone ring aging ;
6. Superconducting heat pipe one-way heat transfer, small capacity, low start temperature, fast heat transfer
7. Superconducting heat pipe has good resistance to low temperature and extreme cold weather, suitable for use in cold areas;
8. If parts of vacuum tubes of solar water heater are broken, no water leakage, the whole system can work as normal.
9. The plug-in connection between the solar collector tube and the insulated water tank is very easy to install.
10. The cost of the parts is low, no post maintenance is required, and no expensive maintenance costs are incurred.

SFH200H can produce 200L of hot water from 55°C to 65°C per day for 4-6 people. This solar water heater is a high-efficiency heat pipe integrated structure, 100% solar energy, natural circulation, high pressure hot water, and more relaxing bathing.

We have more items of solar water heaters for your different application.

Automatically adjusts the influent water flow of cold water by sensing the inlet temperature of hot water to keep the outlet temperature at a set temperature (such as 42 degrees Celsius). Avoid burns caused by excessive water temperature, especially for families with children and the elderly.

The main function of the controller is to display the temperature and control the working state of the electric heating.

With phase change heat transfer and natural circulation, 100% solar energy, no operating costs.

Solar vacuum collector tube absorbs solar energy through high-efficiency AL/N/AL coating and converts it into usable heat in double layer The vacuuming process between the glass can effectively prevent heat loss. The superconducting heat pipe has one-way heat transfer, small capacity, low starting temperature and fast heat transfer; the heat pipe is an evaporation-condensing heat transfer device, which depends on the tube. A change in the state of the working medium to achieve heat transfer. When one end of the heat pipe is heated, the working medium evaporates, and after evaporation, the steam flows to the other end, and when it is cold, heat is released to the heat radiating area. The condensing heat reflux depends on the capillary force and gravity, and continues to be heated and vaporized to reciprocate the cycle, transferring a large amount of heat from the heating zone to the reciprocating cycle of the heat dissipating area. Heat transfer is achieved by the medium of the phase change process.The superconducting heat pipe not only has a fast starting speed, but also has excellent low temperature resistance. -35 ° C can work normally, is the best choice in the cold region.

The solar water heater water tank adopts pressure design, and the hot water outlet pressure is equal to the tap water pressure, bringing you the best bathing experience (enjoy)

There is no water in the vacuum tube, the vacuum tube will not break and will not leak; the scale will not be generated in the vacuum tube, and the heat efficiency can be maintained for a long time.

Welcome to the website of Jiangsu 1st Sunflower Intelligence Technology Co., Ltd
Since entering the field of manufacture of solar products in 1998, 1st sunflower has accumulated deep expertise, good R&D and production skills in solar products and green environmental friendly products. Therefore, we have excellent product design capabilities to provide customers with fast solutions and after-sale support.
The predecessor of Jiangsu 1st Sunflower Intelligence Technology Co., Ltd is 1st Sunflower Renewable Energy Co., Ltd. We are committed to promoting a low-carbon, natural and healthy lifestyle, and we are committed to providing the most advanced green and sustainable products to our customers around the world.
In the process of continuous development of the company, 1st sunflower continuously improves products according to the regional characteristics and living habits of different countries in order to make the product more concise, more convenient to use, more efficient and less maintenance. At last but not least, reduce energy costs while maintaining comfort and protecting the environment.
Our customers are around the world. In order to adapt our products to different scenes, we have also visited many regions over these years. Our long-term experience has taught us the industry habits and international trade policies of many countries. In addition, we have excellent technical staff and experienced international trade service team, who can provide the quickest response and the most powerful support for the problems you face in the process of our cooperation.
The new 1st sunflower (Jiangsu 1st Sunflower Intelligence Technology Co., Ltd.) aims to provide comprehensive, innovative and sustainable solutions for pollution-free solar products, solar energy utilization, and health & sports, including design, manufacturing and delivery. In addition to our main products, like solar water heaters, solar power systems, solar fans, solar air conditioners etc, we are further extend to the health & sports field, to actively pursue our corporate mission – providing customers with comfortable low-carbon natural health lifestyle.
Our new 1st Sunflower will continue to provide a full range of low carbon, environmentally friendly and natural products&solutions for individuals, families, businesses and public projects to further meet the market's functional and price needs. We strictly follow international practices and quality standards in product development, design, manufacturing, improvement, product trace ability and service procedures. In addition to providing you with high quality with reasonable price products and solutions, we further provide you with fast and active after-sales support and service.
Feel free to contact us for further cooperation.

Our Solar Water Heaters can be shipped to the entire global market.
Delivery Time:15 days

Payment method: T/T, L/C, Western Union, Paypal

Description: SFH200H Integrated pressure Solar Water Heater
Package/volume/weight: Carton/0.67CBM/93KG
Packing quantity: 45/20GP, 91/40GP, 106/40HQ
Shipping Mark: By your requirement
