Quick Details
-
Fork Length:
-
1220mm, 1220 mm
-
Fork Width:
-
125mm, 125 mm
-
Overall Dimensions:
-
3515*1995*2450mm, 3515*1995*2450 mm
-
Weight (KG):
-
0 kg
-
Certification:
-
CE/ISO
-
Rated capacity:
-
6000 kg
Quick Details
-
Min. Lifting Height:
-
100mm, 100 mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China, Anhui, China
-
Fork Length:
-
1220mm, 1220 mm
-
Fork Width:
-
125mm, 125 mm
-
Overall Dimensions:
-
3515*1995*2450mm, 3515*1995*2450 mm
-
Weight (KG):
-
0 kg
-
Certification:
-
CE/ISO
-
Rated capacity:
-
6000 kg

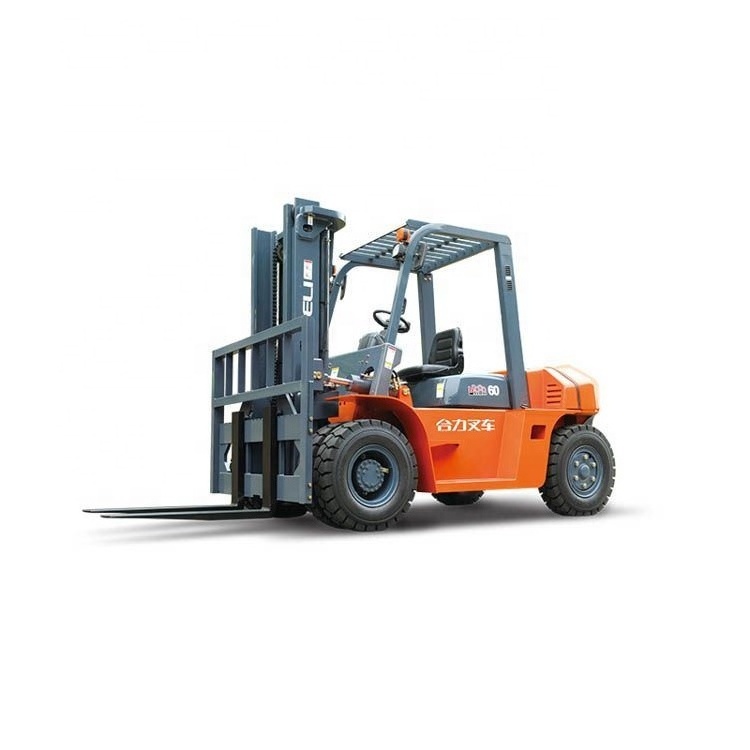

Energy saving gril food truck forklift CPCD60 forklift with clamp
SCIENTIFIC ERGONOMIC APPLICATION
We use scientific ergonomic method to design H2000 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our H2000 Series products. All these measures efficiently protect the user and improve the environment.
RELIABLE SPECIAD DESIGNED INSTRUMENT
Solid State Digital instrument with built-in intellectual chip, what makes it sensitive, accurate, reliab, low power consumption and long-life. It also works in wide temperature range(-40℃~+80℃) and with high interference resistant capability.
POWERFUL ENGINE AND TRANSIMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
| Model |
|
CPCD50/
CPQ(Y)D50 |
CPCD60/
CPQ(Y)D60 |
CPCD70/
CPQ(Y)D70 |
CPCD80 | CPCD100 |
| Power type | Diesel/Gasoline/LPG | Diesel | ||||
| Load capacity | kg | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load center | mm | 600 | ||||
| Max. lifting height | mm | 4420 | 4330 | |||
|
Overall length
(without forks) |
mm | 3440 | 3515 | 3580 | 3940 | 4260 |
| Overall width | mm | 1995 | 2165 | |||
|
Overall height
(overhead guard) |
mm | 2450 | 2560 | |||
| Min. turning radius | mm | 3250 | 3300 | 3370 | 3700 | 3900 |
|
Max. travel speed
(with/without load) |
Km/h | 26/30 | ||||
| Service weight | kg | 7980 | 8640 | 9350 | 10960 | 12510 |
