Quick Details
-
Dimension(L*W*H):
-
3200*2700*1120
-
Power:
-
3-56kw
-
Voltage:
-
220v/380v /customized
-
Weight (KG):
-
400
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Concrete Laser Leveling Screed Machine
-
Suitable for:
-
Construction site road leveling
-
Start type:
-
Electric/Manual
-
Engine Model:
-
Gasoline/diesel
-
Screed Width:
-
2.5m-4m
-
Screed Plate Level Control:
-
Electric Automatic Control
-
Vibration Frequency:
-
50hz
-
Laser control system:
-
American Danfoss laser control system
-
Working speed:
-
4-20m/min
-
Exciting force:
-
2000N
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
construction site pavement
-
Features:
-
Easy operation
-
Dimension(L*W*H):
-
3200*2700*1120
-
Power:
-
3-56kw
-
Voltage:
-
220v/380v /customized
-
Weight (KG):
-
400
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Concrete Laser Leveling Screed Machine
-
Suitable for:
-
Construction site road leveling
-
Start type:
-
Electric/Manual
-
Engine Model:
-
Gasoline/diesel
-
Screed Width:
-
2.5m-4m
-
Screed Plate Level Control:
-
Electric Automatic Control
-
Vibration Frequency:
-
50hz
-
Laser control system:
-
American Danfoss laser control system
-
Working speed:
-
4-20m/min
-
Exciting force:
-
2000N
Products Description

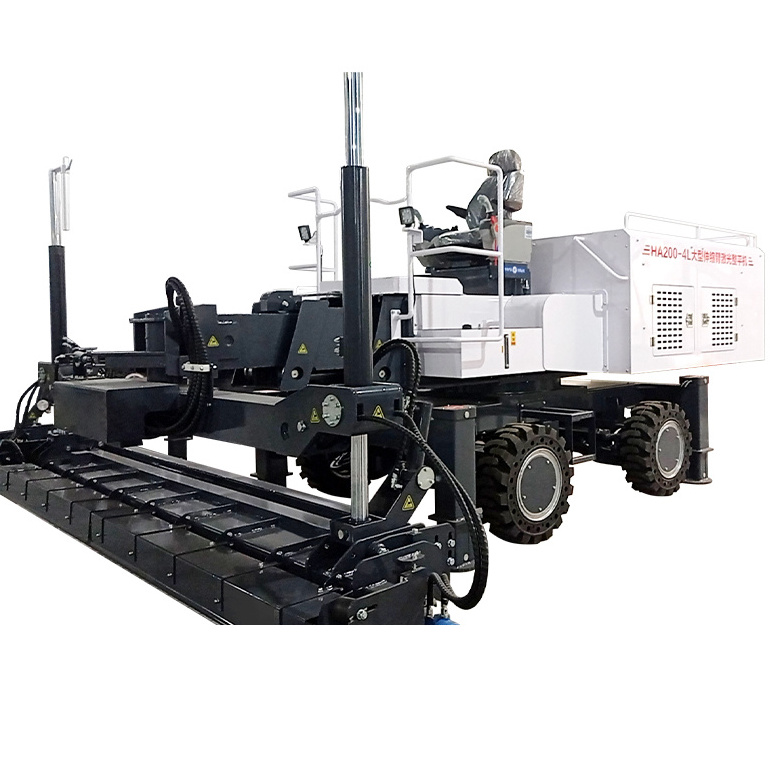

CONCRETE ROAD LASER LEVELING SCREED MACHINE
The laser leveling machine uses precision laser technology, closed-loop control technology and a highly precise hydraulic system to achieve it under automatic computer control. This is its most prominent feature that distinguishes it from other floor construction technologies. Realized precision leveling automation for concrete floors.
CONCRETE ROAD LASER LEVELING SCREED MACHINE
Product Structure
Product details
Laser Control System
American Danfoss laser control system achieves precise leveling
7-Inch Display
The 7-inch display shows the flatness in real time and can also adjust various parameters
Reverse Image
Clear and visible reversing images allow workers to better understand the rear situation in real time Video Surveillance
Walking Tires
Solid anti-skid and anti-puncture narrow tires
Product Display
Various Models
|
Model
|
ZH100-2L
|
ZH100-4 Gasoline
|
ZH100-4 Diesel
|
||
|
Power
|
5.5kw
|
17.6/22kw
|
25kw/34hp
|
||
|
Fuel tank capacity
|
25L
|
45L
|
37L
|
||
|
Laser control system
|
American Danfoss laser control system
|
|
|
||
|
Vibrating plate width
|
2963mm
|
2534mm
|
2534mm
|
||
|
Leveling thickness
|
50-250mm
|
50-300mm
|
50-300mm
|
||
|
Exciting force
|
2000N
|
|
|
||
|
Vibration motor speed
|
3600rpm
|
3600rpm
|
4000rpm
|
||
|
Walking speed
|
0-28m/min
|
0-55m/min
|
0-55m/min
|
||
|
Speed of working
|
4-20m/min(Adjustable)
|
|
|
||
|
Dimensions
|
3250*3200*1250mm
|
3250*2850*1320mm
|
3250*2850*1320mm
|
||
|
Weight
|
420kg
|
800kg
|
900kg
|
||
