Quick Details
-
Maximum Torque:
-
0.87nm
-
Operating Speed:
-
0-24000rpm
-
Power:
-
2.2kw
-
Cooling type:
-
air Cooling
-
Product name:
-
CNC Spindle Motor
-
Voltage:
-
220V/380V
-
Speed:
-
240000rpm
-
Joint of nose:
-
ER20
-
Collet:
-
ER Collet Multi-spindle Head
-
Diameter:
-
80mm
-
Bearings:
-
4 bearings
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
10
-
Brand Name:
-
Changsheng
-
Maximum Torque:
-
0.87nm
-
Operating Speed:
-
0-24000rpm
-
Power:
-
2.2kw
-
Cooling type:
-
air Cooling
-
Product name:
-
CNC Spindle Motor
-
Voltage:
-
220V/380V
-
Speed:
-
240000rpm
-
Joint of nose:
-
ER20
-
Collet:
-
ER Collet Multi-spindle Head
-
Diameter:
-
80mm
-
Bearings:
-
4 bearings

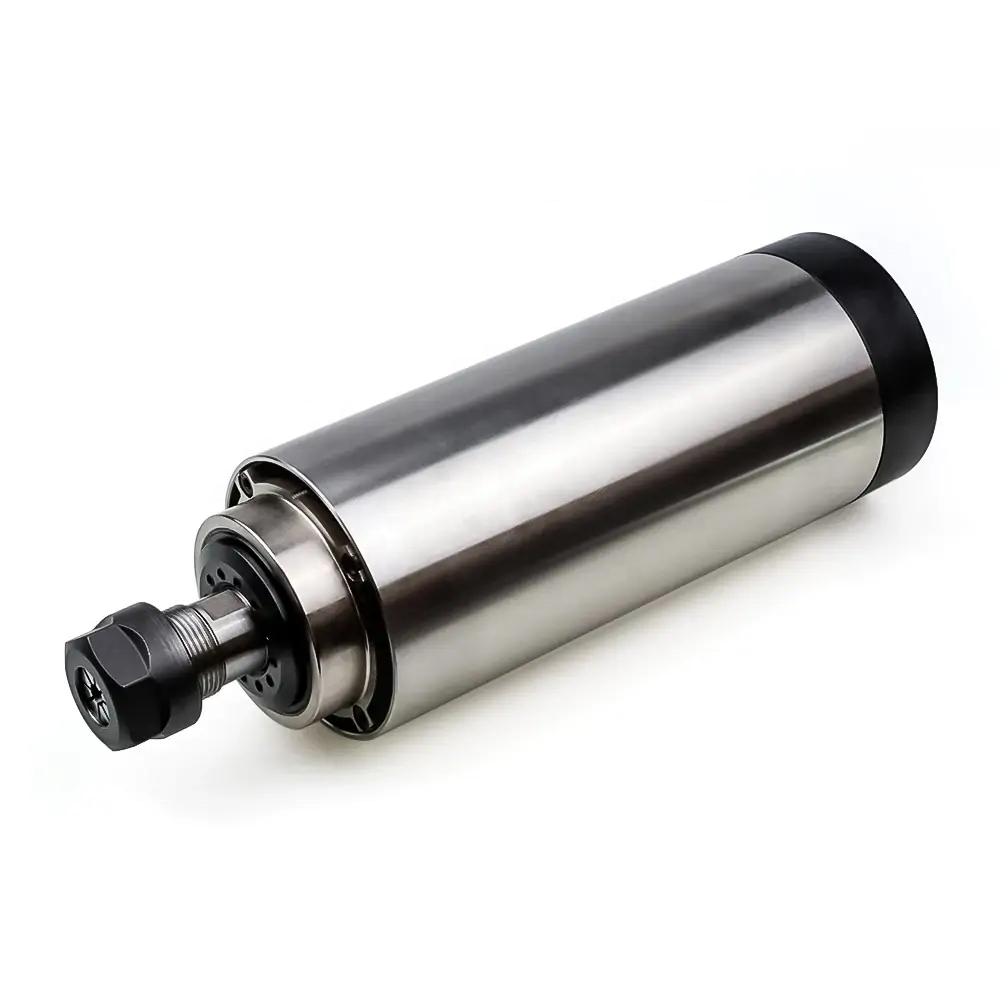

CNC Spindle Motor 2.2KW Air Cooling 400Hz 24000rpm 220v 380v High Speed Engraving Milling Machine Spindle
Spindle Motor Specification:
Material: Stainless steel
Size: Ø80 x 193.5mm(Diameter: 80mm, Length: 193.5mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet
Weight: 4.75kg
