Quick Details
-
Control System Brand:
-
Tubepro
-
Cutting Area:
-
6000*1600mm
-
Cutting Thickness:
-
20
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQ
-
Weight (KG):
-
5000 KG
-
Model:
-
Pipe Fiber Laser Cutting Machine for pipes and profiles cutting
-
Voltage:
-
3 Phases 380V 50-60 HZ
-
Function:
-
Cutting SS CS
-
Working area:
-
6m/8m/9m/12m
-
Key words:
-
Tube Cutting Machine
-
Laser power:
-
1000W / 2000W / 3000W/4000W
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
After-sales Service Provided:
-
Online Support
-
Laser source:
-
Raycus IPG
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
75m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Tubepro
-
Cutting Area:
-
6000*1600mm
-
Cutting Thickness:
-
20
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQ
-
Weight (KG):
-
5000 KG
-
Model:
-
Pipe Fiber Laser Cutting Machine for pipes and profiles cutting
-
Voltage:
-
3 Phases 380V 50-60 HZ
-
Function:
-
Cutting SS CS
-
Working area:
-
6m/8m/9m/12m
-
Key words:
-
Tube Cutting Machine
-
Laser power:
-
1000W / 2000W / 3000W/4000W
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
After-sales Service Provided:
-
Online Support
-
Laser source:
-
Raycus IPG
3 chuck tube laser cut pneumatic chucks Automatic Square/tube Pipe Fiber Laser Cutting Machine for pipes and profiles cutting
Product Description
3 chuck tube laser cut pneumatic chucks Automatic Square/tube Pipe Fiber Laser Cutting Machine for pipes and profiles cutting

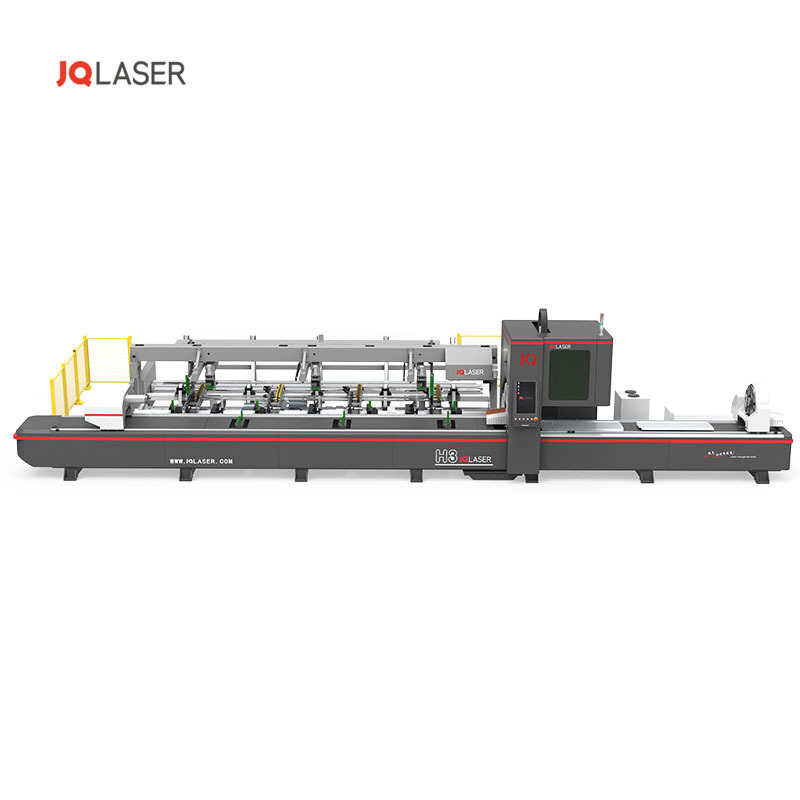

FLT-H3 three-chuck pipe laser cutting machine (optional H1 and H2)
Product introduction: Based on the original three-chuck laser pipe cutting machine, the minimalist design is redefined. A device developed for small diameter pipes of 15~160mm, which makes the processing more refined and standardized.
Product Show
Servo follow-up support
The Servo follow-up support system can effectively ensure support the pipe stably, which provides convenience for pipe cutting.
Three-chucks clamping
Small-caliber pipes are clamped more accurately, and the three chunk move mutually to achieve 0 tailings.
Cyptube 5000A bus control system
The Cyptube 5000A bus control system can compensate the center deviation of the pipe in real time, and the corner cutting speed is faster and more stable.
automatic loading rack for
3 chuck tube laser cut pneumatic chucks Automatic Square/tube Pipe Fiber Laser Cutting Machine for pipes and profiles cutting
Automatic loading frame can realize bundle of tubes into storage basket at one time, tubes are automatically lifted and loaded, with rectangular tube stacking detection and attitude correction function.
Product Paramenters
|
NO.
|
Item
|
Parameter
|
Unit
|
|
1
|
Maximum cut pipe length
|
0~6000 (loading space 6500)
|
mm
|
|
2
|
Cut pipe diameter
|
15~160（external circle of workpiece
|
mm
|
|
3
|
Minimum tail material
|
≥0 (related to workpiece length and actual cutting)
|
mm
|
|
4
|
X, Y, Z axis positioning accuracy
|
±0.05/1000mm
|
mm
|
|
5
|
X, Y, Z axis repeat positioning accuracy
|
±0.03/1000mm
|
mm
|
|
6
|
Acceleration speed
|
1g
|
m/s²
|
|
7
|
Max. running speed
|
75
|
m/min
|
|
8
|
Max. speed of chuck
|
100
|
rpm
|
|
9
|
Maximum load weight
|
160
|
kg
|
|
10
|
Weight of loading machine
|
6000
|
Kg
|
|
11
|
Main machine shape (length, width and height)
|
Approx. 13000×1800×2500
|
mm
|
|
12
|
Laser power
|
***
|
w
|
|
13
|
Control system
|
cypcut 5000A
|
|
|
14
|
Power of the whole machine
|
***
|
Kw
|
|
15
|
Power supply requirements
|
380v/50Hz±10%
|
|
