- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BNP32
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Automatic Nucleic Acid Extraction
-
Sample Capacity:
-
32
-
Processing Volume:
-
20μL-1000μL
-
Sample Volume:
-
20-500μL
-
Sample Throughput:
-
1-32 48
-
Magnetic Bead Recovery:
-
>98%
-
Extracting the Difference Between Holes:
-
CV≤3%
-
Built-in Air Duct:
-
No
-
Ultraviolet Irradiation:
-
Yes
-
Reagent Type:
-
Magnetic bead open platform
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Onsite Training
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BNP32
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Automatic Nucleic Acid Extraction
-
Sample Capacity:
-
32
-
Processing Volume:
-
20μL-1000μL
-
Sample Volume:
-
20-500μL
-
Sample Throughput:
-
1-32 48
-
Magnetic Bead Recovery:
-
>98%
-
Extracting the Difference Between Holes:
-
CV≤3%
-
Built-in Air Duct:
-
No
-
Ultraviolet Irradiation:
-
Yes
-
Reagent Type:
-
Magnetic bead open platform

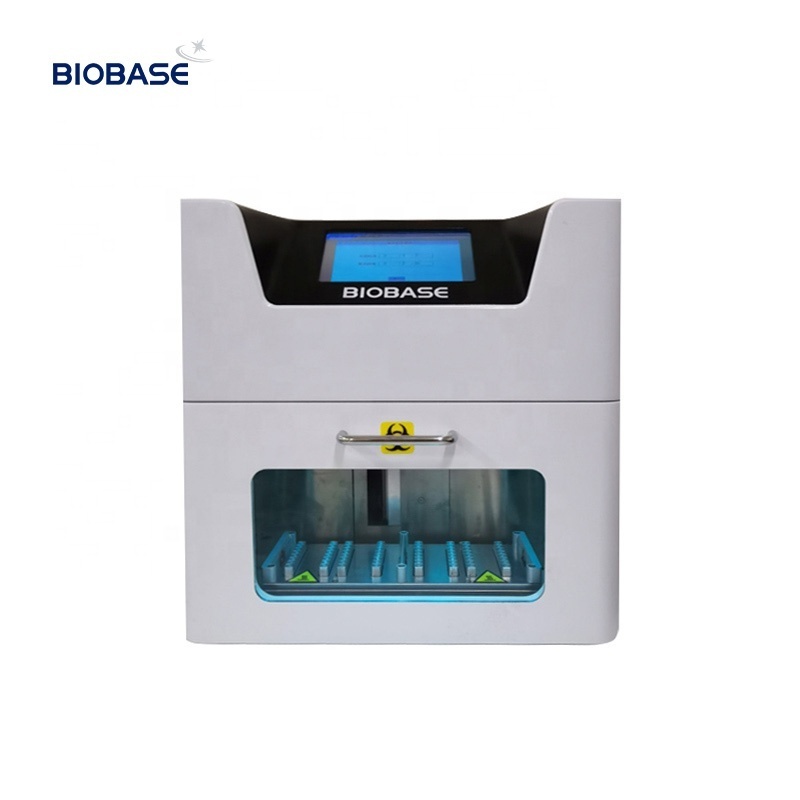

Product Description
BIOBASE
Nucleic Acid Extraction System
Features
7-inch touch screen, easy to use, fast response
User-defined cracking and elution temperature
UV disinfection fuction, time range 1min-24hour
Automatic control system, no need connect to computer
Free programming to meet the needs of different reagent
Open system, fully automatic, stable results and good repeatability
Extract rapidly 15-40 minutes , 32/48 samples can be extracted at the same time
User-defined cracking and elution temperature
UV disinfection fuction, time range 1min-24hour
Automatic control system, no need connect to computer
Free programming to meet the needs of different reagent
Open system, fully automatic, stable results and good repeatability
Extract rapidly 15-40 minutes , 32/48 samples can be extracted at the same time
Product Paramenters
|
Model
|
BNP32
|
BNP48
|
|
|
Sample Quantity
|
32
|
48
|
|
|
Processing Volume
|
20µL-1000µL
|
|
|
|
Sample Volume
|
20-500µL
|
|
|
|
Sample Throughput
|
1-32 48
|
|
|
|
Magnetic Bead Recovery
|
>98%
|
|
|
|
Extracting the Difference Between Holes
|
CV≤3%
|
|
|
|
Heating Temperature
|
8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
|
|
|
|
Oscillating Mixing
|
Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
|
|
|
|
Reagent Type
|
Magnetic bead open platform
|
|
|
|
Extraction Time
|
15-40 min/round (depending on the reagent used)
|
|
|
|
Internal Program
|
Be able to store >100 groups of programs
|
|
|
|
Program Management
|
Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
|
|
|
|
Safety Door Design
|
After the safety door is opened,the program operation will be automatically suspended, and the program can continue to run after
the safety door closed |
|
|
|
Built-in Air Duct
|
No
|
Yes
|
|
|
Ultraviolet Irradiation
|
Yes
|
|
|
|
Packing Size(W*D*H)mm
|
580*510*700
|
700*520*750
|
|
|
Gross Weight(kg)
|
51
|
80
|
|
