Quick Details
-
Material:
-
Aluminium + Insulaiton
-
Function:
-
Sound-proof
-
Size:
-
80 - 315mm
-
Length:
-
0.5 - 1 m
-
Color:
-
Aluminium
-
Feature:
-
Fire Resistan
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OCTOVENT
-
Model Number:
-
OCT-ALD
-
Material:
-
Aluminium + Insulaiton
-
Function:
-
Sound-proof
-
Size:
-
80 - 315mm
-
Length:
-
0.5 - 1 m
-
Color:
-
Aluminium
-
Feature:
-
Fire Resistan

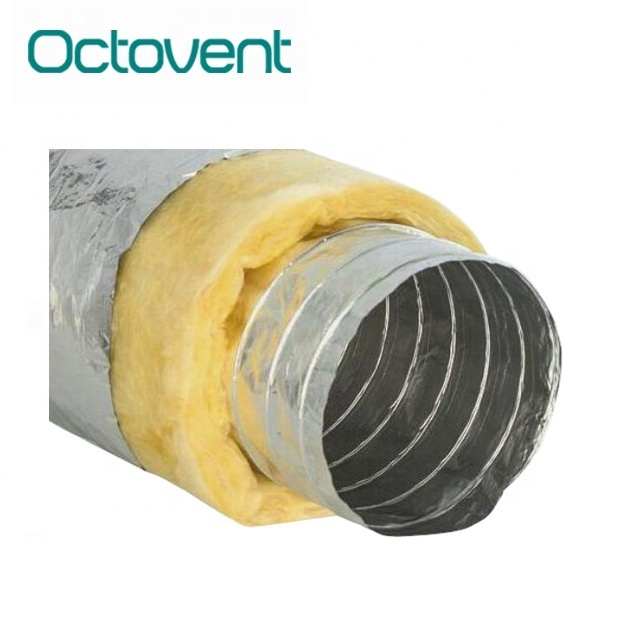

SONO Aluminium Semi-rigid Exhaust Flexible Wire Duct
Flexible duct is used for low/medium/high pressure air ventilation and air coround fire resistant flexible duct with aluminum foilndition systems. Its a range of fully flexible thermally insulated ducting, which has been specially designed for the HVAC market. This range has been developed to minimize the heat gain or loss resulting from the temperature differential between the airflow and the surrounding ambient air. The vapor barrier prevents condensation forming on the outside of ducts carrying air at lower temperatures than the surrounding air.
Construction:
Its constructed with an inner duct (Aluminum) with either 25mm or 50mm fiberglass insulation and covered with an outer jacket,which acts as a vapor barrier. The jacket is a spirally produced multi-layer Aluminum/Polyester laminated fabric reinforced with a fiberglass yarn, which provides an outstanding combination of strength and tear resistance.
|
Outer Sleeve
|
|
aluminium & polyester
|
|
|
|||
|
Standard Diameter Range
|
|
82 mm - 630 mm
|
|
|
|||
|
Standard Length
|
|
10 meters / pc
|
|
|
|||
|
Temperature Rage
|
|
-30 ℃ to 150 ℃
|
|
|
|||
|
Maximum Operating Pressure
|
|
2500Pa
|
|
|
|||
|
Air Velocity
|
|
30m/s
|
|
|
|||
