Quick Details
-
Place of Origin:
-
Shandong, China
-
Certification:
-
CE, DOT, ISO9001,CCC
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
45000kgs
-
Size:
-
12500*3000*1550 mm
-
Place of Origin:
-
Shandong, China
-
Certification:
-
CE, DOT, ISO9001,CCC

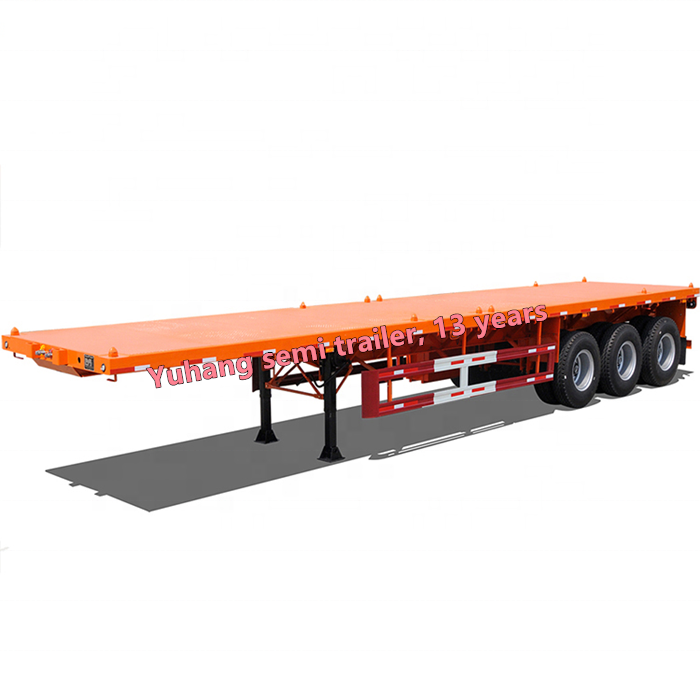

Product Description
|
Overall dimension |
12500 *2500 * 1550mm ((According to customer demand)) |
|
Loading capacity |
30-150T |
|
Tare Weight |
6.5-10T |
|
Axle |
2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
|
Rim |
8.00-20/8.5-20/8.8-20 China Brand |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20 ( specification can be Optional) |
|
Suspension |
Mechanical suspension (German Type or America Type) or Air suspension |
|
Spring leaf |
90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12 ( specification can be Optional) |
|
Wheel base(mm) |
6880+1310+1310. |
|
Kingpin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Steel Spring |
8/8/8, 10/10/10, 12/12/12 pieces per axle |
|
The material of Main beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
|
Side beam |
16mm-25mm channel steel (Material is Q235 carbon steel) |
|
Brake chamber |
6 double brake chambers |
|
Landing gear |
JOST/FUWA/Yahua brand 28T (two speed or single speed) |
|
Twist Locks |
Four, Eight or Twelve pieces (lifting type or Twist Screw Type) Optional locks for loading containers |
|
Platform plate |
3mm Checkered steel plate |
|
Brake system |
Dual Line braking system |
|
Electrical system |
24V, 7 pin socket, One set 7-core standard Cable |
|
Valve |
WABCO/KANGJIAN valve |
|
Tool box |
1set standard tool box (waterproof type) |
|
Spare tire carrier |
1 piece (Patent type) |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
Painting |
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ container |
