Quick Details
-
Brand Name:
-
two fro one twisting machine
-
Dimension(L*W*H):
-
7.07x1.58x2.27m
-
Weight:
-
10 KG
-
Power:
-
9~18kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
CE ISO
Quick Details
-
Application:
-
Twisting Yarn
-
Production Capacity:
-
High speed
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
two fro one twisting machine
-
Dimension(L*W*H):
-
7.07x1.58x2.27m
-
Weight:
-
10 KG
-
Power:
-
9~18kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
CE ISO
High quality yarn two for one twisting machine
TZ326 high speed industrial fiber two-for-one twisting machine is a Hi-Tech creature in our company. It features high spindle speed, wide twisting range and low energy consumption, etc. meets developing requirements of textile industry.
1. Technical features of two-for-one twisting machine:
l It uses PC microcomputer to control digitally. Succinct man-machine interface talk function is easy to operate.
l Single spindle winding operation and traverse control, winder usage.
l Optimization spindle design, the twisting quality is higher.
l Large capacity feeding, large capacity winding.
l Electronic yarn breakage detection device.
l Single spindle control, single spindle measure length, output statistics system.
l On-line inspection, to ensure the yarn quality.
2. Application of two-for-one twisting machine:
l Filament yarn.
l Stretch yarn.
l Short fiber.
l Viscose.
l Aramid.
l BCF.
3. Technical specification of two-for-one twisting machine:
|
No. |
Item |
Specification |
|
1 |
Style |
Two-sided single-layer |
|
2 |
Spindle gauge |
360mm, 260mm |
|
3 |
Quantity of spindles |
120 spindles (10*12) |
|
4 |
Max. spindle speed |
12000r/min |
|
5 |
Twist range |
20-700t/m |
|
6 |
Twist direction |
S or Z |
|
7 |
Max. winding diameter |
200mm |
|
8 |
Winding bobbin |
Dia.70*330, 73*230 |
|
9 |
Reversing bobbin |
Dia.51*330, 51*420 |
|
10 |
Speed of yarn |
Max. 350m/min |
|
11 |
Traverse |
254mm (10 inch); 200mm (8 inch) |
|
12 |
Spindle tensioner |
Balloon ring multistage steel ball |
|
13 |
Spindle driving |
Belt circulation driving |
|
14 |
Motor power |
15-22 Kw |

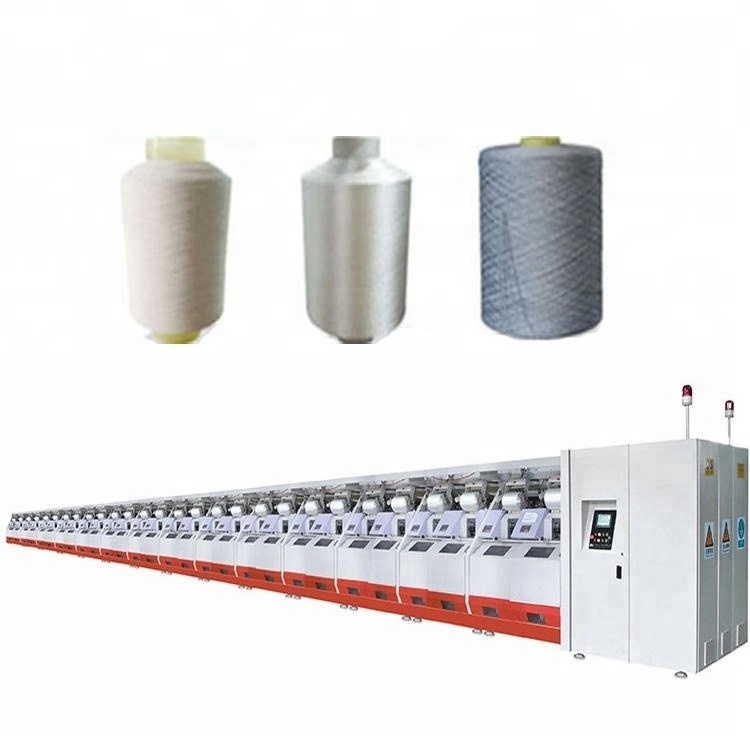

4. Pictures of two-for-one twisting machine:
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
