Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Great Will
-
Model Number:
-
GTB10
-
GSM Frequency Chip:
-
A7670
-
GPRS Network:
-
Class 12,TCP/IP
-
GPS Precision:
-
10m(2D RM)
-
Working temperature:
-
-30℃~ +80℃
-
Working humidity:
-
35%~80%
-
Maximum Output:
-
32±3dBm
-
Positioning Methods:
-
GPS+Beidou
-
Positioning Accuracy:
-
<10 meters
-
Working Voltage:
-
9-36V
-
Positioning Time:
-
Avg.hot start <2s warm Start <28s cold start <38s
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, Beidou, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Voice recorder, Loop recording, Voice Monitor, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
Other, SD Card, TF Card, Cloud Storage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Great Will
-
Model Number:
-
GTB10
-
GSM Frequency Chip:
-
A7670
-
GPRS Network:
-
Class 12,TCP/IP
-
GPS Precision:
-
10m(2D RM)
-
Working temperature:
-
-30℃~ +80℃
-
Working humidity:
-
35%~80%
-
Maximum Output:
-
32±3dBm
-
Positioning Methods:
-
GPS+Beidou
-
Positioning Accuracy:
-
<10 meters
-
Working Voltage:
-
9-36V
-
Positioning Time:
-
Avg.hot start <2s warm Start <28s cold start <38s

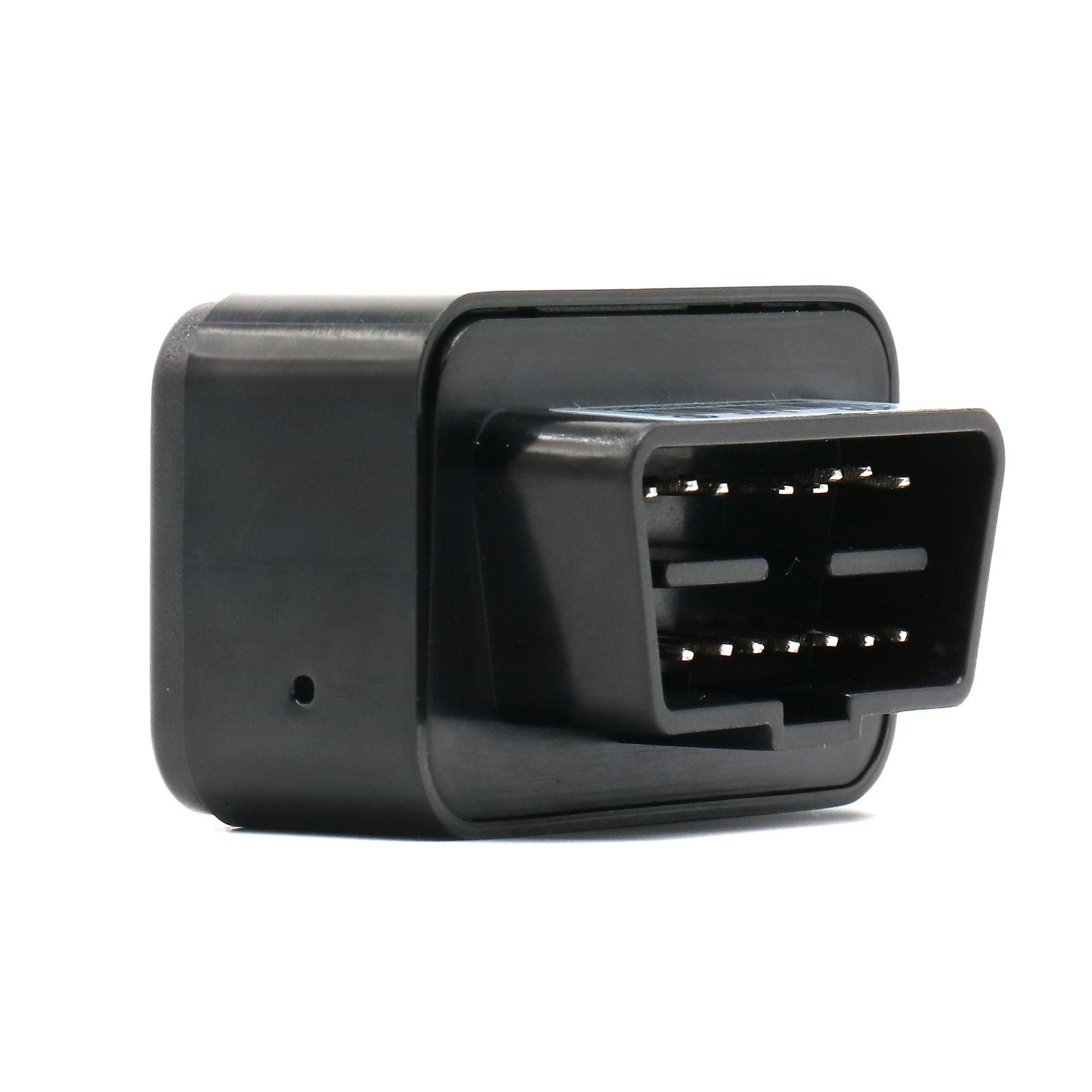

On Board Diagnosis System Alarm Remotely Vehicle Accessories Car OBD Port GPS Tracker Hidden 4G OBD Car Tracker Tracking System
Products Description
|
Region
|
Frequency
|
Price
|
|
Southeast Asia（4G）
|
LTE-FDD:B1/B3/B5/B8 LTE:TDD:B34/B38/B39//B40/B41
|
USD20-25
Sample：USD28（1pc）
|
|
Europe/Middle East/Africa/Thailand/South Korea（2G+4G）
|
LTE-FDD:B1/B3/B5/B7/B8/B20 GSM:900/1800MHz
|
USD21-26
Sample：USD29（1pc）
|
|
New Zealand/Australia/South America（2G+4G）
|
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:850/900/1800/1900 MHz
|
USD22-27
Sample：USD29（1pc）
|
|
Function
|
Description
|
|
Real-time tracking
|
According to the set interval, the location data is reported 30 seconds in the default motion mode and 300 seconds in the static
mode. |
|
Power down alarm
|
Turn on backup battery, when the vehicle voltage is lower than 5v, the device upload a alarm to the server
|
|
Over speed alarm |
Set the maximum speed limit value on the platform or SMS, when the GPS speed is more than the value, the device will upload a
alarm to the server |
|
Low pressure alarm
|
If the voltage is less than 10V for 10S, a low-voltage alarm will be reported
|
|
Blind area uploading data
|
The data is stored up to 300pcs. if the terminal is located and not online, upload this data when the signal is good
|
|
EPO assisted location function
|
The terminal supports the EPO function to assist positioning to enhance the positioning effect.
|
|
Inflection upload |
When the angle of the vehicle turns is more than a certain angle, the device will upload a position information to the platform to
optimize the trajectory. |
|
Upgrade remotely
|
Upgrade Housekeeper remote upgrade.
|
|
Static mode |
The 3D triaxial acceleration sensor detects vibration status of vehicle in real time, when the car is moving, the device is in
motion mode; the device will change to static mode after 5 minutes without vibration, close the GPS module, when vibration is detected, the device automatically changes to motion mode. |
