Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YJ
-
Weight:
-
5000 kg
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Kraft Paper Machine
-
Trim paper width:
-
3900mm
-
Rolled paper width:
-
3950mm
-
Production capacity:
-
120t/d
-
Working speed:
-
130-200m/min
-
Design speed:
-
200m/min
-
Crawling speed:
-
25m/min
-
Wire width:
-
4400mm
-
Rail distance:
-
4900mm
-
Transmission method:
-
AC Motor Division drive
Quick Details
-
Production Capacity:
-
Other
-
Product Type:
-
Other
-
Processing Type:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YJ
-
Weight:
-
5000 kg
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Kraft Paper Machine
-
Trim paper width:
-
3900mm
-
Rolled paper width:
-
3950mm
-
Production capacity:
-
120t/d
-
Working speed:
-
130-200m/min
-
Design speed:
-
200m/min
-
Crawling speed:
-
25m/min
-
Wire width:
-
4400mm
-
Rail distance:
-
4900mm
-
Transmission method:
-
AC Motor Division drive

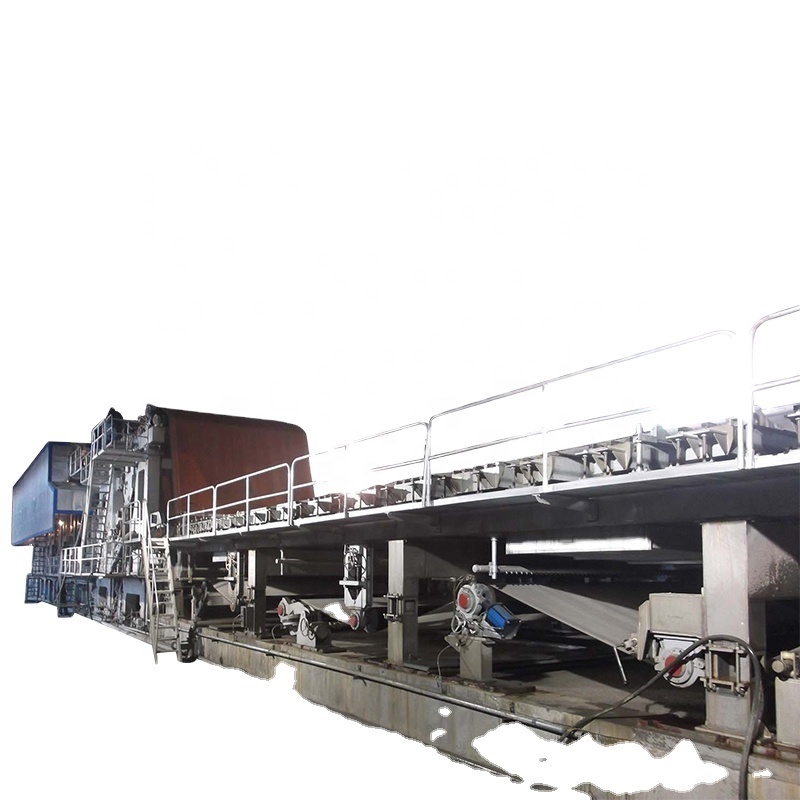

High efficiency cost price low maintenance kraft paper machine for paper plant new business
Product introduction
Kraft paper machines are categorized into kraft paper machines, corrugated paper machines, paperboard machines, etc. according to the type of paper produced. According to the type of paper former used, paper machines are divided into long mesh, round mesh, clip mesh and long round mesh models.
A paper machine can be viewed as a coupling machine consisting of several pieces of equipment. It is usually divided into two main parts: the wet part and the dry part. Wet section includes pulp flow equipment, net section and press section. Cadre includes the drying section, calender and winder.
1. Net section
Net is mainly used to remove the water in the pulp, it bears the vast majority of the dehydration task, in addition to a certain degree of disturbance to the pulp, while making the paper has a good molding, which consists of the top net and low net composition, the two nets are designed to make the paper in the water to the paper on both sides of the paper to take off, so as to reduce the two-sided nature of the paper.
In the design of the full consideration of the convenience of changing the net and the use of cantilever beam structure, its main components are molding board, dewatering board, vacuum case box, the upper suction box, loading table and preloading table, vacuum suction box, ambush roll, chest roll guide roll and doctor blade, drive net roll, water needle and high-pressure water spraying water and other components.
2. Press section
The press section of the paper machine is composed of several groups of roller presses. The wet paper web is drawn by the press felt and dewatered by mechanical extrusion between the press rolls. In order to maintain the good dewatering performance of the press felts, the upper rolls of the press are equipped with a felt washing device. After the press section, the dryness of the wet paper web is generally up to about 40%.
Product technical parameter
|
Product name
|
Kraft Paper Machine
|
|
|
|
|
|
|
||||||
|
Trim paper width
|
3900mm
|
|
|
|
|
|
|
||||||
|
Rolled paper width
|
3950mm
|
|
|
|
|
|
|
||||||
|
Production capacity
|
120t/d
|
|
|
|
|
|
|
||||||
|
Working speed
|
130-200m/min
|
|
|
|
|
|
|
||||||
|
Design speed
|
200m/min
|
|
|
|
|
|
|
||||||
Hot sale
YJ have sanitary paper machine, culture paper machine, kraft paper machine, corrugated paper machine, etc machinery.There are our best selling products,the quality is praised by customers all over the world.
Company introduction
Qinyang No.1 Paper Making Machinery Co.Ltd
Qinyang No.1 Paper Making Machinery Co.,Ltd. was founded in 1960, is the world's leading developer and supplier of pulping and paper making machinery. Our exporting department has been in operation for 10 years.
Our customers&Customer feedback
We have many customers in Egypt, Middle East, Argentina, Uzbekistan, Turkmenistan, Malaysia, Vietnam, Pakistan , Russia,etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Our products have received good comments from customers all over the world.
Packing&service
Packaging
Products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
Shipping
Sea transportation is from Qingdao seaports or other china main ports. The delivery time is decided by machine types.But we also try to make it follows your needs.
Before Purchase
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After purchase
1.Highly inspecting equipment in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipment;
4.Dispatching engineers to install and debug equipment;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging;
FAQ
1.Q:Are you factory or trade company?
A.We are manufacturer, we also supply trade service.
2.Q:How to install the machine?
A:we can help with the installation by video,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
Any questions, please do not hesitate to contact me. Thankyou!
