- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
DXF, BMP, JPG,PNG,NC
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOMSTACK
-
Dimension(L*W*H):
-
382*420*146mm
-
Weight (KG):
-
5 KG
-
Warranty of core components:
-
13 months
-
Core Components:
-
Motor, laser head
-
Material:
-
Aluminum Alloy
-
Color:
-
grey
-
Software:
-
LaserGRBL, LightBurn
-
Laser power:
-
5w
-
pulse width:
-
1ms
-
frequency:
-
1khz
-
Laser wavelength:
-
455±5nm
-
Focus Mode:
-
Fixed focus
-
Style:
-
protable mini desktop laser engraver
-
Product name:
-
laser engraving machine
Quick Details
-
Engraving Area:
-
200mm*200mm
-
Laser Type:
-
Focus lens
-
Engraving Speed:
-
3000mm/min
-
Graphic Format Supported:
-
DXF, BMP, JPG,PNG,NC
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOMSTACK
-
Dimension(L*W*H):
-
382*420*146mm
-
Weight (KG):
-
5 KG
-
Warranty of core components:
-
13 months
-
Core Components:
-
Motor, laser head
-
Material:
-
Aluminum Alloy
-
Color:
-
grey
-
Software:
-
LaserGRBL, LightBurn
-
Laser power:
-
5w
-
pulse width:
-
1ms
-
frequency:
-
1khz
-
Laser wavelength:
-
455±5nm
-
Focus Mode:
-
Fixed focus
-
Style:
-
protable mini desktop laser engraver
-
Product name:
-
laser engraving machine

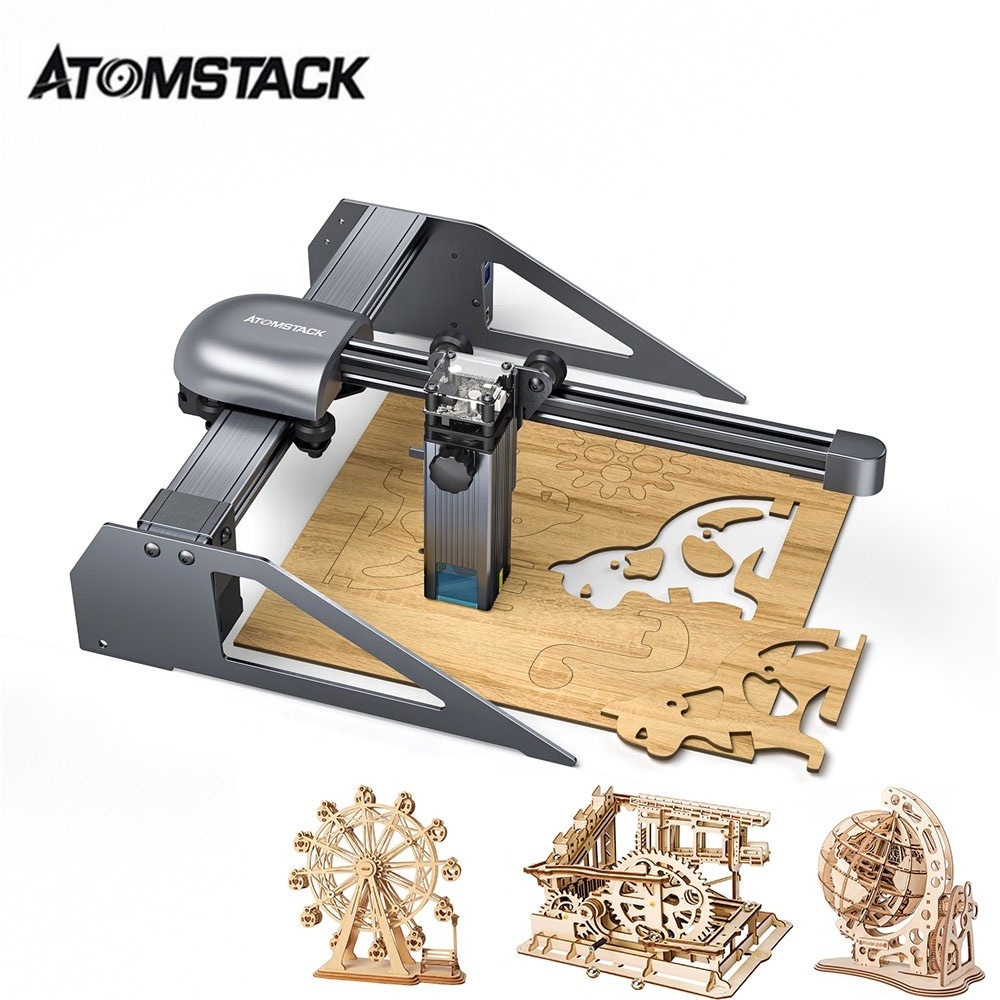

Product Description
1.Eye-protection flame-retardant filter panoramic glass:
The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.
2.Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure,85%pre-assembly, can be installed in 5 minutes.
3.Upgraded version of high-performance fixed-focus laser: Engraving can be done
without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm², which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.
4.Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system(LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5.Precise scale lines axis : There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs.
6.Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm², the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic ; Can directly engrave mirror stainless steel metal and ceramics.
7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated,which makes the movement of the laser more precise and the coupling more durable.
8.New laser with knob: It is more convenient and quick to adjust the height of the laser.
9.The new laser is equipped with a horizontal gyroscope: it stops working immediately when it is tilted to ensure your safety.
10. Colorful gift box packaging: more beautiful and more convenient to give gifts.
|
Item model number
|
ATOMSTACK P7 M40 40W
|
|
Print Size
|
Recommend Print Size 200*200mm
|
|
Carving Objects
|
All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal
|
|
Cutting Objects
|
Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
|
|
Laser power
|
40W
|
|
Laser output power
|
4.5W-5.5W
|
|
Wave Length
|
445 ± 5nm
|
|
Engraving accuracy
|
0.01mm
|
|
Focusing method
|
fixed focus laser, no need to focus
|
|
Laser protective cover
|
Protect the user's eyes and prevent pets from grabbing the laser spot.
|
|
Operating software
|
LaserGRBL, LightBurn,
|
|
Support system
|
support Win XP / Win 7 / Win 8 / XP / Win 10 system
|
|
Input Format
|
NC, BMP, JPG, PNG, DXF, etc.
|
|
Data transmission method
|
USB connection
|
|
Input Voltage
|
AC100-240V, 50/60Hz
|
|
Output Voltage
|
DC12V, 5A
|
|
Equipment net weight
|
3.6kg
|
|
Package weight
|
4.5kg
|
|
Equipment size
|
420*382*146mm
|
|
Packing size
|
490*275*135mm
|
|
Certification
|
CE FCC RoHS PSE
|
|
Assembly block *4
|
Laser*1
|
Laser slide*1
|
Foot pad foam*4
|
|
USB cable*1
|
Open wrench*1
|
Y-axis belt assembly*1
|
Marker *1
|
|
Cable tie*5
|
Screw*4
|
Hexagonal Wrench*2
|
Wood chips*3
|
|
Fixed focus film*1
|
Acrylic sheet*3
|
Cutting pad *1
|
Lower support foot*1
|
|
Upper support foot*1
|
Control box*1
|
X axis assembly*1
|
Y axis assembly*1
|
|
Power adapter*1
|
Power cord*1
|
|
|
Product Certifications
Applicable materials
Packing & Delivery
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
FAQ
Q: How long can i get it after payment done ?
A: Usually dispatched within 48 hours of receipt of payment, with slight delays on weekends and holidays. We ship by express, about 6-10 days to door.
Q: Can I adjust the laser power?
A: yes ,can adjustable.
Q:New ATOMSTACK P7 M40 40W Laser in the description informs 4.5W-5.5W, wouldn't it be 40W?
A :The total power of the machine is 40W, and the laser power is 4.5W-5.5W.
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.
Q：I can't assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.
A: Usually dispatched within 48 hours of receipt of payment, with slight delays on weekends and holidays. We ship by express, about 6-10 days to door.
Q: Can I adjust the laser power?
A: yes ,can adjustable.
Q:New ATOMSTACK P7 M40 40W Laser in the description informs 4.5W-5.5W, wouldn't it be 40W?
A :The total power of the machine is 40W, and the laser power is 4.5W-5.5W.
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.
Q：I can't assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.
Note
*Do NOT operate laser without eye protection 。
*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。
*Please set up laser engraver in the fireproofing area, with good ventilation。
*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。
*Please set up laser engraver in the fireproofing area, with good ventilation。
*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
