Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HanTenCNC
-
Marking Head Brand:
-
jcz
-
Weight (KG):
-
55 KG
-
Marking Area:
-
100mm*100mm-300mm*300mm
-
Core Components:
-
laser source
-
Feature:
-
High-accuracy
-
Laser source:
-
UV laser source
-
Laser wavelength:
-
355nm
-
Working voltage:
-
AC220V single phase 50Hz(option)
-
Marking speed:
-
0-7000mm/s
-
Resolution:
-
0.001mm
-
Repeat positioning accuracy:
-
±0.003mm
-
Marking area:
-
110*110mm~300*300mm
-
Minimum line width:
-
0.01mm
-
Minimum character height:
-
0.2mm
-
Cooling system:
-
Air Cooling
Quick Details
-
Working Accuracy:
-
0.003mm
-
Graphic Format Supported:
-
PLT, DXF, DXP
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HanTenCNC
-
Marking Head Brand:
-
jcz
-
Weight (KG):
-
55 KG
-
Marking Area:
-
100mm*100mm-300mm*300mm
-
Core Components:
-
laser source
-
Feature:
-
High-accuracy
-
Laser source:
-
UV laser source
-
Laser wavelength:
-
355nm
-
Working voltage:
-
AC220V single phase 50Hz(option)
-
Marking speed:
-
0-7000mm/s
-
Resolution:
-
0.001mm
-
Repeat positioning accuracy:
-
±0.003mm
-
Marking area:
-
110*110mm~300*300mm
-
Minimum line width:
-
0.01mm
-
Minimum character height:
-
0.2mm
-
Cooling system:
-
Air Cooling
Show Details

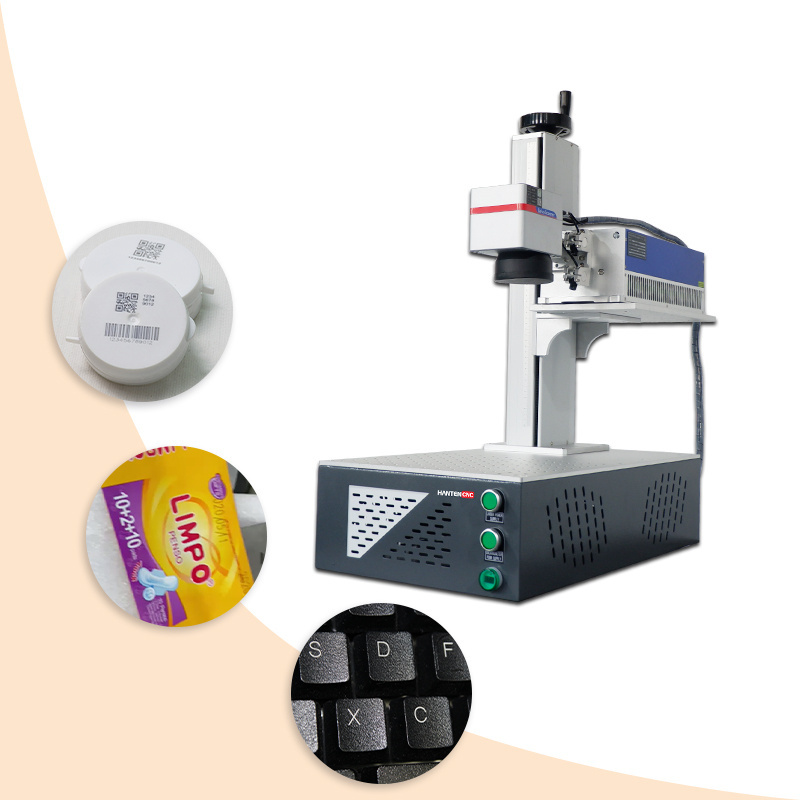

HANTENCNC UV laser marking machine is small in size and easy to carry. High safety and easy to operate. The beam quality is excellent, the cost of use is low, and the marking speed is fast.
Specification
|
Laser source
|
UV laser source
|
|
Laser wavelength
|
355nm
|
|
Marking speed
|
0-7000mm/s
|
|
Resolution
|
0.001mm
|
|
Repeat positioning accuracy
|
0.003mm
|
|
Marking area
|
110*110mm~300*300mm
|
|
Minimum line width
|
0.01mm
|
|
Minimum character height
|
0.2mm
|
|
Cooling system
|
Air cooling
|
|
Working voltage
|
0.5KW/AC220V/50Hz(option)
|
|
Working environment
|
0~35°C humidity≤90%
|
|
Galvo head
|
Sino galvo head
|
|
Control board
|
JCZ control board
|
Sample display
Applicable materials: Any metal (including rare metals), stainless steel, alumina material, engineering plastics, electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, and other materials.
