Quick Details
-
Application:
-
Construction, Concrete Floor
-
Design Style:
-
Modern
-
Weight:
-
15KG/M, 15KG/M
-
Chemical Composition:
-
Galvanized & Stainless Steel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEISHUO
-
Product Name:
-
Armor-Edge Joint Edge protection systems for concrete flatwork
-
Material:
-
Mild Steel
-
Surface treatment:
-
Anodized; Polished
-
Certificate:
-
ISO9001:2008
-
Sample:
-
Availible
-
Color:
-
Silver
-
Packing:
-
Wooden Crate Packing Inside:soft Foam
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Free spare parts
-
Project Solution Capability:
-
total solution for projects, Others
-
Application:
-
Construction, Concrete Floor
-
Design Style:
-
Modern
-
Weight:
-
15KG/M, 15KG/M
-
Chemical Composition:
-
Galvanized & Stainless Steel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEISHUO
-
Product Name:
-
Armor-Edge Joint Edge protection systems for concrete flatwork
-
Material:
-
Mild Steel
-
Surface treatment:
-
Anodized; Polished
-
Certificate:
-
ISO9001:2008
-
Sample:
-
Availible
-
Color:
-
Silver
-
Packing:
-
Wooden Crate Packing Inside:soft Foam

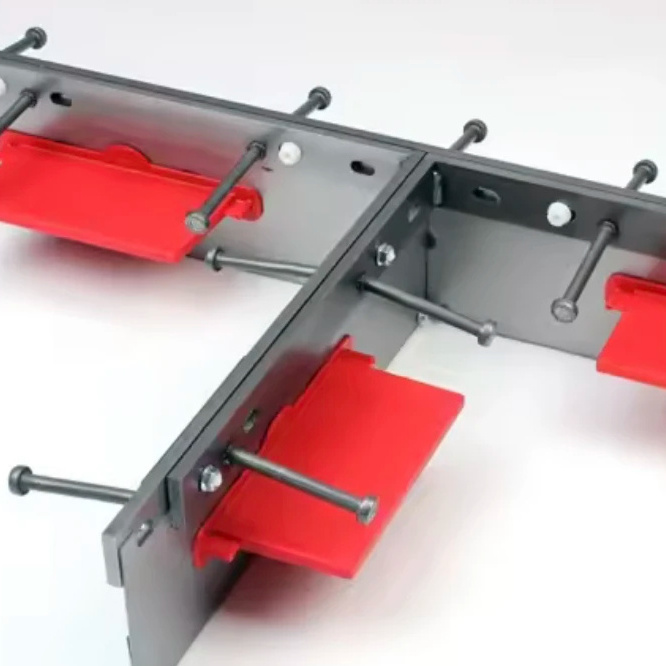

Meishuo concrete armour joint system is an arris protection, load transfer and leave-in-place floor joint system suitable for heavy duty industrial concrete floors, used to protect construction joints from damage. The armour joint is made of 2 upper plates made of steel (galvanized or stainless steel), to allow optimum protection of the lips of the joint. Welded dowels are used on both sides to anchor these plates in the concrete.
As the slab hardens, the concrete shrinks and the lips of the joint move apart to limit stresses in the concrete. The vertical forces are borne by intermittent flat studs, which are distributed along the length of the profile.On one side of the joint, the flat studs are directly embedded in the concrete; and on the other, they are inserted into a sleeve to allow horizontal sliding in both directions.
As the slab hardens, the concrete shrinks and the lips of the joint move apart to limit stresses in the concrete. The vertical forces are borne by intermittent flat studs, which are distributed along the length of the profile.On one side of the joint, the flat studs are directly embedded in the concrete; and on the other, they are inserted into a sleeve to allow horizontal sliding in both directions.
01
Available in 6 mm, 8 mm and 10 mm thickness, Galvanized & Stainless Steel.
02
Width of Armour joint totally depends on Pavement Slab. If Width of a slab is 150mm then Width of Armour joint will be 130mm, if
Width of a slab is 200mm then Width of Armour joint will be 170mm, if Width of a slab is 240mm then Width of Armour joint will be
210mm and so on.
Width of a slab is 200mm then Width of Armour joint will be 170mm, if Width of a slab is 240mm then Width of Armour joint will be
210mm and so on.
03
V-notches and pre-installed nails for ease of installation
04
Simple installation: easy sleeve installation, form removal the next day, and dowel insertion
|
Product Name
|
Armor-Edge Joint Edge protection systems for concrete flatwork
|
|
Base Material
|
Galvanized & Stainless Steel
|
|
Surface Treatment
|
Anodized; Polished
|
|
Application
|
Concrete Floor
|
|
ODM/OEM
|
Welcome
|
|
Sample
|
Free
|
|
Brand Name
|
Meishuo
|
|
Place of Origin
|
China
|
|
Warranty
|
5 Years
|
|
Package
|
PE Foam, Carton, Plywood Box
|
|
Payment Term
|
By T/T, 50% deposit, 50% balance
|
|
Departure Port
|
Shanghai, Ningbo, Qingdao, Yiwu, Guangzhou, or other ports
|
