Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Southeast
-
Model Number:
-
Quartz Disc
-
Product Name:
-

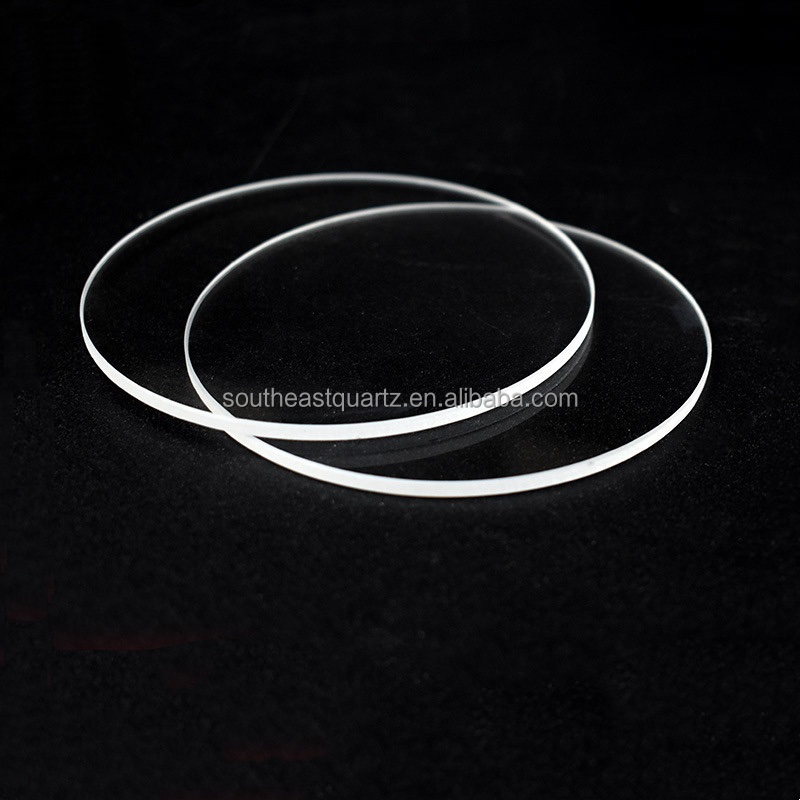

Quartz Disc
-
Material:
-
99.99% Pure Quartz
-
Density:
-
2.2g/cm3
-
Work temperature:
-
1100
-
Size:
-
Customer's
-
Package:
-
Carton
-
Softening Point:
-
1780C
-
Annealing point:
-
1250C
-
Processing:
-
Fire Polishing
-
Strain Point:
-
1100C
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Production of semiconductor
-
Thickness:
-
0.5-100mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Southeast
-
Model Number:
-
Quartz Disc
-
Product Name:
-
Quartz Disc
-
Material:
-
99.99% Pure Quartz
-
Density:
-
2.2g/cm3
-
Work temperature:
-
1100
-
Size:
-
Customer's
-
Package:
-
Carton
-
Softening Point:
-
1780C
-
Annealing point:
-
1250C
-
Processing:
-
Fire Polishing
-
Strain Point:
-
1100C
Product Description
Product performance
Material Properties of Transparent Quartz Glass:
High Durability
Good Transmittance
High Heat Resistance
Good Electrical Stability
High Corrosion Resistance
Good Thermal Conductivity
Low Thermal Expansion Coefficient
Clean and Environmental Protection
Good Electrical Insulation Performance
Good Transmittance
High Heat Resistance
Good Electrical Stability
High Corrosion Resistance
Good Thermal Conductivity
Low Thermal Expansion Coefficient
Clean and Environmental Protection
Good Electrical Insulation Performance
|
Mechenical Behavior
|
Standard Values
|
|
Density
|
2.2g/cm³
|
|
Compressive Strength
|
100Mpa
|
|
Young's Modulus
|
7200Mpa
|
|
Modulus of Rigidity
|
3100Mpa
|
|
Mohs Hardness
|
5.5~6.5
|
|
Transformation Point
|
1280℃
|
|
Softening Point
|
1780℃
|
|
Annealing Point
|
1250℃
|
|
Specific Heat(20~350℃)
|
670J/kg.℃
|
|
Thermal Conductivity(20℃)
|
1.4W/m.℃
|
|
Index of Refraction
|
1.4585
|
|
Thermal Processing Temperature
|
1750~2050℃
|
|
Short-term Use Temperature
|
1300℃
|
|
Long-term Use Temperature
|
1100℃
|
|
Material
|
Silicon Dioxide(Natural Quartz)
|
|
Surface
|
No Air Bubble, No Process
|
|
Strain
|
1270℃ Fused the Quartz Glass Brick
|
|
PPM
|
Controlled 10/20/100 PPM
|
|
Thickness
|
0.5mm~40mm
|
