Haotian laser 20w 30w 50w 60W 80W 100w split shape fiber laser marking machine

Haotian laser 20w 30w 50w 60W 80W 100w split shape fiber laser marking machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: Beijing JCZ

Place of Origin:: Shandong, China

Brand Name:: Haotian

Marking Head Brand:: Galo scaner

Weight (KG):: 55 KG

Marking Area:: 110x110mm(optional)

Core Components:: Laser source

Machine Type:: split shape fiber laser marking machine

Optional Area:: 70*70mm, 150*150mm, 200*200mm, 300*300mm

Laser Source:: Max/Raycus/JPT

Marking Speed:: 6000mm/s(depends on different version scanning head)

Lifetime:: 100,000 working hours

Applicable Materials:: steel, aluminum, brass, copper, tungsten, silver, gold, plastic

Full cover with electric door:: Yes

Laser Power:: 20W /30w/ 50w/60W/80W/100w (Optional)

After-sales Service Provided:: Online support

Quick Details

Working Accuracy:: 0.01mm

Graphic Format Supported:: PLT, DXF

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Control Software:: Beijing JCZ

Place of Origin:: Shandong, China

Brand Name:: Haotian

Marking Head Brand:: Galo scaner

Weight (KG):: 55 KG

Marking Area:: 110x110mm(optional)

Core Components:: Laser source

Machine Type:: split shape fiber laser marking machine

Optional Area:: 70*70mm, 150*150mm, 200*200mm, 300*300mm

Laser Source:: Max/Raycus/JPT

Marking Speed:: 6000mm/s(depends on different version scanning head)

Lifetime:: 100,000 working hours

Applicable Materials:: steel, aluminum, brass, copper, tungsten, silver, gold, plastic

Full cover with electric door:: Yes

Laser Power:: 20W /30w/ 50w/60W/80W/100w (Optional)

After-sales Service Provided:: Online support

Product Description

HT-20w 30w 50w 60W 80W 100w fiber laser marking machine

Fiber lasers are great for all metal substrates, and a handful of nonmetal materials such as plastics, ceramic & porcelain tile, leather and dark colored or dark painted wood. You can’t use a fiber laser with glass, crystal or light colored paper and wood materials because the wavelength of light isn’t absorbed well.

These machines are incredibly robust! They have a life cycle of up to 100k working hours with no need for a chiller or external cooling, no maintenance other than basic cleaning, and no parts to replace. They are incredibly fast, highly precise, and don’t have any consumable components, which makes them highly cost effective machines to work with!

We offer two different fiber laser types, Q-Switched and MOPA. Here’s the difference:Q-Switched are commonly referred to as Raycus or JPT Lasers, and come in 20, 30 & 50 watt variants. These are the most commonly used lasers in the laser community with the 50w version being our best seller due to its versatility. So if you are interested in working with colors in your metal engraving, you should note that while these are popular, they aren’t really geared toward that usage except when working with stainless steel. Stainless steel you’ll be able to engrave in various colors, but that will take some experimenting to do that repeatably and effectively on a regular basis.

MOPA lasers come in 30, 60, 80 & 100 watt variants. You will be able to engrave in color on stainless steel and titanium due to MOPA lasers having a wider frequency, but only those two substrates are capable of color work. That said, MOPA is ideal for engraving in both black & colors on those substrates, and can more easily engrave lighter color woods as well.

So that brings us to software options. We offer EZCAD 2 & EZCAD 3. If you are interested in using Lightburn for Fiber, you’ll need to let me know and we can work around that, but these are the EZCAD is the option we offer because it is still the most widely used and supported controlling software for fiber lasers. Deciding which software to get with your laser is as simple as asking two short questions: Do you want to engrave in color, and make 2.5D engravings (engravings with depth)? If the answer is yes to either or both, then you will need EZCAD 3, which will come with a specialized controller board and a dongle that will need to be plugged into the machine. If those functions aren’t necessarily part of your plan, then I’d recommend EZCAD 2.

Lastly, there’s the laser source that we need to cover. We offer Super, Max, Raycus & JPT sources, but I strongly recommend either the JPT or the Raycus for both reliability, and consistency. These are the two best brands in China with JPT being the slightly better of the two, and they can run either Q-Switched or MOPA machines. In truth, the biggest differences are power & depth capability in relation to the time it takes to complete an engraving. To put it simply: more power = deeper and faster engraving. Now with all of that being said, and I’m sorry…I know…it’s a lot, I can tell you that to make this simple, the 30w & 50w JPT machines are the most popular hands down. They are reasonably priced and highly capable. If you would like a 30w unit, I can ship one to you with a rotary attachment, and 2 lenses for $3,500 and that includes door to door air shipping. If you would rather go for more power (and thus, more capability), I’d be happy to send you a 50w unit, which will also include the rotary and 2 lenses for just $900 more. All of our machines include a 3 year warranty, as well as lifetime technical support with our engineers, and if the rare case occurs that finds you needing a part replaced, we’ll send you those replacement parts at no cost to you.

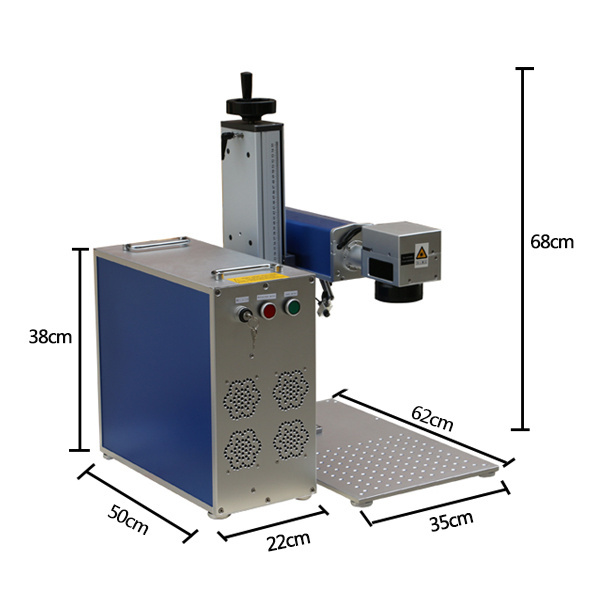

Model: HT-20/30/50/60/80/100		Machine Photo
Haotian Laser Spilt Ttype fiber marking machine
Main Configuration
EZCAD Controller&AMP; Software(original) F ixed high quality aluminum worktable Double Red Dot for Adjust the focus Foot Switch Working size: 110mm*110mm(can be optional) Laser Power: 20W/30W/50W/60W/80W/100W(Can be optional) 100% aluminum machine cover Taiwan MW power supply Sino brand SG7110(Dual red dots) scanning head
Accessories
Parts with the machine	U disk(for software/lens settings), power cable, USB cable, tools, foot switch, rotary(you can choose the size), one lens extra(you can choose the size), Quality safety glasses
Optional accessories	Cutting table/XY table and rotary
Detailed Parameters:
Effective Working Area	110mm*110mm(can be optional)
Laser Power	20W/30W/50W/60W/80W/100W(Can be optional)
Worktable	F ixed high quality aluminum worktable
Wave Length	1064nm
Laser Frequency	30-60KHZ for 20W Raycus, 40-60 KHZ for 30W Raycus(QS), 30-60KHZ for 30W Raycus(QB), 50-100KHZ for 50W Raycus(QB), 1-600KHZ for JPT LP and 1-4000KHZ for JPT Mopa.
Computer System	WINDOWS XP/Win7 /8/10 32/64bits(Mac supported if you use Lightburn software)
Minimum Character	0.15mm
Minimum Linear Width	0.01mm
Cooling way	Air Cooling
Maxi Marking Speed	6000mm/s(depends on different version scanning head)
Data Transfer:	USB2.0 transmission
Control System	EZCAD Controller
Graphic Format Supported:	AI, PLT, DXF(can not promise all files works)
Compatiable Software	EZCAD2(support Lightburn)
Total Power	500W ( AC220V 50Hz /AC110V 50Hz)
Package Weight/dimension	55KG
Package Size	760mm×540mm×540mm
