Quick Details
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Z10 for outdoor lighting, outdoor motion sensor
-
Model Number:
-
HNB178PIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
z10 sensor
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Z10 PIR motion sensor
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥8mA
-
Function:
-
dimming, daylight harvest, ble mesh
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and ble system
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 60℃.
Quick Details
-
Use:
-
lighting & lighting system
-
Series:
-
Z10
-
Features:
-
IP65
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Z10 for outdoor lighting, outdoor motion sensor
-
Model Number:
-
HNB178PIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
z10 sensor
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Z10 PIR motion sensor
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥8mA
-
Function:
-
dimming, daylight harvest, ble mesh
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and ble system
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 60℃.

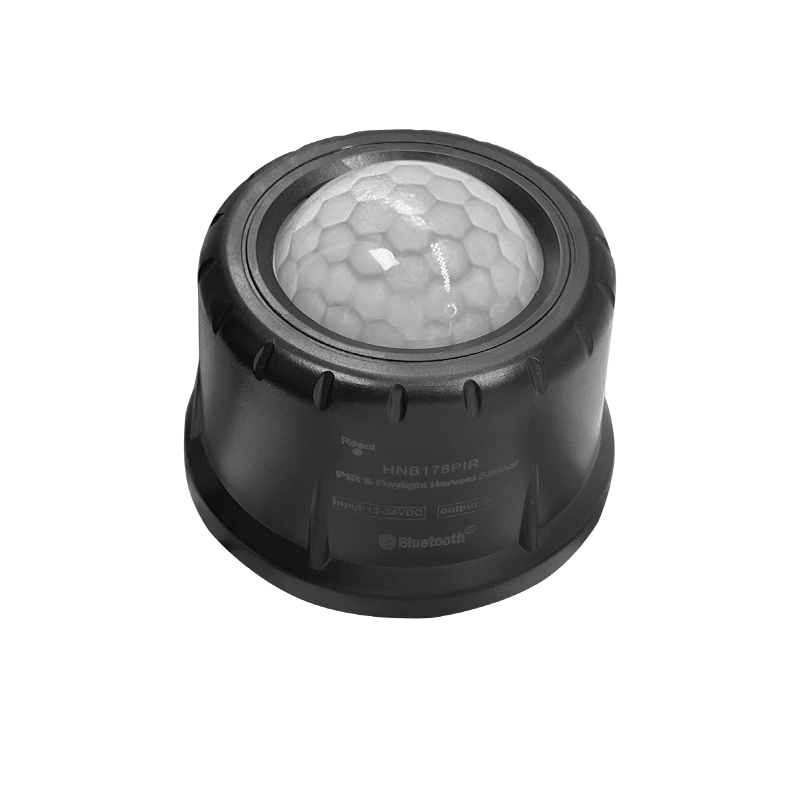

Model name: HNB178PIR Z10 standard version
SILVAIR Bluetooth mesh PIR
motion sensor
Quick detail of solar motion flood lights ble motion sensor HNB178PIR
1, 8mA input current, available for solar street lighting
2, Z10 international standard version IP65 for outdoor lighting
3, SILVAIR bluetooth mesh APP control, easy operation
3. Bluetooth mesh, PIR and daylight harvest 3 in 1
4.*0~10V output signal.
5, Super compact size(57mm only in diameter).
6, Intelligent photocell to measure and differentiate natural light from LED light.
Description of PIR motion sensor of outdoor lighting
HNB178PIR uses Z10 standard receptacle, 12V DC input, 0-10v dimming and daylight harvest function by SILVAIR bluetooth mesh APP control, high bay version max. 12m mounting height PIR motion sensor
Advantage of ip65 ble PIR motion sensor
This kind of model HNB178PIR is using Z10 standard socket, and if you own international standard Z10 socket, you can use our HNB178PIR or other models with different functions.
Quick detail of solar motion flood lights ble motion sensor HNB178PIR
1, 8mA input current, available for solar street lighting
2, Z10 international standard version IP65 for outdoor lighting
3, SILVAIR bluetooth mesh APP control, easy operation
3. Bluetooth mesh, PIR and daylight harvest 3 in 1
4.*0~10V output signal.
5, Super compact size(57mm only in diameter).
6, Intelligent photocell to measure and differentiate natural light from LED light.
Description of PIR motion sensor of outdoor lighting
HNB178PIR uses Z10 standard receptacle, 12V DC input, 0-10v dimming and daylight harvest function by SILVAIR bluetooth mesh APP control, high bay version max. 12m mounting height PIR motion sensor
Product information:
|
Type:
|
PIR, Daylight harvest and SILVAIR bluetooth mesh motion sensor
|
|
Input voltage:
|
12V DC-24V DC
|
|
Input current:
|
≥8mA
|
|
Detection range
|
max. 16-18m in diameter.
|
|
No.
|
Name
|
Desc.
|
Function
|
|
1
|
Microwave motion senor
|
1. HNS176HB
2. HNB176MW
|
1. 0-10V dimming MW + daylight monitoring by remote control
2. SILVAIR bluetooth mesh app control, 0-10v and daylight harvest
|
|
2
|
|
1. HNS177PIR
2. HNS178DHPIR
3. HNB178PIR
|
2. 0-10V dimming PIR + daylight harvest by remote control
3. SILVAIR bluetooth mesh app control , 0-10v and daylight harvest
|
|
3
|
Z10 receptacle
|
HN170
|
|
Product Description
Specification
|
Input voltage:
|
12 - 24V DC
|
|
Detection range :
|
up to max. 16~18m in diameter
|
|
Function:
|
Tri-level dimming and daylight harvest, SILVAIR bluetooth mesh app control
|
|
Mounting height:
|
max.12m
|
|
IR remote commissioning:
|
easy setting and user friendly.
|
|
Input current:
|
≥8mA
|
|
Operation temperature: .
|
-20 C ~ + 60 C
|
|
IP rating:
|
IP65
|
Application Scene：
Certification:
Packing & Delivery
box size: 45*30*23cm inner box: 30*23*20cm
