Quick Details
-
Weight:
-
500 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
yes
-
Application:
-
Water Wells Rock Drill Rig
-
After-sales Service Provided:
-
7x24h
-
Drilling method:
-
Mud Rotary Drilling
-
Max Drilling Depth:
-
120m Water
-
Drill rod length:
-
2.0m
-
Engine:
-
22HP Diesel Engine
-
Feature:
-
Hydraulic Controlling
-
Product name:
-
Drilling Machine
-
Drilling bit:
-
Diamond Bit
-
Model:
-
150
Quick Details
-
Place of Origin:
-
SHN
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
190*90*120
-
Weight:
-
500 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
yes
-
Application:
-
Water Wells Rock Drill Rig
-
After-sales Service Provided:
-
7x24h
-
Drilling method:
-
Mud Rotary Drilling
-
Max Drilling Depth:
-
120m Water
-
Drill rod length:
-
2.0m
-
Engine:
-
22HP Diesel Engine
-
Feature:
-
Hydraulic Controlling
-
Product name:
-
Drilling Machine
-
Drilling bit:
-
Diamond Bit
-
Model:
-
150
Product Overview

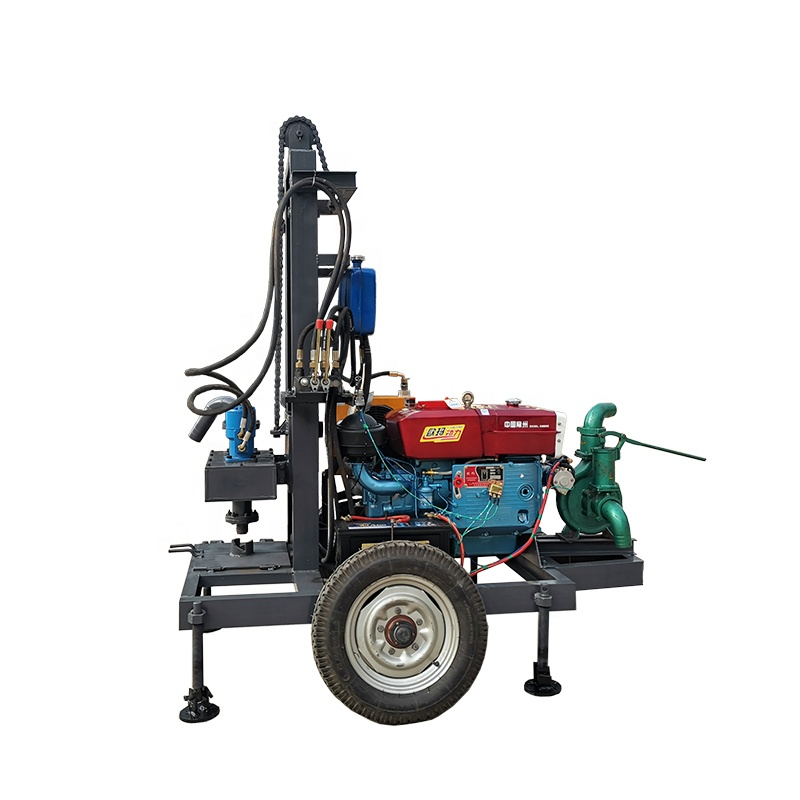

120m diesel hydraulic water well drilling rig
1. The drilling rig is a small hydraulic drilling rig, which is suitable for drilling wells in farms and homes.
2. The machine is suitable for soil layers with a small amount of rock. The maximum drilling depth is 120m, and the drilling diameter is 120- 400mm. Three-wing alloy drill bits are used for soil drilling, and PDC drill bits are used for rock drilling.
3. The machine comes standard with a clean water centrifugal pump as a mud pump, and customers can also prepare other large flow mud pumps for drilling.
4. Standard configuration 22 horsepower electric start diesel engine, easy to start the engine, saving time and effort.
5. The machine is compact and equipped with a two-wheel traction chassis as standard, which can be hauled to the well-drilling area by vehicles.
5. The machine is compact and equipped with a two-wheel traction chassis as standard, which can be hauled to the well-drilling area by vehicles.
FEATURES AT A GLANCE
Right elevation
Front
elevation
Left
elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Power
|
22hp
|
|
2
|
Drilling capacity
|
120m
|
|
3
|
Rotary ways
|
Mud pump
|
|
4
|
Drilling diameter
|
76-400mm
|
|
5
|
Drilling pipe length
|
1.5m/pcs
|
|
6
|
Weight
|
400kg
|
|
7
|
Vertical shaft forward speed
|
120r/min
|
|
8
|
Max. torque
|
1000N.m
|
