Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHONGWEI
-
Model Number:
-
PRJ15X
-
Size:
-
dia43mm
-
Weight:
-
4.05kg
-
Product name:
-
3D printing lens
-
Model No.:
-
PRJ15X
-
Minimum line width:
-
30μm
-
Magnification ratio:
-
15X
-
Image side numerical aperture:
-
0.24
-
Image side Maximum exposure diameter:
-
dia 645mm
-
Maximum supported size of SLM:
-
Dia 43mm
-
Operating wavelength:
-
405nm
-
Optical distortion:
-
0.1%
-
Effective working distance:
-
200.5mm
Quick Details
-
Use:
-
Optical
-
Structure:
-
combination
-
Shape:
-
cylindrical
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHONGWEI
-
Model Number:
-
PRJ15X
-
Size:
-
dia43mm
-
Weight:
-
4.05kg
-
Product name:
-
3D printing lens
-
Model No.:
-
PRJ15X
-
Minimum line width:
-
30μm
-
Magnification ratio:
-
15X
-
Image side numerical aperture:
-
0.24
-
Image side Maximum exposure diameter:
-
dia 645mm
-
Maximum supported size of SLM:
-
Dia 43mm
-
Operating wavelength:
-
405nm
-
Optical distortion:
-
0.1%
-
Effective working distance:
-
200.5mm
LIGHT CURABLE

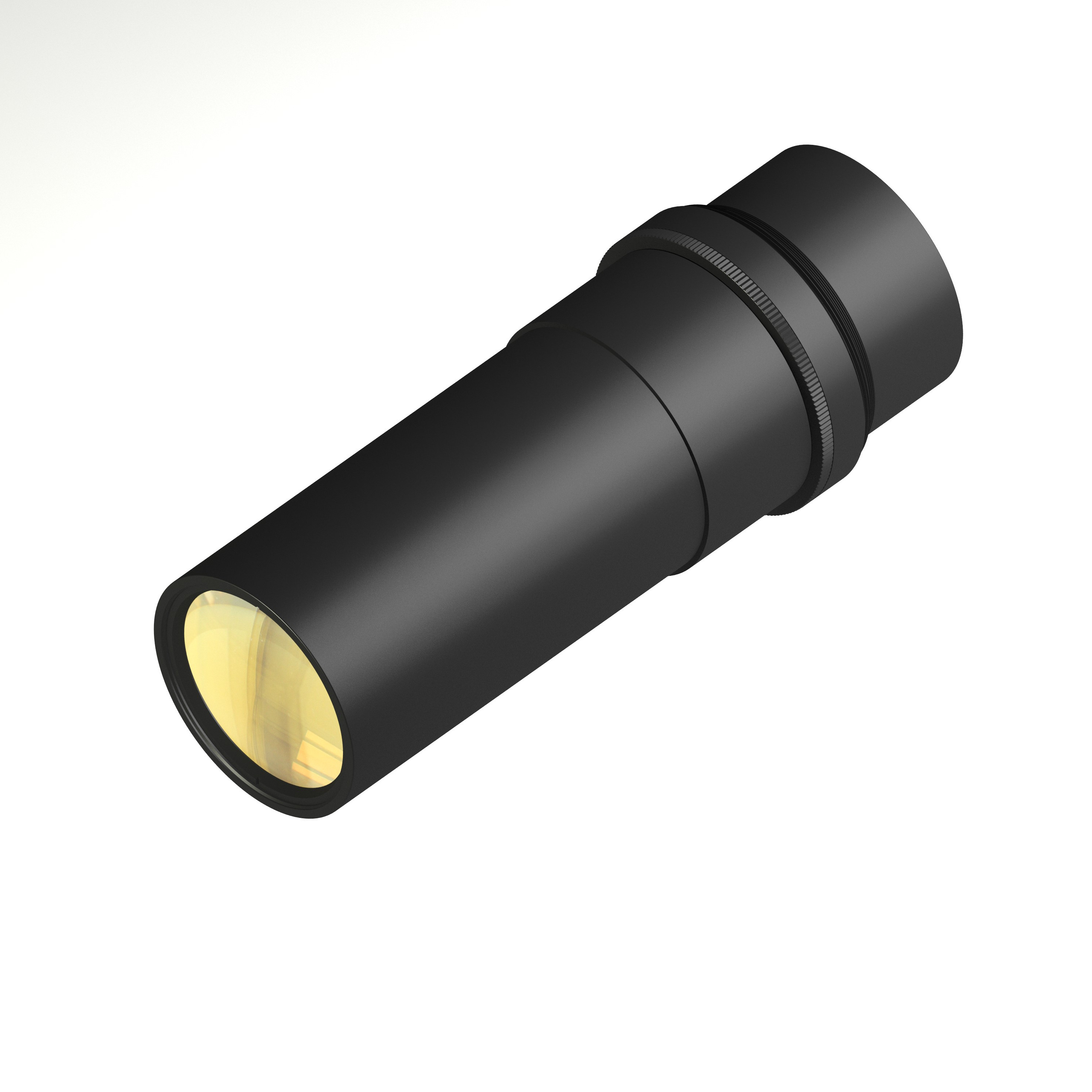

3D printing lens are projection lens working in the ultraviolet waveband. They sequentially project the dynamic images from the image generator (DLP or LCD) onto the surface of the photocuring adhesive. The adhesive is cured layer by layer to form the corresponding 3D shapes.
Features
▶
A
dopt telecentric optical design
▶
U
sing high transmittance optical glass
▶
H
igh resolution, low distortion and uniform imaging brightness
▶
High printing efficiency
▶
Different models with various printing magnification availble.
▶
Different operating wavelengths such as 365/385/405nm are available
Customization products
|
SPECIFICATION-
PRJ15X
|
|
|
|
|||
|
Minimum line width
|
30um
|
Compatibility with SLM
|
LCD/DLP
|
|||
|
Magnification ratio
|
15X
|
Object-image conjugate distance
|
620mm
|
|||
|
Numerical aperture on the image side
|
0.24
|
Total structure length
|
288.2mm
|
|||
|
Maximum exposure diameter on the image plane
|
φ645mm
|
Barrel diameter
|
102mm
|
|||
|
Maximum supported size of SLM (Spatial Light Modulator)
|
φ43mm
|
Weight
|
4.05 kg
|
|||
|
Working wavelength
|
365/385/405nm
|
Operating temperature
|
20-25℃
|
|||
|
Optical distortion
|
0.1%
|
Storage temperature
|
-10 ~ +50℃
|
|||
|
Effective working distance
|
200.5mm
|
|
|
|||
For other specifications pls contact sellers , we will design for you.
