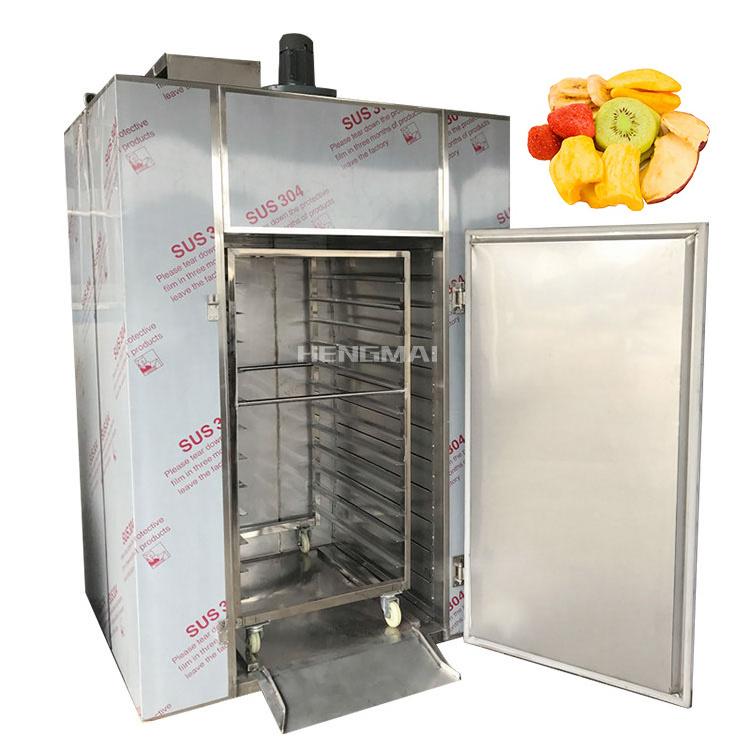

CT-C series hot ar circullation drying oven uses a ow noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system Is the tully enclosed to make that the heat efficiency of the drying oven increases from 3.7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50% .
The successtul design of CT-C hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad. In order to save a large quantity o the energy in out country, in order to enhance the economic results of the enterprises.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220-450V
-
Power:
-
8-60kw
-
Dimension(L*W*H):
-
240*225*235cm
-
Weight (KG):
-
800
-
Product name:
-
Industrial Fruit Dryers
-
Name:
-
Dryer Oven
-
Keywords:
-
Dryer Drying Machine
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Usage:
-
Drying Wet Raw Material
-
Feature:
-
High Efficiency Low Cost
-
Heating source:
-
Electricity Steam Oil Gas
-
Advantage:
-
Multifuctional
-
Product Type:
-
Hot Air Circulating Dryer
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
China
-
Brand Name:
-
Hengmai
-
Voltage:
-
220-450V
-
Power:
-
8-60kw
-
Dimension(L*W*H):
-
240*225*235cm
-
Weight (KG):
-
800
-
Product name:
-
Industrial Fruit Dryers
-
Name:
-
Dryer Oven
-
Keywords:
-
Dryer Drying Machine
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Usage:
-
Drying Wet Raw Material
-
Feature:
-
High Efficiency Low Cost
-
Heating source:
-
Electricity Steam Oil Gas
-
Advantage:
-
Multifuctional
-
Product Type:
-
Hot Air Circulating Dryer
Product Overview
Product Features
1. Most of the hot air circulates in the tank with high thermal efficiency and energy saving.
2. Using the forced ventilation, adjustable air plate is set in the box, and the material is dried evenly.
3. Wide selection of heat source, such as steam, hot water, electricity, far-infrared.
4. Low noise, balanced operation, automatic temperature control, convenient installation and maintenance.
5. Wide range of applications, drying series of other driers have their specific uses, such as dehydrated vegetables drying machine suitable for dehydration vegetables drying, and hot air drying oven can dry all kinds of materials, is a general drying equipment.
2. Using the forced ventilation, adjustable air plate is set in the box, and the material is dried evenly.
3. Wide selection of heat source, such as steam, hot water, electricity, far-infrared.
4. Low noise, balanced operation, automatic temperature control, convenient installation and maintenance.
5. Wide range of applications, drying series of other driers have their specific uses, such as dehydrated vegetables drying machine suitable for dehydration vegetables drying, and hot air drying oven can dry all kinds of materials, is a general drying equipment.
|
Model
|
Drying car
(pcs)
|
Drying plate
(pcs)
|
Door
(pcs)
|
Circulating fan
(pcs)
|
Dehumidification fan
(pcs)
|
Heating power (kw)
|
Dimension (cm)
|
Weight (kg)
|
Output (kg per batch)
|
|
CT-CO
|
1
|
24
|
1
|
1
|
1
|
12
|
140x125x235
|
500
|
72
|
|
CT-CI
|
2
|
48
|
2
|
1
|
1
|
18
|
240x125x235
|
780
|
144
|
|
CT-CII
|
4
|
96
|
2
|
2
|
1
|
30
|
240x225x235
|
1150
|
288
|
|
CT-CIII
|
6
|
144
|
3
|
3
|
1
|
48
|
340x225x235
|
1500
|
432
|
|
CT-CIV
|
8
|
192
|
4
|
4
|
2
|
60
|
460x225x235
|
2000
|
576
|
Applications
This drying oven is suitable for the material and product hot solidificationand dry de-watering in the chemical, food, farming, side-product, aquatic product, light industries, heavy industries andothers industries. Such as plaster, powdparticle, drinking agent, packing bottle, pigment, dyestuff, de -watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
