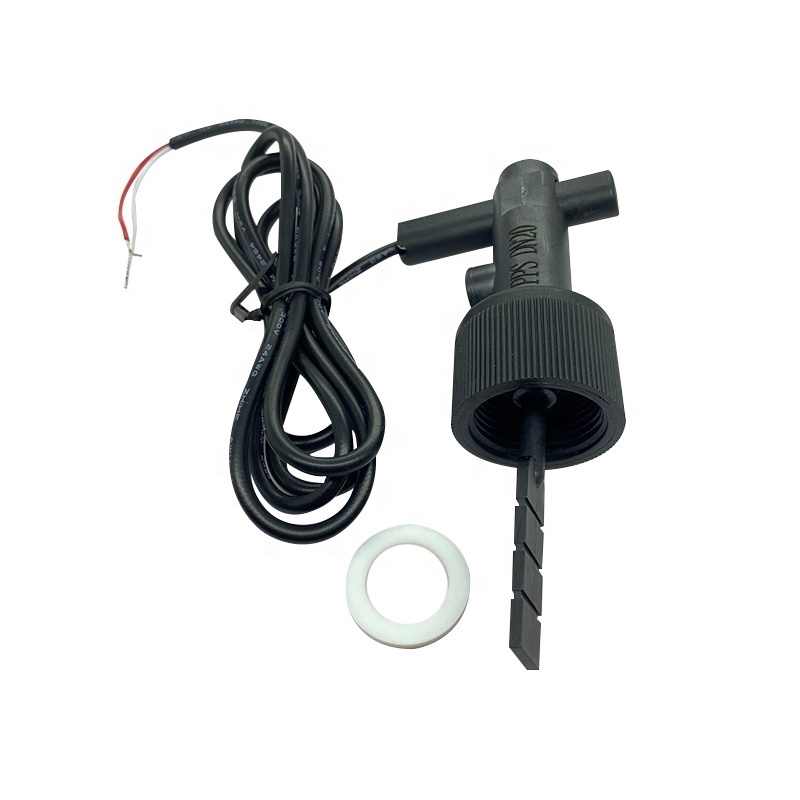

- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
vertical water flow switch
-
Description:
-
paddle control flow switches, liquid flow switch
-
Model Number:
-
SEN-BP43NT
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
reed flow switch
-
Output:
-
Switch Signal
-
Liquid Temperature:
-
-20-80 ℃
-
Working Pressure:
-
0.05-1.2Mpa
-
Switching Power:
-
220v, Normally Open (NO)
-
Insulated Resistor:
-
>100MΩ
-
Installation Way:
-
vertical
-
Line Specification and Install Direction:
-
Could be Customized
-
Connection:
-
G 3/4", Straight Structure
-
Cable material:
-
pp,1meter
-
Material:
-
Plastic Paddle Liquid Flow Switch
-
Application:
-
Swimming Pool Equipment
Quick Details
-
Use:
-
pump flow switch
-
Series:
-
reed flow switch
-
Features:
-
Plastic Flow Switches
-
Mounting Type:
-
vertical water flow switch
-
Description:
-
paddle control flow switches, liquid flow switch
-
Model Number:
-
SEN-BP43NT
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
reed flow switch
-
Output:
-
Switch Signal
-
Liquid Temperature:
-
-20-80 ℃
-
Working Pressure:
-
0.05-1.2Mpa
-
Switching Power:
-
220v, Normally Open (NO)
-
Insulated Resistor:
-
>100MΩ
-
Installation Way:
-
vertical
-
Line Specification and Install Direction:
-
Could be Customized
-
Connection:
-
G 3/4", Straight Structure
-
Cable material:
-
pp,1meter
-
Material:
-
Plastic Paddle Liquid Flow Switch
-
Application:
-
Swimming Pool Equipment
Product Description
|
Product Name
|
Dry reed water flow switch
|
|
|
|
|
||||
|
Material
|
Brass copper material
|
|
|
|
|
||||
|
Connection Size
|
G 3/4", DN20
|
|
|
|
|
||||
|
Flow Range
|
According to pipe diameter
|
|
|
|
|
||||
|
Contact Capacity
|
220V
|
|
|
|
|
||||
|
Introduction
|
Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.
|
|
|
|
|
||||
|
Fetures
|
Vertical installation, float up and down by the activities drive the permanent magnets with dry reed pipe the output signal switch
|
|
|
|
|
||||
|
Applications
|
It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.
|
|
|
|
|
||||
G3/4" Plastic Flow Switches Water Pump Interruptor De Flujo De Agua Magnetic Paddle Water Pump Flow Sensor Switch
Details Images
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
