Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Terek
-
Model Number:
-
LU-RTD-06
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
Air driven
-
Power Source:
-
Pneumatic pump
-
Outlet Size:
-
NPT1/4
-
Theory:
-
Reciprocating Pump
-
Pressure Source:
-
Terek gas booster pump
-
Material:
-
Stainless steel and Aluminum
-
Output pressure:
-
Pressure adjustable
Quick Details
-
Application:
-
Gas refilling industry, Aircraft oxygen filling industry, Nitrogen filling industry, Medical oxygen industry, Gas pressurization test industry, Gas compression industry, Pressurize various gas media
-
Pressure:
-
300 bar
-
Voltage:
-
Pneumatic
-
Warranty:
-
12 months
-
Brand Name:
-
Terek
-
Model Number:
-
LU-RTD-06
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
Air driven
-
Power Source:
-
Pneumatic pump
-
Outlet Size:
-
NPT1/4
-
Theory:
-
Reciprocating Pump
-
Pressure Source:
-
Terek gas booster pump
-
Material:
-
Stainless steel and Aluminum
-
Output pressure:
-
Pressure adjustable
Product Description
Pneumatic Refrigerant booster pump is a new type device designed and manufactured by our company. The structural design are compact. TEREK pump adopt aluminum alloy and stainless steel materials. The Refrigerant booster pump equipment is applicable to pressurizing and transfer Halon and Freon refrigerant medium and other refrigerants, and filling the agent into the fire extinguisher cylinder.
RTD series are single acting and single stage driven type. The driven piston diameter of this series is 160 mm.
The TEREK refrigerant booster equipment uses pure compressed air as the driving power source, refrigerant (R12, R22, R134a, R290, R407C, R410A, R500, R502, R600A etc ) booster pump as the pressure source, and HFC-227ea/FM200, HFC-125, Novec1230, HFC-236fa, Halon and Freon as the pressurized medium. The output pressure is proportional to the driving gas pressure.
By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will be automatically stops and the output gas pressure is stabilized at the preset pressure.
Therefore, it has the features of explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, light weight, simple operation, reliable performance and wide application range. Used for Refrigerant filling or atmospheric pressure refrigerant pressurization.
Product Parameters
Basically, the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating. The automatic reciprocating motion of the piston is controlled by a built-in four-way valve.TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.
Refer to Model Technical Parameters
|
Product name |
Pneumatic refrigerant booster pump pressurized transfer filling equipment |
|
Model |
LU-RTD- 06 |
|
Pressure ratio |
6:1 |
|
Medium |
HFC-227ea/FM200&Novec 1230 |
|
Drive air source pressure |
3-8 bar. |
|
Maximum outlet pressure |
48 bar |
|
When the driven air pressure is 5.0bar |
High pressure outlet pressure is 36bar/435psi. |
|
When the driven air pressure is 6.0bar |
High pressure outlet pressure is 36bar/522psi. |
|
Outlet pressure control unit |
Drive air regulator valve |
|
Pressure measurement accuracy |
0.4 pressure gauge |
|
Valves and piping |
High pressure needle valve and stainless steel piping |
|
Special sealing part |
Neoprene sealing fittings |
|
Export wooden case weight |
45 KG |
|
Equipment dimension |
550*450*570 mm |
|
Packing size |
610*510*600 mm |
|
Connection size (inch) gas outlet |
NPT1/2 Internal Thread |
|
Production time |
12-15 working days. |
System Configuration

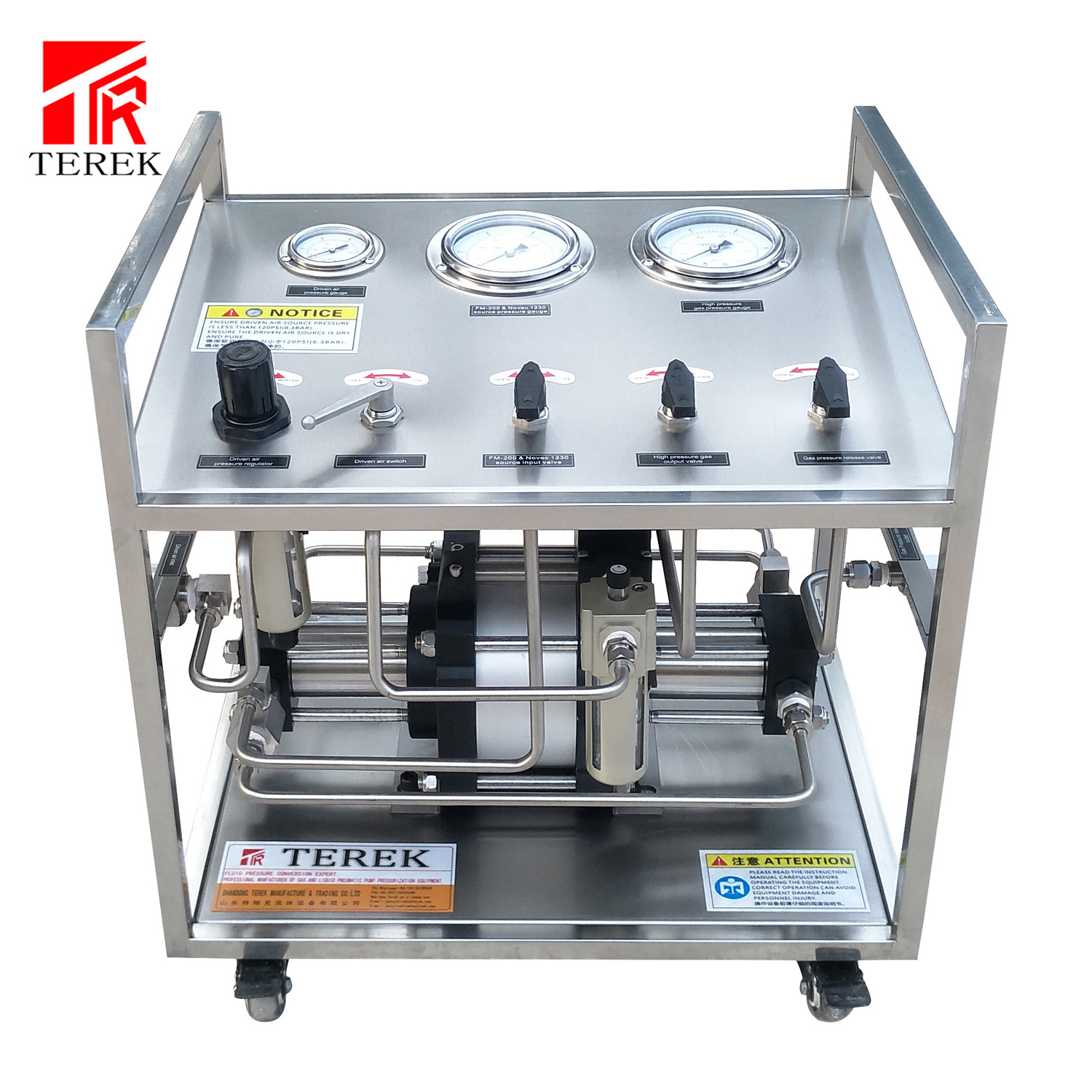

The Refrigerant pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, high quality sealing parts, air drive piston, pressurizing piston, silencer etc. RU-RTD series Refrigerant booster pump control equipment mainly includes: one sets of RTD series air-driven Refrigerant booster pump, air pressure gauge, air filter, Refrigerant inlet filter, pressure control valves, air pressure regulating valve, stainless pipelines, stainless steel frame, high pressure regulator valve, high pressure release valve etc.
In order to ensure the long-term use and stable working efficiency of the equipment, we provide a set of sealing accessories, repair kit, sealing tape, etc.
Detailed Images
Product Advantages
1. All pipes and fittings are made of stainless steel to ensure a long life.
2. The pump will stop working automatically when the output pressure reaches the preset value.
3. Maintain long working hours with no energy expenditure.
4. No dissipated heat during the pressure holding phase.
5. No risk for explosion and spark in oil and gas field.
6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.
7. The working pressure can be adjusted by adjusting the pressure of the driven air.
8. Easy to install, move, use and maintain.
Application Fields
It is used to pressurize and filling refrigerant medium, such as R12, R22, HFC 125 and HFC227ea, Halon and Freon, R134a, R290, R400, R407c, R410a, R500, R502, R600A etc.
High pressure outlet pressure up to 80 bar.
High pressure gas transfer, recover and filling.
The pump can be also used for the recovery and perfusion of new type environment-friendly refrigerant.
Packaging & Shipping
Our Services
1. We'd like to provide our professional advice regarding machines, materials, packing and market for this product.
2. We'd like to customize special machine according to customer's request.
3. We'd like to help our customers for booking ship as customer request.
5. Operation manual will be provided after shipment.
6. We provide one year warranty.
7. Free wearing parts will be sent together with the machine .
8. Working video of the machine will be sent to you accordingly to your need.
All equipment and accessories are guaranteed for one year. Our sales staff and technical department provide permanent technical advice and operation guidance. If you have any questions about the operation of the equipment, please turn off the air source and equipment, check the instructions in time or contact the sales and service personnel. Thanks.
