Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sumry
-
Model Number:
-
prowess mps inverters
-
Input Voltage:
-
12V/24V/48Vdc
-
Output Voltage:
-
220VAC
-
Output Current:
-
5~23A
-
Output Frequency:
-
50/60Hz
-
Size:
-
Depend
-
Weight:
-
13.5kg
-
solar controller:
-
MPPT
-
Feature:
-
Parallel function for 4kva and 5kva
-
AC charge current:
-
20A.30A, 60A
-
Display:
-
LED LCD DISPLAY
-
Output waveform:
-
Pure sine Wave
-
Function:
-
Solar Controller System
-
consumption(standby):
-
<2W
-
Power factor:
-
0.8-1
-
Certificate:
-
CE
-
warranty:
-
1year
Quick Details
-
Output Power:
-
800w to 4000w
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sumry
-
Model Number:
-
prowess mps inverters
-
Input Voltage:
-
12V/24V/48Vdc
-
Output Voltage:
-
220VAC
-
Output Current:
-
5~23A
-
Output Frequency:
-
50/60Hz
-
Size:
-
Depend
-
Weight:
-
13.5kg
-
solar controller:
-
MPPT
-
Feature:
-
Parallel function for 4kva and 5kva
-
AC charge current:
-
20A.30A, 60A
-
Display:
-
LED LCD DISPLAY
-
Output waveform:
-
Pure sine Wave
-
Function:
-
Solar Controller System
-
consumption(standby):
-
<2W
-
Power factor:
-
0.8-1
-
Certificate:
-
CE
-
warranty:
-
1year

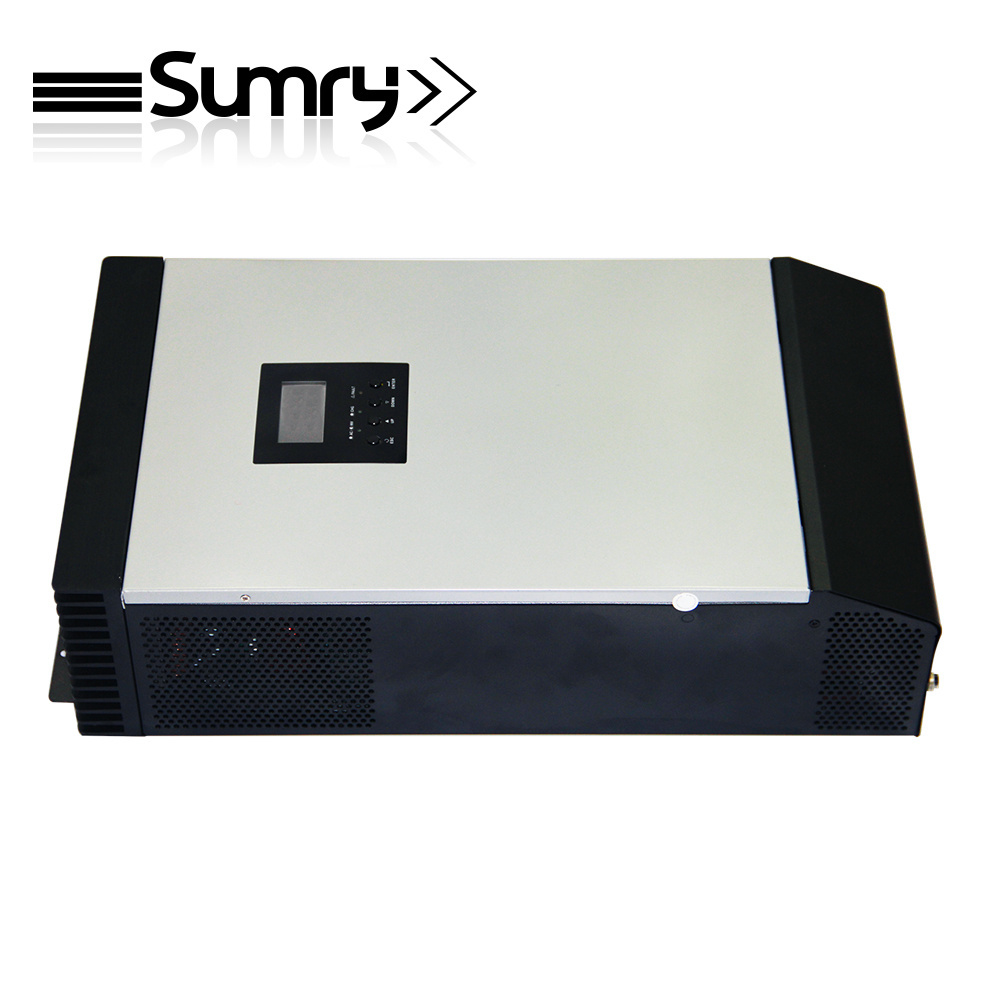

3kva 5kva 24/48 volt MPPT off grid solar inverter with battery charger
Product Features:
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for MPS4K and MPS 5K
•Connectting 3-6 pcs can also get 3 phase 380vac solar system
Product Specification:
| Model No. | MPS1KVA-24VDC | MPS2KVA-24VDC | MPS3KVA-24VDC | MPS3KVA-24VDC | MPS4KVA-48VDC | MPS5KVA-48VDC | |
| Rated power | 1000VA /800W | 2000VA /1600W | 3000VA /2400W | 3000VA /2400W | 4000VA /3200W | 5000VA /4000W | |
| Input | voltage | 230VAC | |||||
| selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | ||||||
| Frequency range | 50Hz/60Hz (auto sensing) | ||||||
| Output | AC voltage regulation (Batt.mode) | 230VAC±5% | |||||
| Surge power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA | |
| efficiency (peak) | 90%-93% | 93% | |||||
| transfer time | 10ms(for personal computers); 20ms (for home appliances) | ||||||
| waveform | pure sine wave | ||||||
| Battery& AC charger | battery voltage | 24VDC | 48VDC | ||||
| floating charge voltage | 27VDC | 54VDC | |||||
| overcharge protection | 31VDC | 62VDC | |||||
| maximum charge current | 10A/20A | 20A/30A | 2/10A 20A/30A 40A/50A/60A | ||||
| MAX PV array power | 600W | 1500W | 3000W | ||||
| MPPT range@ operating voltage | 30VDC-66VDC | 60VDC-115VDC | |||||
| maximum PV array open circuit voltage | 75VDC | 145VDC | |||||
| maximum charging current | 25A | 60A | |||||
| maximum efficiency | 98% | ||||||
| standby power consumpsion | 2W | ||||||
| Physical | Dimension, D*W*H(mm) | 128*272*355 | 140*295*479 | ||||
| Net weight (kgs) | 7.4 | 7.6 | 8 | 11 | 12.5 | 13.5 | |
| operating Environment | humidity | 5%-95% relative humidity ( non-condensing) | |||||
| operating temperature | 0℃-55℃ | ||||||
| storage temperature | -15℃-60℃ | ||||||
| Model | GPH-1024M | GPH-2024M | GPH-3024M | GPH-3024M | GPH-4048M | GPH-5048M | |
| inverter power | 800W | 1600W | 2400W | 2400W | 3200W | 4000W | |
| max generated from solar charger | 25Amp, 600W | 24Amp, 600W | 20Amp. 900W | 60Amp, 1500W | 60Amp, 3000W | 60Amp, 3000W | |
| best panel configuration | 500Wp (250Wp*2pcs) | 500Wp ( 250Wp*2pcs) | 500Wp ( 250Wp*2pcs) | 1500Wp ( 250Wp*6pcs) | 3000Wp (250Wp*12pcs) | 3000Wp (250Wp*12pcs) | |
