This equipment is suitable for Flat cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HH-1246
-
Type:
-
Packing and Wrapping Machine
-
Automatic Grade:
-
Automatic
-
Cable Range:
-
5mm-18mm
-
Motor:
-
Germany-Siemens
-
Inverter:
-
Siemens
-
Specification:
-
CE ISO
-
HS Code:
-
8479400000
-
Warranty:
-
12months
-
Transport Package:
-
Wood Package
Quick Details
-
Use:
-
Multifunctional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOOHA
-
Model Number:
-
HH-1246
-
Type:
-
Packing and Wrapping Machine
-
Automatic Grade:
-
Automatic
-
Cable Range:
-
5mm-18mm
-
Motor:
-
Germany-Siemens
-
Inverter:
-
Siemens
-
Specification:
-
CE ISO
-
HS Code:
-
8479400000
-
Warranty:
-
12months
-
Transport Package:
-
Wood Package
Product Description

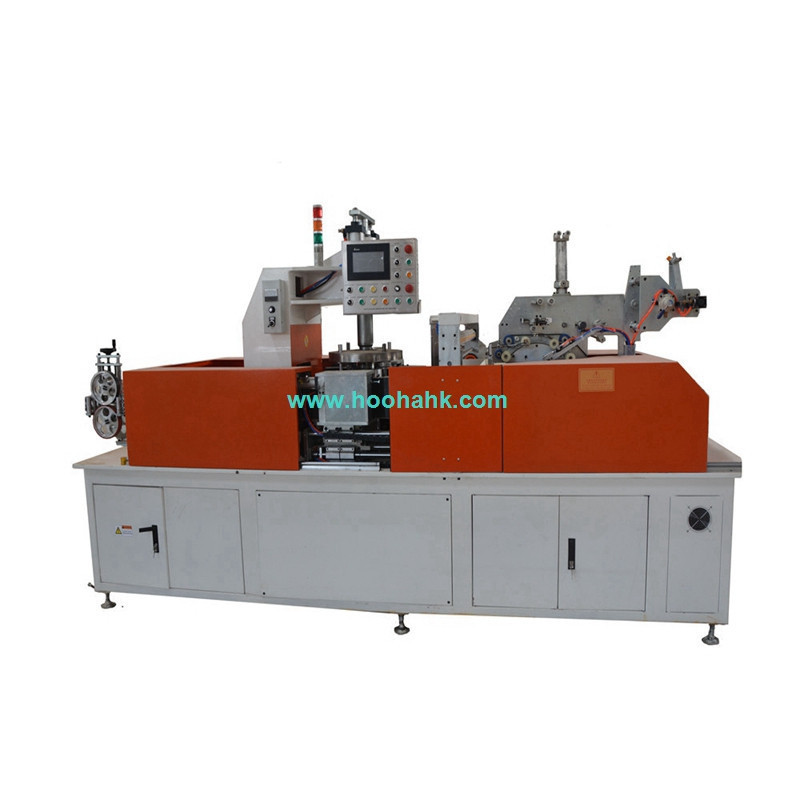

HH-C- PLC 1246 Automatic Coiling And Wrapping Machine For flat cable
Application:
Feature
The machine adopts a servo-motor arrangement system, which makes the wire
coils neat and beautiful. The touch screen human-machine interface operation
panel can store 99 different wire reel specifications, when changing the
specifications, you only need to read the stored data to produce.
Specification
Equipment Layout
|
Coiling Speed
|
930 RPM
|
|
Coiling Size
|
Outside max diameter is 460mm, height is 50-120mm,
Inner diameter is 140-200mm (can be customized) |
|
Dimension
|
L2421*W941*H1951mm
|
|
Power Supply
|
AC 380 V, three-phase, 50 HZ or customized
|
|
Operation Direction
|
Left or right side（Can be customized）
|
|
Packaged Coil Weight
|
MAX 1050kg
|
|
Arm Type
|
Pneumatic arm
|
|
Applicable Wire Range
|
Φ3-φ8mm （BV1.5-6mm²，BVR2.5-10mm²）
|
|
Air supply
|
Compressed air pressure 5-7kg/cm³
|
|
Holding arm transfer
|
Pneumatic cylinder type
|
|
Specification
|
CE ISO
|
|
HS Code
|
8479400000
|
|
Warranty
|
12 months
|
|
Transport Package
|
Wood Package
|
The wire samples
An automatic error detection function and a frequency spark machine contact point for spark detection of BV wire, which can automatically spark through the point or continue to form a loop after manual marking
