Tractor power: 25 ~ 60hp
Feeding type: Hydraulic feed / Mechanical feed
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Fistter
-
Dimension(L*W*H):
-
26"x72"x85"
-
Weight:
-
430 KG
-
Model:
-
WC-8 Hydraulic feed
-
Color:
-
red,blue,green,white,etc
-
Power:
-
25 ~ 55hp
-
Usage:
-
Branches Chipping
-
Capacity:
-
8 x 8 inch
-
Package:
-
Iron crate
-
Feeding system:
-
Hydraulic Feeding
-
Knives:
-
2pcs
-
Delivery time:
-
20days
Quick Details
-
Applicable Industries:
-
Forestry
-
Use:
-
Chipping wood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fistter
-
Dimension(L*W*H):
-
26"x72"x85"
-
Weight:
-
430 KG
-
Model:
-
WC-8 Hydraulic feed
-
Color:
-
red,blue,green,white,etc
-
Power:
-
25 ~ 55hp
-
Usage:
-
Branches Chipping
-
Capacity:
-
8 x 8 inch
-
Package:
-
Iron crate
-
Feeding system:
-
Hydraulic Feeding
-
Knives:
-
2pcs
-
Delivery time:
-
20days
Products Description
Applications

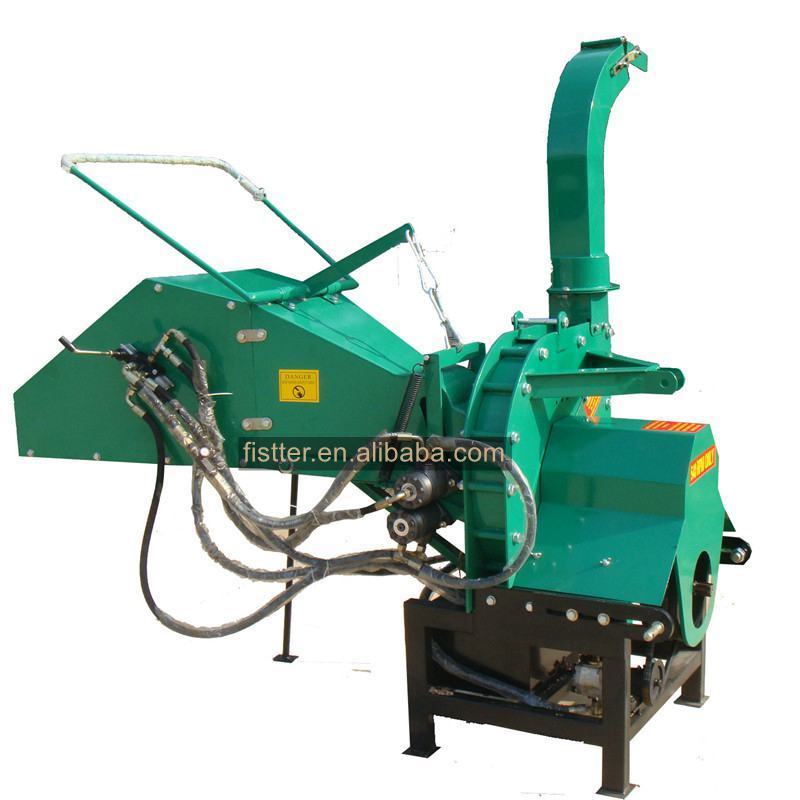

Fistter DWC200-series wood chippers are the perfect combination of size, weight, and features. Compact enough to easily move around, yet strong enough to get the tough jobs done. WC-series chippers are loaded with features typically found on much larger commercial machines that are much more expensive. The strength of our machines start with using heavy formed Q-235 structural steel plate; the strongest plate steel available. Each piece is CNC plasma cut, and meticulously welded.
Fistter DWC200-series chipper exclusive structural design includes a 2" diameter main shaft that passes through the flywheel housing and is supported by 3 bearings: 1 pillow block and 2 flange bearings. This feature, combined with the 2" shaft, allows the flywheel to run true and ads a great deal of strength. This design sets Fistter chippers far apart from the competition, and it is a design feature you should not overlook when shopping for chippers.
Fistter DWC200-series chipper exclusive structural design includes a 2" diameter main shaft that passes through the flywheel housing and is supported by 3 bearings: 1 pillow block and 2 flange bearings. This feature, combined with the 2" shaft, allows the flywheel to run true and ads a great deal of strength. This design sets Fistter chippers far apart from the competition, and it is a design feature you should not overlook when shopping for chippers.
8" capacity PTO wood chippers
Capacity: 220mm
Technological Parameters
|
Item
|
WC-8H
|
|
Power
|
25~60hp, 540rpm
|
|
Feeding system
|
Hydraulic Feed
|
|
Capacity
|
220mm
|
|
Dia. of rotor
|
660mm
|
|
Speed of rotor
|
1080rpm
|
|
No. of knives on rotor
|
3 hardened steel knives
|
|
chips size
|
thickness <4mm
|
|
Discharge chute
|
360 degree rotation
|
|
Weight
|
420kg
|
|
Working efficiency
|
7-9 cbm/h
|
|
Diesel tank
|
/
|
|
Hydraulic oil tank
|
38L
|
|
Free parts
|
2 pieces of knives
|
FAQ
FAQ
Q1: Can I put my brand name on the equipments instead of your brand name ?
A: Yes. Many dealers sell our products with their own brand name.Some have design modifications to meet their unique needs. We welcome OEM orders.
Q2: Are you factory?
A: Yes, " Fistter" is a manufacturer(factory).We have our own moulding and producing workshops, including laser cutting workshop, casting workshop, hardware workshop, robot welding workshop, shot blosting workshop and painting workshop. All things are controled by ourselves.
Q3: Do you accept sample order?
A: Yes, we accepet sample order. We understand that many clients need to get sample for quality check.
Q4: Do you have R&D departmemt?
A: Yes. We have a strong team of R&D From drawing to sample.
Q5: How long does it take for the ODM sample?
A: 7-14 days.
Q6: How long will it take for normal order?
A: 30-45 days upon down pavment.
Q7: Does your packaging pass drop test of E-commerce?
A: Yes. Our packaging passed drop test of E-commerce.
Q8: Do you have any MOQ limit?
A: Low MOQ, ONE pc for sample checking is available, and try order also is welcome.
Q9: Can I get a sole distribution right for one product in my country ?
A: It depends on actual conditiion. Please talk to our sales man for sure.
A: Yes. Many dealers sell our products with their own brand name.Some have design modifications to meet their unique needs. We welcome OEM orders.
Q2: Are you factory?
A: Yes, " Fistter" is a manufacturer(factory).We have our own moulding and producing workshops, including laser cutting workshop, casting workshop, hardware workshop, robot welding workshop, shot blosting workshop and painting workshop. All things are controled by ourselves.
Q3: Do you accept sample order?
A: Yes, we accepet sample order. We understand that many clients need to get sample for quality check.
Q4: Do you have R&D departmemt?
A: Yes. We have a strong team of R&D From drawing to sample.
Q5: How long does it take for the ODM sample?
A: 7-14 days.
Q6: How long will it take for normal order?
A: 30-45 days upon down pavment.
Q7: Does your packaging pass drop test of E-commerce?
A: Yes. Our packaging passed drop test of E-commerce.
Q8: Do you have any MOQ limit?
A: Low MOQ, ONE pc for sample checking is available, and try order also is welcome.
Q9: Can I get a sole distribution right for one product in my country ?
A: It depends on actual conditiion. Please talk to our sales man for sure.
