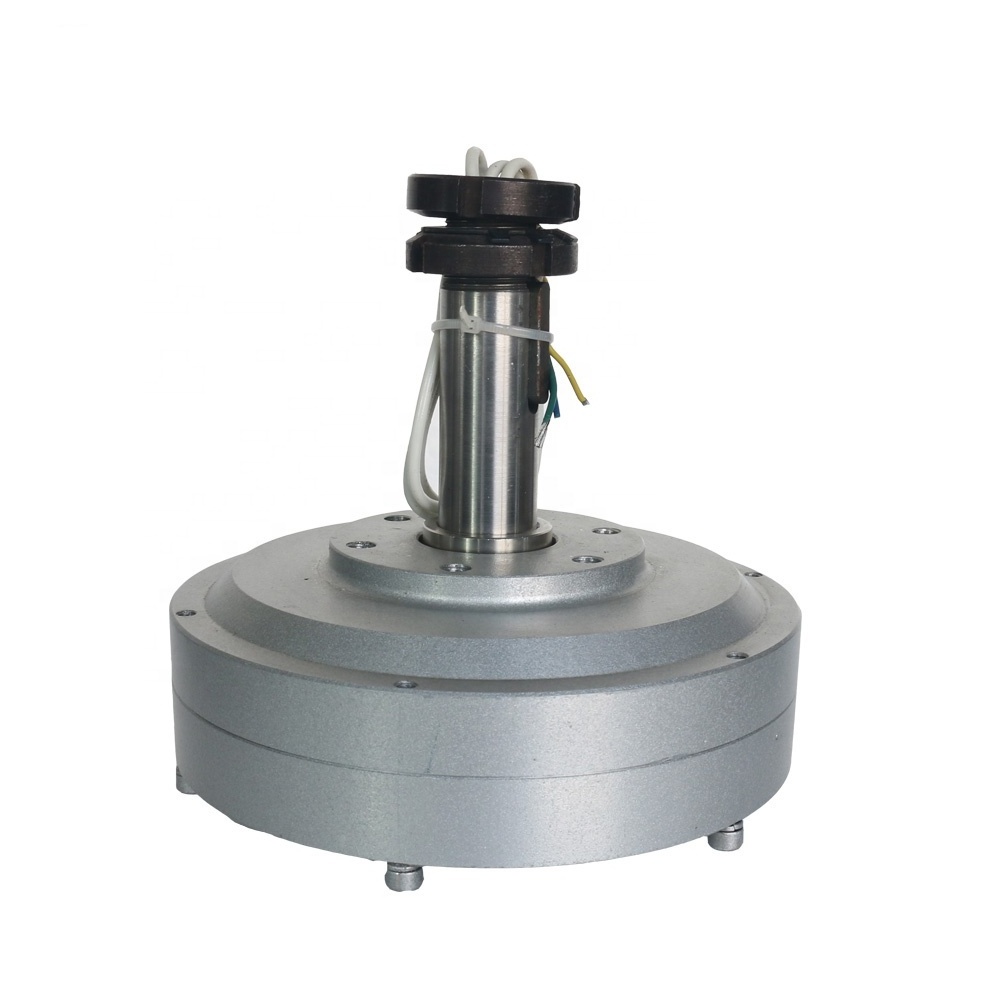

- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
FG-100-130
-
Warranty:
-
1 year
-
Certification:
-
CE ; ISO
-
Output Voltage:
-
12v 24v
-
Rated speed:
-
130rpm
-
Rated Current:
-
8.1A/4.1A
-
Efficiency:
-
>75%
-
Phase:
-
3 phase
-
Gen. Diameter:
-
260mm
-
Gen. Length:
-
192mm
-
Gen. Weight:
-
11kg
-
Shaft. Diameter:
-
30mm
Quick Details
-
Rated Power:
-
100w
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SH
-
Model Number:
-
FG-100-130
-
Warranty:
-
1 year
-
Certification:
-
CE ; ISO
-
Output Voltage:
-
12v 24v
-
Rated speed:
-
130rpm
-
Rated Current:
-
8.1A/4.1A
-
Efficiency:
-
>75%
-
Phase:
-
3 phase
-
Gen. Diameter:
-
260mm
-
Gen. Length:
-
192mm
-
Gen. Weight:
-
11kg
-
Shaft. Diameter:
-
30mm
Company brief
Products Description
|
Rated power
|
100w
|
100w
|
100w
|
100w
|
|||
|
Rated speed
|
130rpm
|
200rpm
|
300rpm
|
500rpm
|
|||
|
Rated voltage
|
12v/24v AC
|
12v/24v AC
|
12v/24v AC
|
12v/24v AC
|
|||
|
Rated Current
|
8.1A/4.1A
|
8.1A/4.1A
|
8.1A/4.1A
|
8.1A/4.1A
|
|||
|
Efficiency
|
>75%
|
>75%
|
>85%
|
>85%
|
|||
|
Resistance (Line-Line)
|
-
|
-
|
<1.6OΩ
|
<1.6OΩ
|
|||
|
Winding type
|
Y
|
|
|
|
|||
|
Insulation Resistance
|
100Mohm Min(500V DC)
|
|
|
|
|||
|
Leakage level
|
<5 ma
|
|
|
|
|||
|
Start torque
|
<0.1
|
|
|
|
|||
|
Phase
|
3 phase
|
|
|
|
|||
|
Structure
|
Outer Rotor
|
|
|
|
|||
|
Stator
|
Coreless
|
|
|
|
|||
|
Rotor
|
Permenent Magnet Generator(Outer Rotor)
|
|
|
|
|||
|
Gen. Diameter
|
260mm
|
230mm
|
196mm
|
162mm
|
|||
|
Gen. Length
|
192mm
|
192mm
|
193mm
|
169mm
|
|||
|
Gen. Weight
|
11kg
|
9kg
|
5.8kg
|
3.8kg
|
|||
|
Shaft. Diameter
|
30mm
|
30mm
|
25mm
|
25mm
|
|||
|
Housing Material
|
Aluminum(Alloy)
|
|
|
|
|||
|
Shaft Material
|
Stainless Steel
|
|
|
|
|||
|
Shaft material
|
Steel
|
|
|
|
|||
|
Bearings
|
Steel
|
|
|
|
|||
|
Housing material
|
Casting Iron
|
|
|
|
|||
|
Winding material
|
Copper
|
|
|
|
|||
|
Winding temperature level
|
180/span>
|
|
|
|
|||
|
Magnet
|
NdFeB
|
|
|
|
|||
|
Magnet temperature level
|
150/span>
|
|
|
|
|||
|
Core
|
High quality cold rolled silicon steel sheet
|
|
|
|
|||
Details Images
