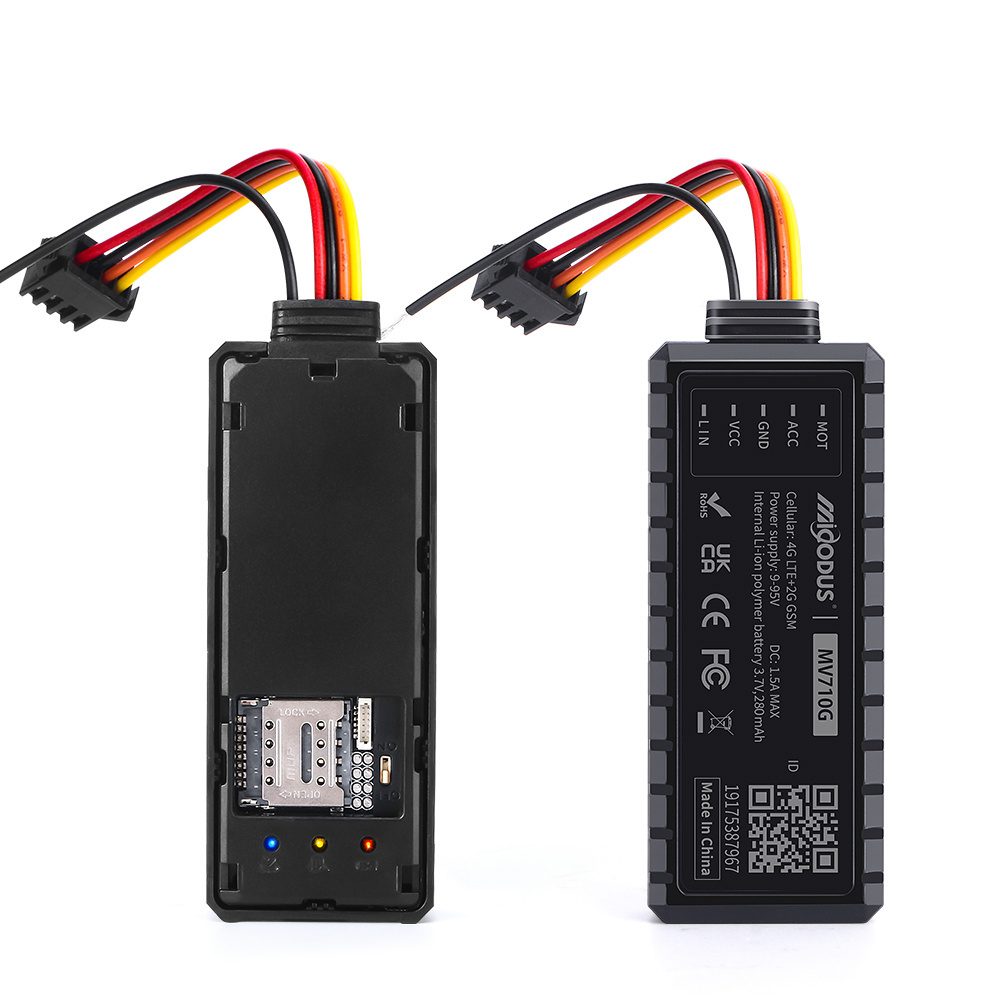

Anti Theft Car Gps Tracking Device MiCODUS MV710G 4G SIM Card Remote Start Stop Engine Vehicle Gps Tracker

Anti Theft Car Gps Tracking Device MiCODUS MV710G 4G SIM Card Remote Start Stop Engine Vehicle Gps Tracker

FOB Reference Price: Get Latest Price

≥2 Pieces

US $14

≥1000 Pieces

US $13.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

OS:: Android & IOS

Screen Type:: NONE

Combination:: Other

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: MiCODUS

Model Number:: MV710G

Car Make:: Universal

Size:: 79mm * 33mm * 16mm

Backup Battery:: 280mAh

Operating Voltage:: 9-90V DC

Weight:: 40g

Network:: 4G LTE-FDD+2 G GSM

GPS Sensitivity:: -162 dBm

Positioning Ways:: BDS+GPS+GLONASS+LBS

Special Feature:: Remote Control

Certificate:: CE ROHS

Tracking system:: www.micodus.net

Quick Details

Car Fitment:: Universal

Resolution:: NONE

Function:: Remote Control, Speed Warning, Geofence, Wheel Path Playback, ACC Detection, Engine start alarm, Cut off Fuel, street view, tow alarm, Street view, GPS Data Compensate By Cornering, GPS Data Supplementary Of Network Blind Area, Door Open Alarm, Detecting Door Status, Cut Off Oil Immediately, Cut Off oil Safely

OS:: Android & IOS

Screen Type:: NONE

Combination:: Other

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: MiCODUS

Model Number:: MV710G

Car Make:: Universal

Size:: 79mm * 33mm * 16mm

Backup Battery:: 280mAh

Operating Voltage:: 9-90V DC

Weight:: 40g

Network:: 4G LTE-FDD+2 G GSM

GPS Sensitivity:: -162 dBm

Positioning Ways:: BDS+GPS+GLONASS+LBS

Special Feature:: Remote Control

Certificate:: CE ROHS

Tracking system:: www.micodus.net

Products Description

Anti Theft Car Gps Tracking Device MiCODUS MV710G 4G SIM Card Remote Start Stop Engine Vehicle Gps Tracker

Main Features:

1. Network: 4G LTE FDD + 2G GSM
2. Mini Size and Easy to Hidden
3. BDS+GPS+GLONASS+LBS Positioning Ways.
4. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!
5. Door Status Detection and Door Open Alarm
6. Two Ways Cut Off The Fuel: Remotely Cut Off Immediately & Cut Off Safely
7. ACC Detection
8. Low Voltage Alarm
9. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Tow alarm, Overspeed Alarm.
10. Remotely Firmware OTA

11. GPS Data Compensate By Cornering
12.GPS Data Supplementary Of Network Blind Area
13. ONE YEAR FREE WEB TRACKING SOFTWARE AND MOBILE APP.
14. MiCODUS Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

Power Supply	External Battery
Working Voltage	DC 9V - 95V
Working Current	12V/average 35mA
Sleep Current	12V/average 10mA
Built-in Battery	280 mAh 3.7V polymer battery
Working Temperate	-20℃ - 75℃
Storage Temperatu re	-30℃ - 80℃
Working Humidity	10%-85% RH non-condensing
Communication mo dule brand/chip mo del	SIMCOM A7670SA
Network and Band s	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
Network and Band s		GSM/2G: 850/900/1800/1900MHz
SIM Type	Nano SIM Card
Antenna Type	FPC
Positioning Module	AT6558R
Positioning Type	BDS+GPS+GLONASS+LBS
Cold Start	Average 32s
Hot Start	Average 1s
Sensitivity	-162 dBm
Antenna Size	18mm * 18mm * 4mm
GPS Bands	L1:1575.42±1.023MHz
BDS Bands	B1:1561.098±2.046MHz
Channels	32
Accuracy	<10m（1σ）
ACC Detection	1
Dimensions	79mm * 33mm * 16mm

Wiring Instruction

NOTE: After installed SIM card correctly , it is very important to connect the tracker with external power no less than 12V for power supply before operation!

4G+2G Network

MV710G works with the latest 4G LTE CAT1 network, fast and stable, and backward compatible with 2G GSM network, applicable to all countries in the world

Wide voltage 9-90V DC

Wide voltage 9-90V DC, can be applied to various vehicles: cars, trucks, electric vehicles, motorcycles, bus etc.

Google Maps real-time positioning

Google Maps real-time positioning, the minimum data upload time interval is 5 seconds

Historical track playback

Historical track playback, our server can store data for up to 180 days

Remotely Fuel Cut Off And Resume

It can remotely cut off and restore the fuel circuit, which is suitable for vehicle theft or loss of control of the vehicle.

Door Status Detection

MV710G can detect the status of vehicle doors and monitor in real-time whether the doors are open or closed through the tracking platform.

Door Open Alarm

When the vehicle is parked, the GPS tracker will into auto arm state. lf someone opens the car door in the auto arm state, an illegal door opening alarm will be triggered.

Vehicle Battery Voltage Detecting

MV710G GPS tracker can detect vehicle battery's voltage, and with low voltage alarm function.

Auto Arm By ACC

Intelligent automatic arming and disarming according to ACC status, no manual operation required.

Multiple anti-theft alarm functions

Multiple anti-theft alarm functions: Vibration alarm, Displacement alarm, Engine start and flameout alarm, Geo-fence alarm, Power failure alarm, Tow alarm

Firmware OTA

Support firmware upgrading remotely, keep your device always be the latest version

Web Tracking Platform and Mobile APP

Free Micodus tracking system in the first year! Web server and both iOS and Android version APP are available!

1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). MiCODUS tracking platform support most GPS models.
7). Micodus platform can host unlimited quantity of gps tracking device.

www.micodus.net
APP: MiCODUS

1.What is your minimum order quantity?

A: 1pc.

2. Why the GPS tracker device is off-line?

A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.

3. Why can not monitor?

A: Because you didn't set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.

4. What is the applicable range of this product?

A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.

5. Can you do hardware/firmware customization?

A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.

6. How is quality control and warranty?

A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.

7. Why are your prices higher than other sellers?

A: We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing high-quality products for our customers .

8. Does your device have whereabouts safety hazards? A: Don't worry, when you log in for the first time, the system will ask you to change your password compulsorily. No one can view your device without your permission.

9. Can I add other brands of device to your tracking platform, or add your device to other brands' tracking platform? A: Generally, as long as the network protocol is compatible, the device can be added to the tracking platform.
