Quick Details
-
Working mode:
-
broad spectrum frequency hopping ( FHSS )
-
Radio frequency power:
-
0~30dBm software adjustable
-
Data interface:
-
USB
-
Card reading distance:
-
<0.1m
-
Card reading prompt:
-
Buzzer and LED
-
Antenna:
-
Built - in miniature circular polarization antenna
-
Power supply:
-
USB power supply for computer
-
Dimensions:
-
100mm*70mm*10mm
-
Net weight:
-
0.1kg
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Sinocard
-
Supportd protocols:
-
ISO18000-6B,ISO18000-6C(EPC GEN2)
-
Working mode:
-
broad spectrum frequency hopping ( FHSS )
-
Radio frequency power:
-
0~30dBm software adjustable
-
Data interface:
-
USB
-
Card reading distance:
-
<0.1m
-
Card reading prompt:
-
Buzzer and LED
-
Antenna:
-
Built - in miniature circular polarization antenna
-
Power supply:
-
USB power supply for computer
-
Dimensions:
-
100mm*70mm*10mm
-
Net weight:
-
0.1kg

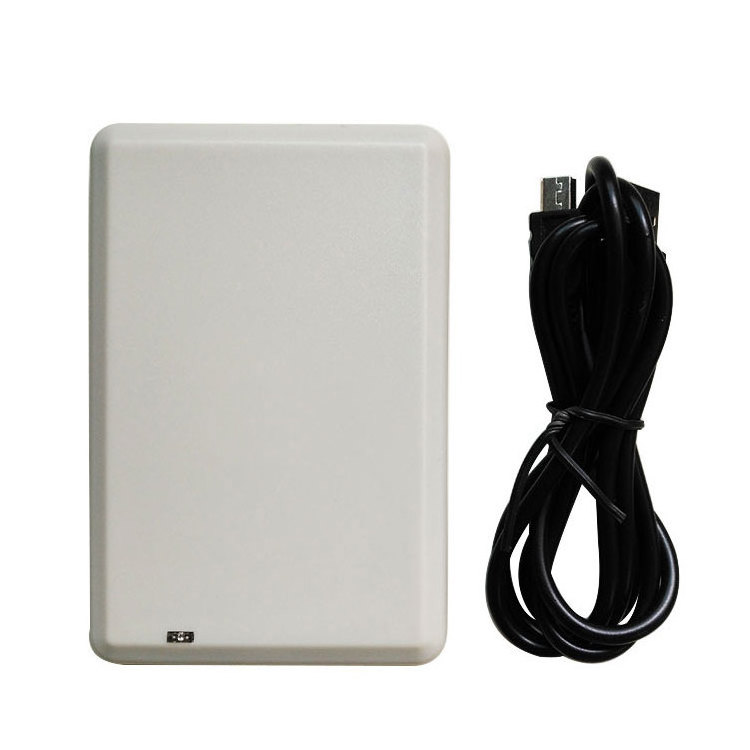

305 Portable USB Card Issuer UHF RFID Remote UHF Card Reader / Desktop Reader Card Issuer
UHF Reader
Product description:
TS - 305 is a portable USB card issuer, which has many advantages, such as multi-protocol compatibility, small size, fast speed, multi-tag reading and so on. it can authorize, report the loss and program the electronic tag. it has been widely used in various RFID application systems.
Product characteristics:
1. Built - in high performance antenna;
2. Compatible with international and domestic multi-protocol standards;
3. Broad - spectrum frequency hopping mode, with strong anti-interference ability;
4. Has label encryption function;
5. Support multiple language development, such as VC, VB, C#, etc.;
6. Simple USB interface, can be customized according to user needs.
Technical indicators:
| Type | TS-305 |
| Supportd protocols | ISO18000-6B,ISO18000-6C(EPC GEN2) |
| Work frequency | the standard configurations ISM 902 - 928 MHz and ISM 865 - 868 MHz are optional and other frequency bands can be customized |
| Working mode | broad spectrum frequency hopping ( FHSS ) |
| Radio frequency power | 0~30dBm software adjustable |
| Card reading speed | Set by the software, a single card reads less than 6 ms per 64 bits on average |
| Card reading mode | Automatic card reading and masteslave working card reading mode, set by the software |
| Data interface | USB |
| Card reading distance | <0.1m |
| Card reading prompt | Buzzer and LED |
| Antenna | Built - in miniature circular polarization antenna |
| Power supply | USB power supply for computer |
| Dimensions | 100mm*70mm*10mm |
| Net weight | 0.1kg |
| Working temperature | -20℃~+80℃ |
UHF Reader in Standard export carton case.
