Quick Details
-
Model Number:
-
4V230E-08
-
Brand Name:
-
JXPC or OEM
-
Products Name:
-

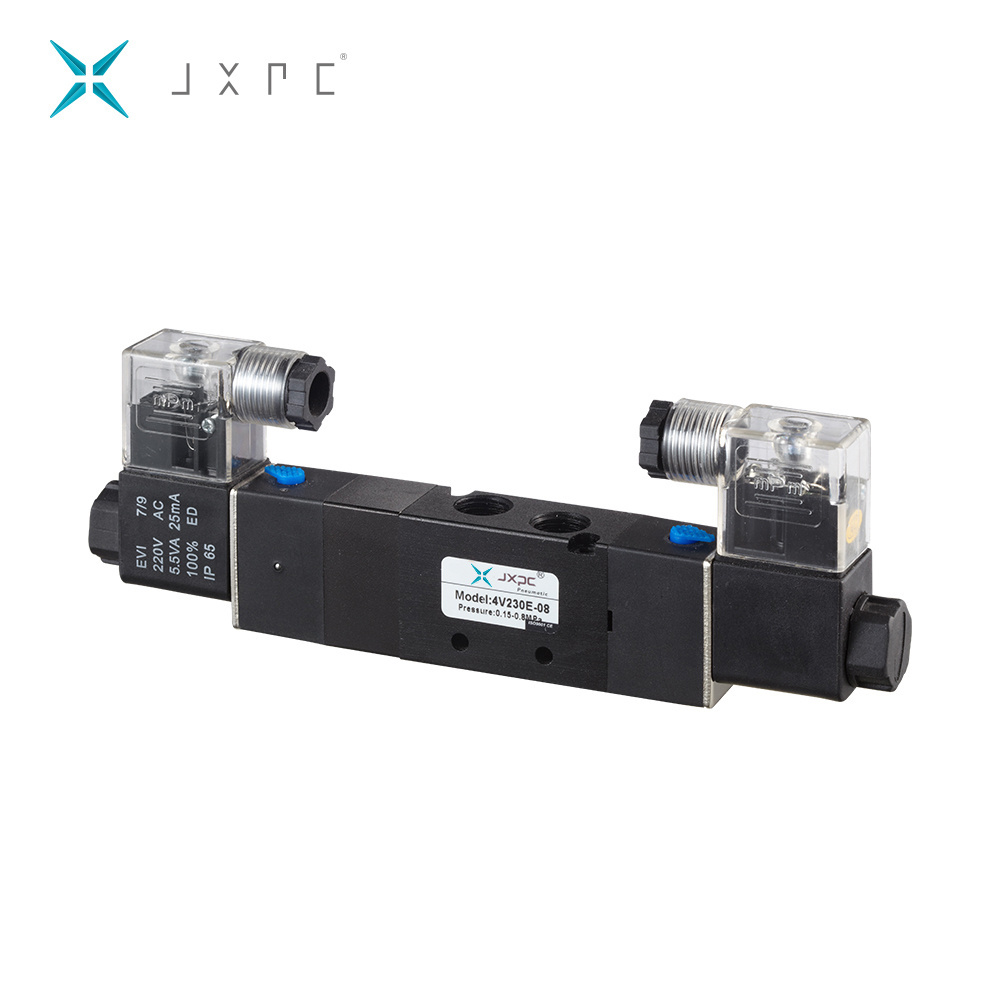

4V230E-08 Series Pneumatic Control Solenoid Valve
-
Position and Way:
-
Three-position Five-way
-
Effective Sectional Area:
-
12mm2(CV=0.67)
-
Acting Type:
-
Inner Guide Type
-
Max.Pressure Resisance:
-
1.2MPa
-
Voltage Range:
-
±10%
-
Power Consumption:
-
12V 24V 110V 220V 230V 380V or Custom
-
Insulation&Protection Class:
-
F Class.IP 65
-
Wiring Form:
-
Lead wire or Connector type
-
Max.Frequency:
-
5 Cycle/Secretary
Quick Details
-
Port Size:
-
G1/8",G1/4 ", G3/8"
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4V230E-08
-
Brand Name:
-
JXPC or OEM
-
Products Name:
-
4V230E-08 Series Pneumatic Control Solenoid Valve
-
Position and Way:
-
Three-position Five-way
-
Effective Sectional Area:
-
12mm2(CV=0.67)
-
Acting Type:
-
Inner Guide Type
-
Max.Pressure Resisance:
-
1.2MPa
-
Voltage Range:
-
±10%
-
Power Consumption:
-
12V 24V 110V 220V 230V 380V or Custom
-
Insulation&Protection Class:
-
F Class.IP 65
-
Wiring Form:
-
Lead wire or Connector type
-
Max.Frequency:
-
5 Cycle/Secretary
Product Description
- Product Name :Pneumatic Solenoid Valve
- Model : 4V230E-08
- Type : Three-position Five-way
-
Power Consumption:12V 24V 110V 220V 230V 380V or Custom
- Working Temperature Range: 5~50°C
- It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
- We have solenoids available in AC/DC and various size NPT threads as welll
| 4V200 Series Solenoid Valve,Pneumatic Control Valve | ||||||||||
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | ||||||
| Port Size | Air inlet=Air Outlet=Exhaust=G1/8" | Air inlet=Air Outlet=G1/4' Exhaust=G1/8" | ||||||||
| Working Medium | Air (40Micron Filtered) | |||||||||
| Acting Type | Inner Guide Type | |||||||||
| Working Pressure | 0.15~0.8MPa | |||||||||
| Max.Pressure Resisance | 1.2MPa | |||||||||
| Working Temperature | 5~50°C | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||
| Insulation&Protection Class | F Class.IP 65 | |||||||||
| Wiring Form | Lead wire or Connector type | |||||||||
| Max.Frequency | 5 Cycle/Secretary | |||||||||
| ShortestActivate Time | 0.05 Second | |||||||||
