Quick Details
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Shandong, China
-
Max. printing size:
-
460x345mm
-
Max. sheet size:
-
470x365mm
-
Plate size:
-
470x395x0.15mm
-
Blanket size:
-
470x420x1.95mm
-
Usable paper:
-
28-250gsm
-
Ink roller:
-
14pcs(3 forme inking rollers)
-
Dampening roller:
-
5pcs(2 forme dampening roller)
-
Printing speed:
-
2000-7000 sheets/hour
-
Main motor:
-
1.1kw
-
Air pump motor:
-
0. 55kw
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Double Sides
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Shandong, China
-
Max. printing size:
-
460x345mm
-
Max. sheet size:
-
470x365mm
-
Plate size:
-
470x395x0.15mm
-
Blanket size:
-
470x420x1.95mm
-
Usable paper:
-
28-250gsm
-
Ink roller:
-
14pcs(3 forme inking rollers)
-
Dampening roller:
-
5pcs(2 forme dampening roller)
-
Printing speed:
-
2000-7000 sheets/hour
-
Main motor:
-
1.1kw
-
Air pump motor:
-
0. 55kw
|
This machine has smart structure,practicable and economical.
It’s an advanced type on basic of Hamada machine.
It adopts two form ink rollers and one form dampening roller structure.
It can achieve single-color print, over print for 2 Colors,3 Colors,4 Colors.
It has the plate micro-adjustment function.
It’s easy to operate. (Pneumatic Press,Touching Screen is optional)
It adopts advanced PLC programmable controller |
|
ZR247IIDS H |

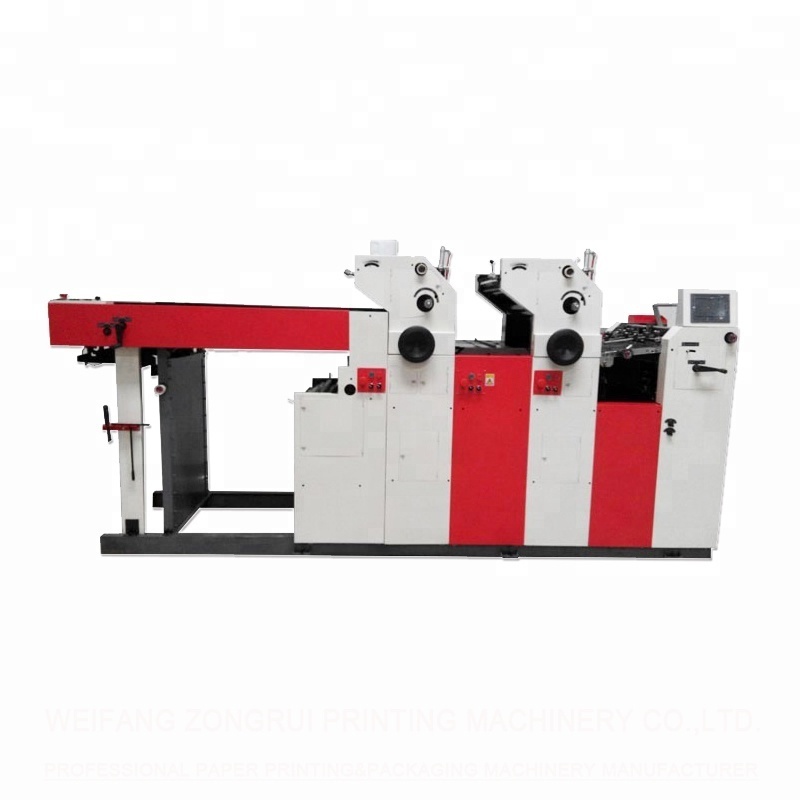

Machinery Printing Machine ZR247IIDSH Poster Flyer Printer Machine |
|
|
|
Model |
ZR247IIDS H |
|
|
Max sheet size |
470 x 365mm |
|
|
Max pring area |
450 x 345mm |
|
|
paper sheet weight |
28-250gsm |
|
|
printing speed |
2000-7500s/h |
|
|
plate size |
460 x 395 x 0.15mm |
|
|
blanket size |
470 x 465 x 1.95mm |
|
|
form roller number |
3 ink 2 dampenning |
|
|
overall power |
1.65kw |
|
|
voltage |
380(220)V/50Hz |
|
|
Machine dimension |
2980 x 900 x 1400mm |
|
|
Net weight |
1650kg |
|
|
Package dimension |
3110 x 1100 x 1570mm |
|
|
Gross weight |
1950kg |
|
Accurate orientation: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down. |
|
|
The latest control system: Using the most advanced control system of computer program and circuit board, that can improve production efficiency and also reduce the errors of printing. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward. |
|
|
Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. |
|
|
Automatic pause: the machine can be paused automatically when paper order is out of control, then automatic alarm, which can avoid waste paper. |
|
|
Centralized Lubricating oil supply: ( Optional ) use Auto system to control Lubricating oil for the important parts of machine which can improve the efficiency of machine. |
|
|
Presented counter: ( Optional ) This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically. |
|
|
Big Cylinder for paper transfers: (Optional) A new type for paper transfers between two units, it can achieve the tranfers one time than old type for 2 or 3 times. The advantage:transfers more stable, ink enough time to dry.
|
|
|
Pneumatic pressing:( Optional ) Adopt pneumatic pressing cylinder for each unit, making pressing automatically instead of traditional manual handles for water supply, ink supply and plate cylinder pressing. |
