Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
DEPUMP
-
Model Number:
-
DP-SS
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
3kw-315kw
-
Cable Length:
-
8m/10m/Customer Required
-
Outlet Size:
-
2inch-16inch
-
Power:
-
As customer request
-
Product name:
-
Electric submersible slurry pump
-
Color:
-
As customer's request
-
Material:
-
Cr27, stainless steel, cast iron
-
Max. Solid Size:
-
10-66mm
-
Discharge:
-
80-400mm
-
Application 1:
-
Dredging
-
Application 2:
-
Water Treatment
-
Application 3:
-
Mining
-
Application 4:
-
Irrigation
Quick Details
-
Application:
-
Industrial Utilities, wastewater treatment, Sand dredging
-
Pressure:
-
High Pressure
-
Voltage:
-
380V/400V/415V/440V/600V/1140V
-
Warranty:
-
1 year
-
Brand Name:
-
DEPUMP
-
Model Number:
-
DP-SS
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
3kw-315kw
-
Cable Length:
-
8m/10m/Customer Required
-
Outlet Size:
-
2inch-16inch
-
Power:
-
As customer request
-
Product name:
-
Electric submersible slurry pump
-
Color:
-
As customer's request
-
Material:
-
Cr27, stainless steel, cast iron
-
Max. Solid Size:
-
10-66mm
-
Discharge:
-
80-400mm
-
Application 1:
-
Dredging
-
Application 2:
-
Water Treatment
-
Application 3:
-
Mining
-
Application 4:
-
Irrigation
Products Description

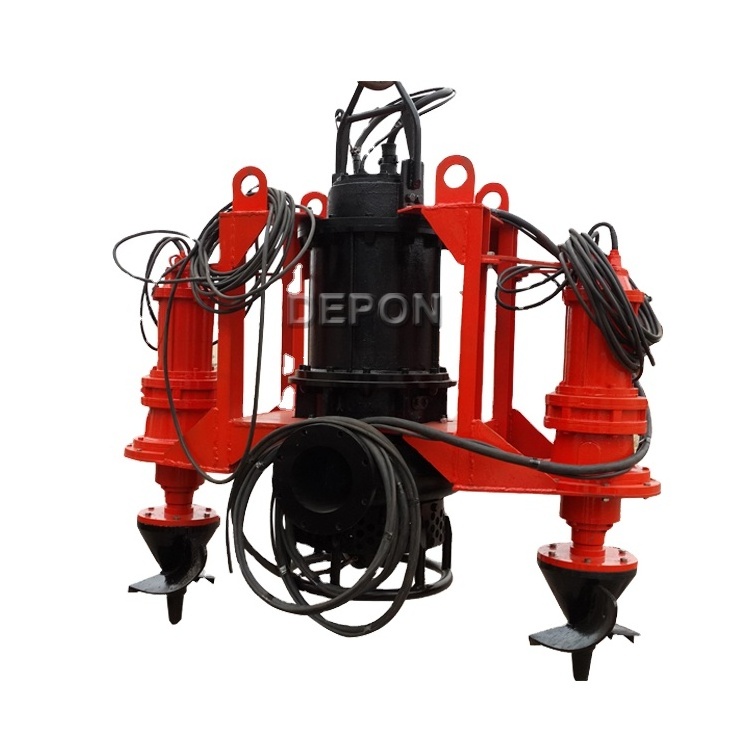

Submersible pump hydraulic submersible slurry pump
The
Depump®
SS series submersible slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal conder solid etc.. The pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc. It also can be applied to clear out sewage pool; in building site, steel wokrs and power station and so on, the pump adopts excllent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The hydraulic parts are wear-resistant. The pump is completed with control unit.
SS Type submersible dredging pump, wet ends and casing all in high chrome(A05) material.High abrasion resistance and corrosion resistance.
SS Pump could be install with agitators under customer
requirement. Agitators could be increase the amount of solids absorption. The set could be 2 or 3.
SS Pump could be driven by electric motor or hydraulic
power engine.
ONE-STOP SERVICE, we supply the whole hydraulic power
system, diesel engine, hydraulic pump, etc.
Details Images
Features
1 Submersible work without influence of suction head;
2 No assistant vacuum pump, save invest;
3 No noise, keep the silence of work station;
4 With agitator, no need extra stirring devices, more convenience for operating;
5 It need not build pump house.
6 Directly work on the surface of slurry, with higher efficiency to deliver slurry.
1 Submersible work without influence of suction head;
2 No assistant vacuum pump, save invest;
3 No noise, keep the silence of work station;
4 With agitator, no need extra stirring devices, more convenience for operating;
5 It need not build pump house.
6 Directly work on the surface of slurry, with higher efficiency to deliver slurry.
Product Paramenters
|
Model
|
Capacity
(m3/h)
|
Head (m)
|
Motor Power (kw)
|
Speed (RPM)
|
Max.solid
Dia.(mm)
|
|
SS30-30-7.5
|
30
|
30
|
7.5
|
2850
|
7
|
|
SS50-26-11
|
50
|
26
|
11
|
1460
|
21
|
|
SS50-30-11
|
50
|
30
|
11
|
1460
|
19
|
|
SS70-20-11
|
70
|
20
|
11
|
980
|
24
|
|
SS100-18-11
|
100
|
18
|
11
|
1460
|
21
|
|
SS25-40-11
|
25
|
40
|
11
|
1480
|
13
|
|
SS150-15-15
|
150
|
15
|
15
|
980
|
32
|
|
SS40-40-18.5
|
40
|
40
|
18.5
|
1480
|
13
|
|
SS100-25-18.5
|
100
|
25
|
18.5
|
980
|
24
|
|
SS38-45-18.5
|
38
|
45
|
18.5
|
980
|
13
|
|
SS60-34-18.5
|
60
|
34
|
18.5
|
970
|
13
|
|
SS90-30-18.5
|
90
|
30
|
18.5
|
980
|
24
|
|
SS150-22-22
|
150
|
22
|
22
|
950
|
31
|
|
SS200-15-22
|
200
|
15
|
22
|
950
|
44
|
|
SS60-46-22
|
60
|
46
|
22
|
980
|
13
|
|
SS100-35-30
|
100
|
35
|
30
|
980
|
34
|
|
SS150-30-30
|
150
|
30
|
30
|
980
|
35
|
|
SS240-20-30
|
240
|
20
|
30
|
980
|
40
|
|
SS100-50-37
|
100
|
50
|
37
|
1480
|
24
|
|
SS140-40-37
|
140
|
40
|
37
|
1480
|
24
|
|
SS300-20-37
|
300
|
20
|
37
|
980
|
69
|
