Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Silica Glass Sheet
-
Model Number:
-
JGS1 Silica Glass Sheet
-
Max Size:
-
1000mm*2000mm
-
Material:
-
JGS1,JGS2,JGS3
-
Edge::
-
Polishing/Grind
-
Purity:
-
99.99%
-
Working Tempreature:
-
≥ 1000°C
-
Surface Quality:
-
40/20 60/40 80/50
-
Dimension tolerence:
-
+/-0.01 - +/-0.2mm
-
key word:
-
Silica Glass Sheet
-
key word1:
-
JGS1 Silica Sheet
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Semiconductor, Printer
-
Thickness:
-
0.5-100mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Silica Glass Sheet
-
Model Number:
-
JGS1 Silica Glass Sheet
-
Max Size:
-
1000mm*2000mm
-
Material:
-
JGS1,JGS2,JGS3
-
Edge::
-
Polishing/Grind
-
Purity:
-
99.99%
-
Working Tempreature:
-
≥ 1000°C
-
Surface Quality:
-
40/20 60/40 80/50
-
Dimension tolerence:
-
+/-0.01 - +/-0.2mm
-
key word:
-
Silica Glass Sheet
-
key word1:
-
JGS1 Silica Sheet
Further processing of
JGS1 Silica Glass Sheet
We can do edge flame polishing, optical polishing, grind, general polishing, two sides polishing, one side polishing and the other side grind. In a word, we can process as your requirement.
Heat resistant temperature:1200 degree C

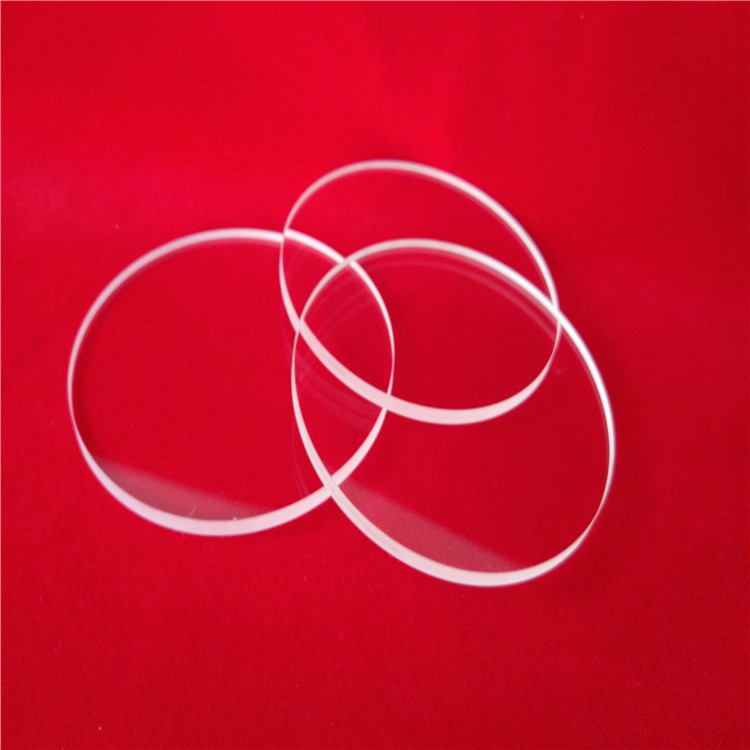

1. Size and shape of
JGS1 Silica Sheet:
The thickness:0.5-50mm
JGS1 Silica Glass Sheet: 10-500mm diameter,Silica Glass Sheet MAX Size:1000mm×2000mm(square)
Round, Square, Rectangular and Various shapes available
Used for window material,mask substrate or heat insulation,optics,electronics,medical treatment,laser industries ect.
2.Main product:
We supply all kind quartz product, containing:clear quartz tube, red quartz tube, opaque quartz tube, gold coated quartz tube , quartz substrate, quartz rings and all kinds quartz labware. If you need any of them, please contact us for free.
3.Material
1.JGS1( High-purity UV optical quartz glass)
JGS1 optical quartz glass plate is a very good kind of light transmission glass, because it nearly has no any air-bubbles in glass. At 185nm wavelength, the UV transmission can be up to 90%. JGS1 is generally used in the range of 185-2500nm wavelength.
2.JGS2 (UV quartz glass)
JGS2 quartz glass plate has little air-bubbles in glass, and is generally used as heat-resistant glass. If used as optical glass, its transmission wavelength is 220-2500nm.
3.JGS3 (Infrared quartz glass)
It has a good performance of infrared light transmission with a transmittance of over 85%. It is recommended for applications in the wavelength range of 260-3500nm.
|
Purity
|
Total Impurities, including Al, Fe, Ca, Mg, Ti, Cu, Ni,Co, Mn, k, Na, Li, B<35ppm
|
|
|
Annealing Point Strain Point Softening Point Melting Point Expansion Index
|
|
|
1120°C 1210°C 1570°C 1730°C 5.5×10-7/°C
|
|
|
Short-term Long-term
|
|
|
1300°C 1100°C
|
|
|
Rigidity Modulus Density Mohs Hardness Young`s Modulus Compression Strength Poisson Ratio Elongation Strengtn
|
|
|
3.1×104Mpa 2.2/cm3 6 7.2×104Mpa >1.1×103Mpa 0.17 48Mpa
|
RISEN is one of the leading high quality quartz glass and precise ceramics manufactuer supplier in China. include: alumina ceramics, zirconia ceramics,cordierite ceramics ,steatite ceramics and etc. The main category includes wearable ceramics,electrical ceramics,textile ceramics, heating ceramics,honeycomb ceramics and so on.With the advantages of high wearable, high strength and good insulation, our products are widely used in the fields of mechanical ,electronics, chemical ,textile, aeronautic and other fields.
Packing
1. Special logistics packaging 2. Suitable carton size
3. Shock bubble film 4.Professional placement
5. Professional shock 6. Complete package
Delivery:
Different packing methods according to different products, or we can use customized packing.
1.Q: How can I get some samples of JGS1 Silica Glass Sheet?
A: If have sample in stock, we can offer it free. However, you need to afford the freight charge. If it is need to be customized, we will charge you some fees without profit.
2.Q: How can I place the order to you?
A: You can contact us by TradeManage and send the inquiry through Alibaba.Also can place the order on line or through Aliexpress are all ok.
3.Q: How can I pay for you?
A: T/T, L/C, West Union and Aliexpress credit card payment.
4.Q:How to protect my product?
A:We have more than 10years export experience and have received high recognition and praise from our customers.We have many skilled workers and they know how to protect the product. During the 10 years, there's no breaking.
5. Q: How to send the product to me?
A: By ocean, air or by express.
6. Q: Can you offer door to door service?
A: We have much experience in door to door service and price is competitive.
7.Q:Which certificates do you provide?
A:ISO, RoHS and CE certificates.
