- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Vapcell
-
Model Number:
-
INR14500 650mah 7A button top
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
22g
-
Electric Energy:
-
2.4 Wh
-
Type:
-
button top
-
Size:
-
14.0*49.0mm
-
Typical Capacity:
-
650mAh (0.2C discharge)
-
Min capacity:
-
600mAh (0.2C discharge)
-
Nominal voltage:
-
3.60V
-
Max Continuous Discharge Current:
-
7A
-
End-of-charge voltage:
-
4.20V
-
End-of-discharge Voltage:
-
2.5V
-
Internal resistance:
-
25mΩ ( Appr)(AC 1kHz)
-
Standard Charge:
-
500mA,CCCV 100mA cut-off
Quick Details
-
Storage Type:
-
dry
-
Anode Material:
-
Other
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs
-
Brand Name:
-
Vapcell
-
Model Number:
-
INR14500 650mah 7A button top
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
22g
-
Electric Energy:
-
2.4 Wh
-
Type:
-
button top
-
Size:
-
14.0*49.0mm
-
Typical Capacity:
-
650mAh (0.2C discharge)
-
Min capacity:
-
600mAh (0.2C discharge)
-
Nominal voltage:
-
3.60V
-
Max Continuous Discharge Current:
-
7A
-
End-of-charge voltage:
-
4.20V
-
End-of-discharge Voltage:
-
2.5V
-
Internal resistance:
-
25mΩ ( Appr)(AC 1kHz)
-
Standard Charge:
-
500mA,CCCV 100mA cut-off
Factory Price Vapcell INR14500 650mah 7A button top 3.6v Rechargeable 14500 li ion battery Battery for flashlight
Products Description
|
Model
|
Vapcell INR14500 650mah 7A button top
|
|
Size
|
14.0*49.0mm
|
|
Nominal voltage
|
3.60V
|
|
End-of-charge voltage
|
4.20V
|
|
End-of-discharge Voltage
|
2.50v
|
|
Typical Capacity
|
650mAh (0.2C discharge)
|
|
Min capacity
|
600mAh (0.2C discharge)
|
|
Weight
|
22g
|
|
Internal resistance
|
25mΩ （AC 1KHz）
|
|
Standard Charge
|
500mA,CCCV 100mA cut-off
|
|
Quick Charge Current
|
1000mA
|
|
Max Continuous Discharge Current
|
7A
|
|
Cycle life
|
1.5C discharge/ 70 % DOD, ≥1000 cycles
|
|
Operating Temperature
|
Charging, 0°C ~ 45°C
|
|
|
Discharging, -20°C~70°C
|
|
Storage Temperature
|
-5°C~35°C
|
|
Storage Humidity
|
≤75%RH
|
|
Appearance
|
Without scratch,distorion,contamination,
|
|
|
and leakage
|
|
Standard environmental condition
|
Temperature: 23±5°C
|
|
|
Humidity: 45-75%RH
|
|
|
Atmospheric Pressure :86-106KPA
|

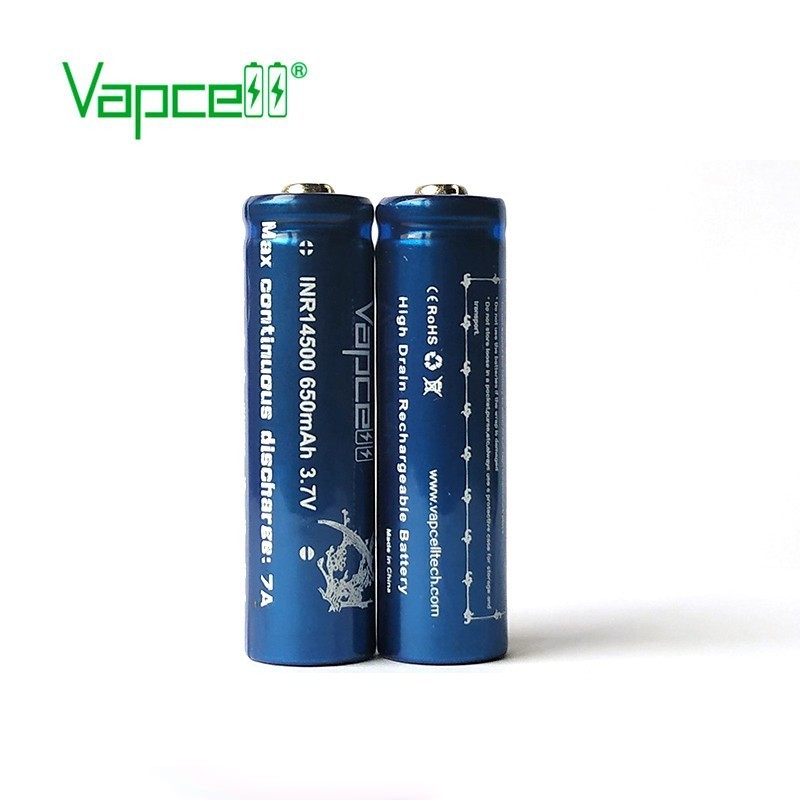

Real picture:
