Quick Details
-
Brand Name:
-
Zongshen
-
Place of Origin:
-
Chongqing, China
-
Size:
-
3440*1295*1770mm
-
Product name:
-

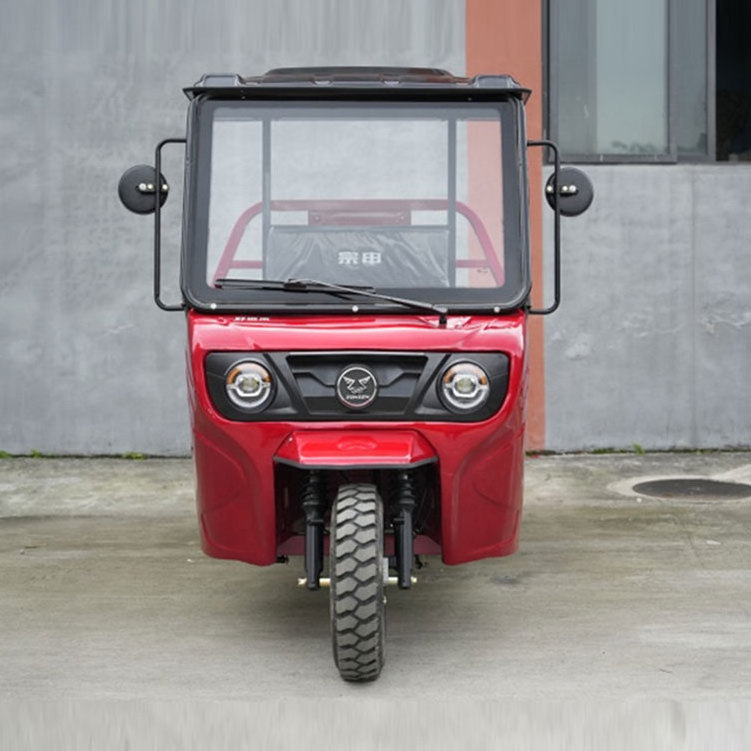

Tipper Cargo Motor Tricycle
-
Model Name:
-
ZS150ZH-43
-
Engine type:
-
CG150cc-175cc JINGBA/200cc JINQIN
-
Cylinder Arrangement:
-
Single Cylinder
-
Bore*Stroke (mm):
-
62*49.5
-
Piston Displacement (cc):
-
150/175/200
-
Max. Loading Capacity (Kg):
-
500
-
Battery:
-
12V28A
-
Max. Speed:
-
60 km/h
Quick Details
-
Power:
-
251 - 350W
-
Voltage:
-
12V
-
Displacement:
-
151 - 200cc
-
Brand Name:
-
Zongshen
-
Place of Origin:
-
Chongqing, China
-
Size:
-
3440*1295*1770mm
-
Product name:
-
Tipper Cargo Motor Tricycle
-
Model Name:
-
ZS150ZH-43
-
Engine type:
-
CG150cc-175cc JINGBA/200cc JINQIN
-
Cylinder Arrangement:
-
Single Cylinder
-
Bore*Stroke (mm):
-
62*49.5
-
Piston Displacement (cc):
-
150/175/200
-
Max. Loading Capacity (Kg):
-
500
-
Battery:
-
12V28A
-
Max. Speed:
-
60 km/h
We are one of the largest dealer of Zongshen.
Zongshen is a well-known motorcycle and engine manufacturer in China, headquartered in Chongqing. Founded in 1992, the factory mainly focuses on the design, production and sales of motorcycles, electric vehicles and related parts.
Please Click " Send Inquiry " or " Contact Supplier ”or " Chat Now ” for Further Information. We Will Update You Latest Price And Catalogues.
Product Parameter
| Model Name | ZS150ZH-43 |
| Cylinder Arrangement | Single Cylinder |
| Bore×Stroke (mm) | 62*49.5 |
| Piston Displacement (cc) | 150/175/200 |
| Lubrication Method | Pressure and splash |
| Maximum Power(kw/r/min) | 8.8/8500; |
| Maximum Torque(N.m./rpm) | 14.2/6000 |
| Transmission System | shaft drive with reverse gear |
| Starter System | electric & kick start |
| Gear System | Forward cycle 5 gears ( 1-0-2-3-4-5) + Reverse gear |
| Minimum Fuel Consumption(g/Kw.h) | ≤354 |
| Net weight(kg) | 435 |
| Clutch method | Manual wet multi-plate |
| L×W×H (mm) | 3440*1295*1770,3440*1235*1770 |
| wheel base (mm) | 2140 |
| Ground Clearance (mm) | 190 |
| Brake (Front/Rear) | front & rear drum brake |
| Wheel | Aluminum wheel |
| Tyre, Front | 5.00-12ULT(4.50-12ULT) |
| Tyre, Rear | 5.00-12ULT (4.50-12ULT) |
| Cargo box | 1600mm x 1100mX300MM |
| Fuel tank | 14.2L |
| Battery | 12V28A |
| Max. Loading Capacity (Kg) | 500 |
| Max. Speed | 60 km/h |
