- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KeGan
-
Model Number:
-
KG16
-
Material:
-
Stainless Steel, Stainless Steel
-
Measurement Range:
-
0~3.5MPa
-
Accuracy:
-
≤0.5%FS
-
Power:
-
24V±20%
-
Output:
-
4~20mA/RS485
-
Overload Capacity:
-
150%
-
Lead:
-
Hermanns/M12/Cable
-
Ambient Temperature:
-
-10℃-80℃
-
Relative Humidity:
-
≤80%
-
Measuring Medium:
-
Liquid: Water, Fuel,Petroleum,Gas,Oil ,Tank
Quick Details
-
Warranty:
-
1 Year
-
Type:
-
Differential Pressure Transmitter
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
KeGan
-
Model Number:
-
KG16
-
Material:
-
Stainless Steel, Stainless Steel
-
Measurement Range:
-
0~3.5MPa
-
Accuracy:
-
≤0.5%FS
-
Power:
-
24V±20%
-
Output:
-
4~20mA/RS485
-
Overload Capacity:
-
150%
-
Lead:
-
Hermanns/M12/Cable
-
Ambient Temperature:
-
-10℃-80℃
-
Relative Humidity:
-
≤80%
-
Measuring Medium:
-
Liquid: Water, Fuel,Petroleum,Gas,Oil ,Tank
Specification
|
Product Name
|

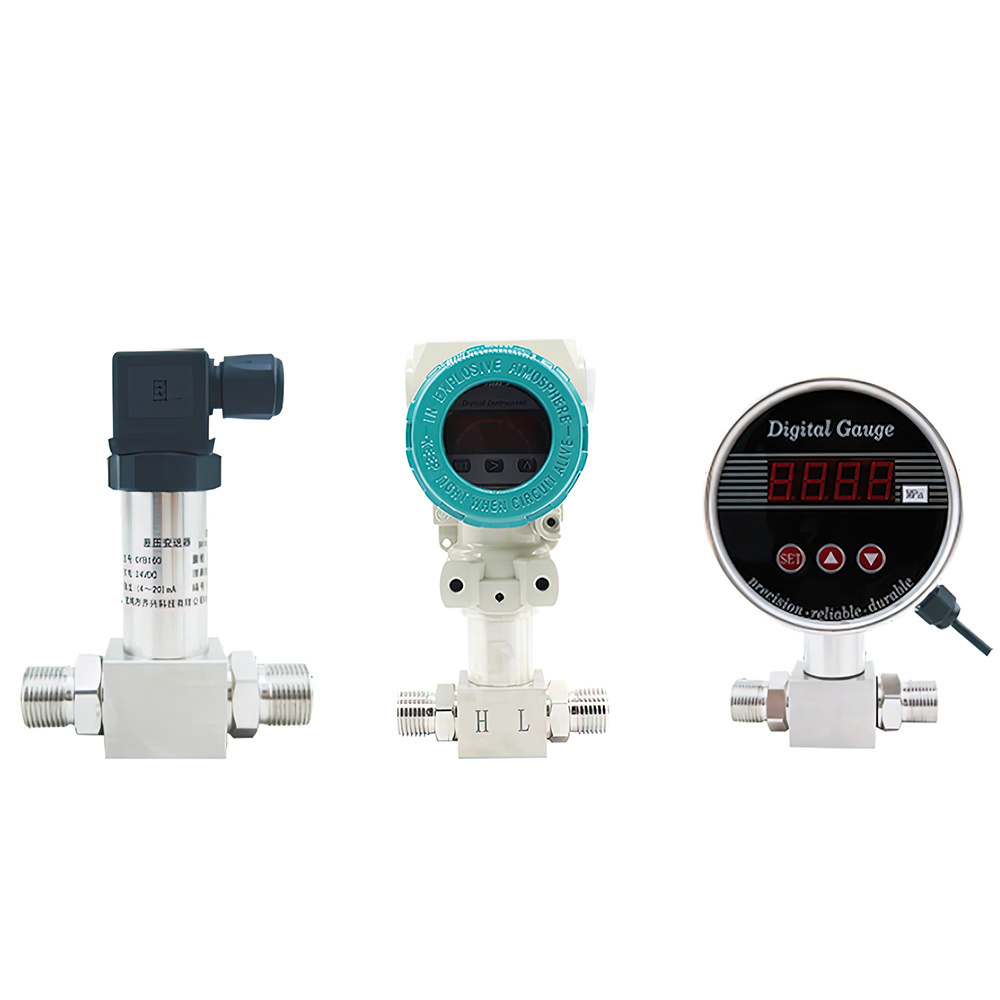

Differential Pressure Transmitter Water Air Oil Gas Liquid Pressure Sensor for Industrial Diffuse Silicon Pressure Transducers
|
|
Measurement Range
|
0~3.5MPa;
|
|
Material
|
Stainless Steel
|
|
Static Pressure
|
≤10MPa;
|
|
Accuracy
|
≤0.5%FS;
|
|
Power
|
24V±20%
|
|
Output
|
4~20mA/RS485
|
|
Overload Capacity
|
150%
|
|
Lead
|
Hermanns/M12/Cable
|
|
IP Rating
|
IP65
|
|
Ambient Temperature
|
-10℃-80℃
|
|
Relative Humidity
|
≤80%
|
|
Measuring Medium
|
Liquid: Water, Fuel,Petroleum,Oil ,Tank; Gas;
|
|
Application Range
|
Hydropower, Water, Petroleum, Chemical, Machinery, Hydraulic etc.
|
Product Description
OVERVIEW
It is mainly used to measure the difference between two pressures and convert this difference into a standard electrical signal (such as a 4-20mA DC signal) for output. Differential pressure transmitters have wide applications in industrial process control. For example, it can be used to measure the flow of liquids and gases (by cooperating with throttling devices), measure the liquid level height, and monitor the pressure difference of filters.
It can accurately and reliably transfer the differential pressure signal to the control system or other equipment in order to realize the monitoring, control and adjustment of the process. For instance, in the petrochemical industry, it is used to measure the flow of fluids in pipelines; in the field of environmental protection, it can be used to monitor the operating status of air filters, etc.
