industrial computer i3-7100U/i5-7200U/i5-7300U/i7-7500U 1*DDR4 Max.16GB RAM Realtek 8111F Gigabit lan 1*SATA3.0 1*M.2 4USB

N67 Mini PC Specification :

Mini PC Model

N67

Assembled motherboard

model

NANO6F,NANO7F

Chassis Color

Black

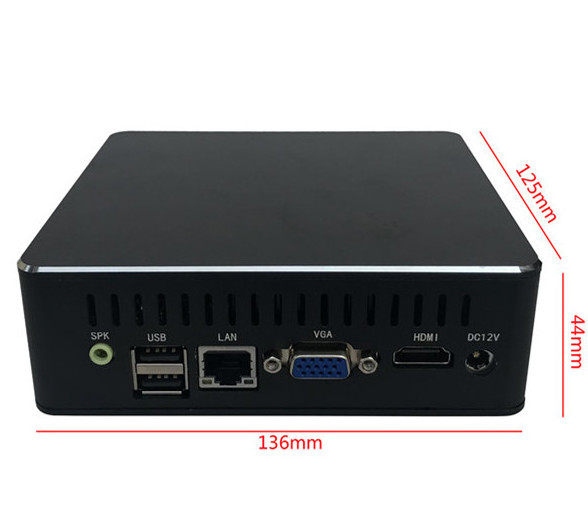

Chassis S ize

NANO PC,136*125*44MM (L*W*H)

Chassis Material

Aluminum(Fast heat dissipation,pressure resistant,wear-resistant,high temperature resistant).

Integrated Processor

Intel Skylake processor:Celeron 3855U,3955U;Core i3-6100U,i5-6200U,i7-6500U,etc ;

Intel Kaby Lake processor:Celeron 3865U,3965U;Core i3-7100U,i5-7200U,i5-7300U,

i7-7500U,etc.

Processor Quantity

Support 1 piece CPU

Memory

1*DDR4 2133/2400MHz Memory channel,up to 16GB RAM.

Network Card

1*Realtek 8111F Gigabit Network card,support 1 or 2 RJ45 LAN ports.

Support wake on LAN,PXE boot.

Audio

Realtek ALC662 HD digital audio decoder,support Line-out,Mic-in,SPDIF,Speaker.

Graphics Card

Integrated Intel HD Graphics 510/520/610/620 on CPU,support 4K (UHD) ,1080P (FHD) ,H264,

3D play.

Display

VGA,HD-MI,EDP,support synchronously,asynchronously dual,three screen display.

Hard Disk(Storage)

1*SATA3.0 , 1*M.2

Power Supply

DC 12V~19V wide voltage ;

Recommend DC12V 7A(Current:7A or more than 7A);

DC plug:5.5*2.5mm.

Heat Sink

Thin,cool,mute fan

I/O Interfaces

1*DC-IN , 1*Speaker(Line-out) , 1*Mic-in , 2*USB2.0 , 2*USB3.0 ,1*VGA , 1*HD-MI , 1*RJ45 LAN , 1*SIM card slot , 1*Power Button .

Built-in Pins

1*EDP ,1*VGA , 4*USB2.0 , 2*COM , 1*GPIO , 1*FAN , 1*SPDIF , 1*Speaker , 1*Audio

Expansion Bus

1*Mini-PCIE slots,support WIFI,4G,Bluetooth,GPS,MSATA.

Operating System

Win 7(32bit,64bit) , Win 8.1 , Win 10 , Linux.

System Monitor

Support CPU temperature monitor, fan speed,system temperature.

Watch dog

Watch dog programming, support hardware reset function (256 levels, 0~255 seconds).

BIOS

AMI BIOS;Support read only,power on,timing switch,remote switch,intelligently identify devices.

Operating Environment

Working temperature :-10℃~60℃ ;

Relative humidity:5%~95%,non-condensation.

Installation method

Desktop,wall hanging,embedded.

S imilar mini PC

NANO18,NANO19

Purchasing Information :

MOQ

1 piece

Net Weight

About 0.9KG/piece

Package Size

24*26*13CM for 1 piece

Payment Ways

T/T,Western Union,Alipay,Wechat Pay,Paypal,Alibaba Trade Assurance,RMB Cash,etc.

Delivery Time

2~3 working days

Shipping Ways

DHL,Fedex,UPS,TNT,etc.

Warranty

3 years for motherboard;1 year for CPU,RAM,SSD,HDD,WIFI,4G,etc.

OEM/ODM

Welcome

Certificate

CE , CCC , ISO , MSDS , UN38.3 , UN3091 , POA
