Quick Details
-
Warranty(Year):
-
5-Year
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
3600
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lumin
-
Model Number:
-
LM-WP-66-36
-
Installation:
-
Suspended, Surface mounted
-
LGP material:
-
4T CHIMEI PMMA
-
Diffuser material:
-
5T CHIMEI PMMA
-
Dimension:
-
595*595*18mm
-
Color tolerance adjustment:
-
SDCM3
-
UGR:
-
<19
-
Dimmable:
-
TRIAC/DALI/0-10V/WIRELESS
-
Product name:
-
New 60x60 frameless sky ceiling led light panel for office lighting
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Home Office
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
3600
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lumin
-
Model Number:
-
LM-WP-66-36
-
Installation:
-
Suspended, Surface mounted
-
LGP material:
-
4T CHIMEI PMMA
-
Diffuser material:
-
5T CHIMEI PMMA
-
Dimension:
-
595*595*18mm
-
Color tolerance adjustment:
-
SDCM3
-
UGR:
-
<19
-
Dimmable:
-
TRIAC/DALI/0-10V/WIRELESS
-
Product name:
-
New 60x60 frameless sky ceiling led light panel for office lighting

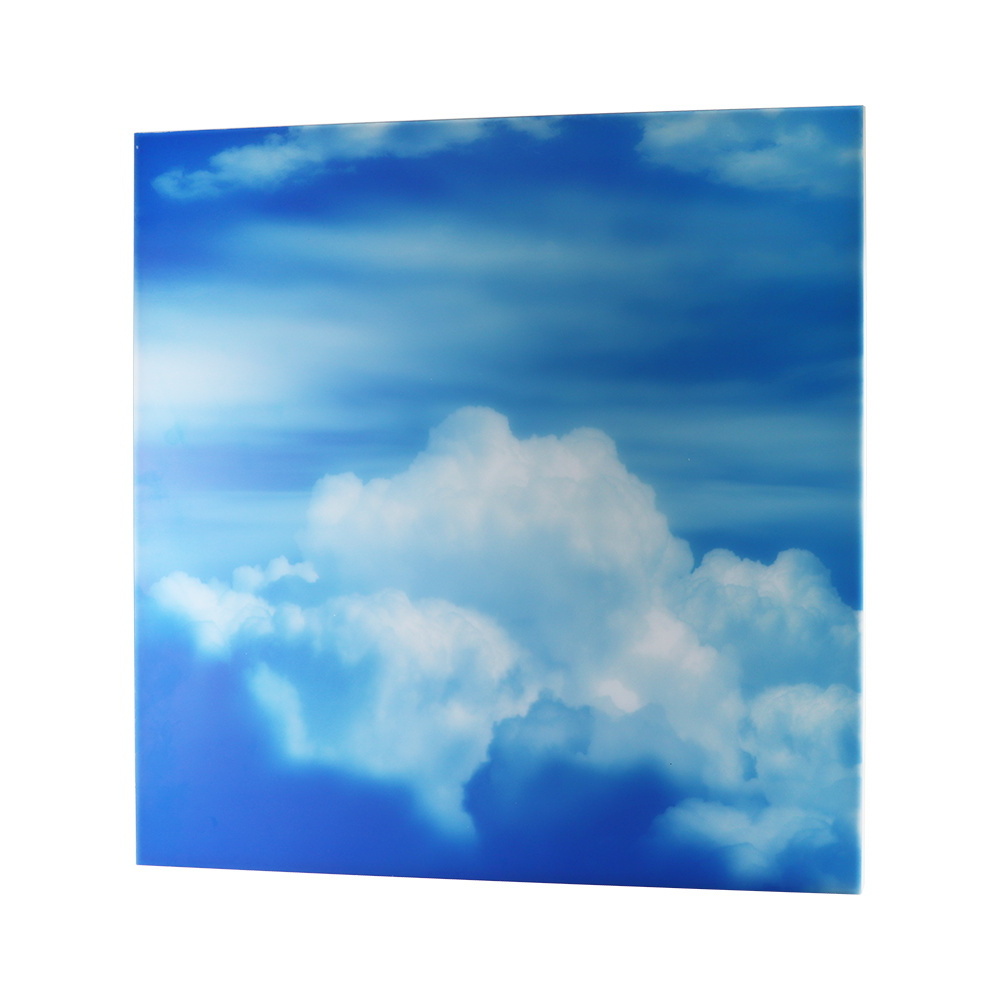

New trend 60x60 frameless sky ceiling led light panel for office lighting
| Product name | New trend 60x60 frameless sky ceiling led light panel for office lighting | ||||
| Meterial | Aluminum + PC cover | ||||
| Application | Shopping Mall/House/School/Hospital/Hotel | ||||
| Certification | CE / ROHS/EMC /ENGERY STAR/FCC/ | ||||
| MOQ | 1PCS | ||||
| Voltage | AC85-265V/AC185-265V | ||||
| Rendering index | Ra>80/ 90 | ||||
| Protection | IP44/IP65 | ||||
| Color temperature | 3000k-6500k | ||||
| Working temperature | -20℃-50℃ | ||||
| Luminous effiency | 100lm/w | ||||
| Packaging | colorbox + carton , or as required package | ||||
| Guarantee perioed | 3/5years | ||||
| Delivery time | sample 3-5 days , bulk order normal 7-15 days . | ||||
(1) 36W square LED panel light with high hardness aero aluminum housing matrial 6063.
(2) 9mm super slim design
(3) save 80% energy over than fluorescent tube.
(4) 50000 hours desighed lifespan, 6 times than fluorescent tube.
(5) Flicker free and instant start.
(6) LM-80 listed LEDs realized high luminous efficacy&low optical decay.
(7) High transmittance PMMA light guide plate& optical fire-resistant,PC diffuser.
(8) IP rates 40,used indoors.
(9) Lifud drivers have high power supply ENEC listed.
(10) Good heat dissipation,weighed 400G.
(11) Dimming solution can be customized.
It is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels,
retail outlets, living rooms, airports, entertainment spaces, etc.
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.
One panel in an inner box ,one master carton contain 5 inner boxes.
Inner carton size:68CM*63*CM*3.5cm
Inner carton GW:4.3KG
Master carton size:68.5CM*63.5CM*20CM
Master carton GW:22KG
Shipping by Fedex,DHL,TNT.Air,shipping is also avaliable
