Quick Details
-
Material:
-
Marine wooden box with internal lining
-
Weight:
-
250Kg
-
Size:
-
67CM*110CM*135.5CM
-
Power:
-
4.95
-
Productivity:
-
100G/H
-
Weight (KG):
-
250 kg
-
package Material:
-
wooden case
-
Voltage:
-
110V/220V or 380V
-
Ozone output:
-
100G/H
-
Ozone adjustable range:
-
20%~100%
-
Ozone cocentration:
-
90-60
-
Ozone produced method:
-
Corona discharge
-
Ozone produced material:
-
Enamel ozone tube
-
Ozone tube cooling method:
-
Water cooling
-
Build-in:
-
PSA oxygen generator
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
JUNMAO, JUNMAO
-
Material:
-
Marine wooden box with internal lining
-
Weight:
-
250Kg
-
Size:
-
67CM*110CM*135.5CM
-
Power:
-
4.95
-
Productivity:
-
100G/H
-
Weight (KG):
-
250 kg
-
package Material:
-
wooden case
-
Voltage:
-
110V/220V or 380V
-
Ozone output:
-
100G/H
-
Ozone adjustable range:
-
20%~100%
-
Ozone cocentration:
-
90-60
-
Ozone produced method:
-
Corona discharge
-
Ozone produced material:
-
Enamel ozone tube
-
Ozone tube cooling method:
-
Water cooling
-
Build-in:
-
PSA oxygen generator
Product Description

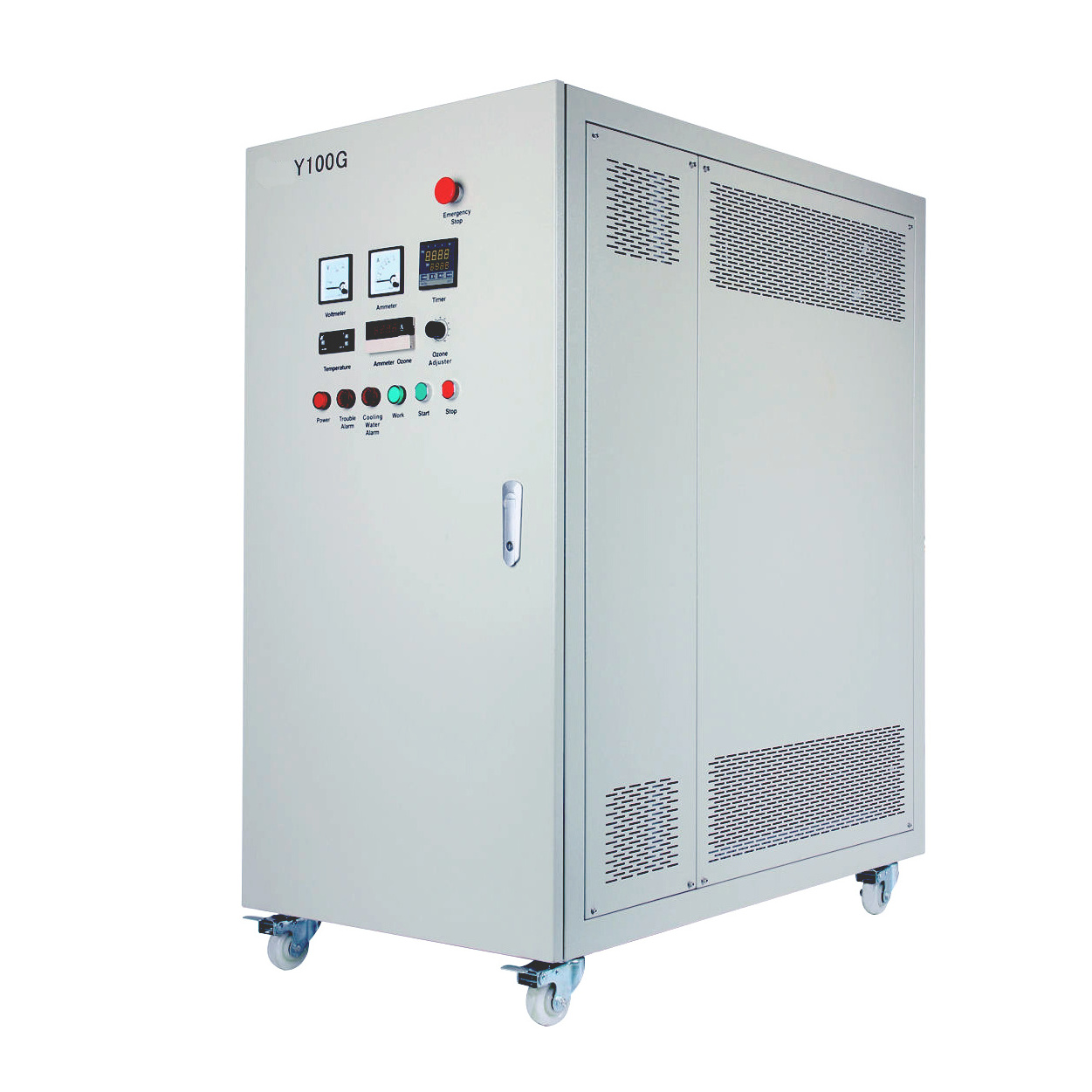

The
WEO
series ozone machine is a high concentration ozone generation equipment that is
water-cooled
and comes with an
oxygen source
build in.
Double water cooling
Build-in oxygen generator system
High ozone concentration
Enamel ozone tube
Ozone output adjustable
Intelligent alarm
Specification
|
Model number
|
JM-WEO10G
|
JM-WEO20G
|
JM-WEO30G
|
JM-WEO50G
|
JM-WEO60G
|
|
Ozone production (g/h)
|
10
|
20
|
30
|
50
|
60
|
|
power (KW)
|
0.88
|
1.3
|
1.5
|
2.6
|
3.1
|
|
Ozone concentration(mg/L)
|
30-150
|
30-150
|
30-150
|
30-150
|
30-150
|
|
Operating temperature(℃)
|
≤35
|
≤35
|
≤35
|
≤35
|
≤35
|
|
Air flow(L/min)
|
40
|
90
|
130
|
220
|
250
|
|
Air dew point
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
|
Oxygen flow
|
3
|
5
|
7
|
10
|
10
|
|
Oxygen concentration
|
93%±3
|
93%±3
|
93%±3
|
93%±3
|
93%±3
|
|
Cooling mode
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
|
Cooling water quantity(L/min)
|
10-50
|
10-50
|
10-50
|
10-50
|
10-50
|
|
Power source(V/Hz)
|
220/50
|
220/50
|
220/50
|
220/50
|
220/50
|
|
Installation mode
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
|
Ozone power cooling method
|
Air cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
|
Generator power regulation
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
|
Overall dimension(mm)
|
720×540× 1230
|
720×540× 1230
|
720×540× 1230
|
720×540× 1230
|
720×540× 1230
|
|
Net weight of equipment(kg)
|
75
|
86
|
98
|
125
|
145
|
|
Model number
|
JM-WEO80G
|
JM-WEO100G
|
JM-WEO150G
|
JM-WEO200G
|
JM-WEO300G
|
|
Ozone production (g/h)
|
80
|
100
|
150
|
200
|
300
|
|
power (KW)
|
2.5
|
3
|
4.8
|
4.9
|
6.2
|
|
Ozone concentration(mg/L)
|
30-150
|
30-150
|
30-150
|
30-150
|
30-150
|
|
Operating temperature(℃)
|
≤35
|
≤35
|
≤35
|
≤35
|
≤35
|
|
Air flow(L/min)
|
260
|
325
|
390
|
455
|
525
|
|
Air dew point
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
≤ - 40℃
|
|
Oxygen flow
|
15
|
20
|
30
|
40
|
50
|
|
Oxygen concentration
|
93%±3
|
93%±3
|
93%±3
|
93%±3
|
93%±3
|
|
Cooling mode
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
Water-cooling
|
|
Cooling water quantity(L/min)
|
20-60
|
20-60
|
20-60
|
20-60
|
20-60
|
|
Power source(V/Hz)
|
220/50
|
220/50
|
220/50
|
220/50
|
220/50
|
|
Installation mode
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
|
Ozone power cooling method
|
Air cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
|
Generator power regulation
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
|
Overall dimension(mm)
|
770×600×
1350
|
770×600× 1350
|
770×600× 1350
|
770×600× 1350
|
770×600× 1350
|
|
Net weight of equipment(kg)
|
148
|
192
|
260
|
332
|
425
|
|
item
|
value
|
|
Weight
|
102Kg
|
|
Size
|
65CM*103CM*124CM
|
|
Power
|
1.62Kw
|
|
Voltage
|
110V/220V or 380V
|
|
Warranty
|
1 Year
|
|
Productivity
|
40G/H
|
|
package Material
|
Wooden case
|
|
Ozone adjustable range
|
20%~100%
|
|
Ozone cocentration
|
90-60
|
|
Ozone produced method
|
Corona discharge
|
|
Ozone produced material
|
Enamel ozone tube
|
|
Ozone tube cooling method
|
Water cooling
|
|
Build-in
|
PSA oxygen generator
|
Advantages
Compare with other ozone generators
|
High concentration oxygen source ozone generator
|
Other oxygen-rich or air-source ozone generators
|
|
|
|
|||
|
The gas entering the ozone discharge chamber is dried, dehydrated, filtered dust cooling and other pre-treatment processes (the machine is equipped with an efficient cold and dry machine) to ensure stable gas quality and very slow ozone output decay.
|
The gas entering the discharge components has not been pre-treated or equipped with a simple drying cylinder, and is affected by external temperature, humidity, and pollution, and the ozone decay speed is fast and the ozone output is unstable, which is easy to cause breakdown and other phenomena.
|
|
|
|
|||
|
The power system adopts IGBT circuit with complete protection function. Frequency conversion technology is adopted to realize automatic frequency tracking and stable waveform.
|
Unable to achieve frequency tracking, does not work at its best.
|
|
|
|
|||
|
Single-unit ozone output can be adjusted arbitrarily by using the panel adjustment knob
|
The ozone level is adjusted according to the production of the generating unit
|
|
|
|
|||
|
The high concentration (93%) oxygen unit is used to treat the air entering the ozone generator, and the ozone content is not limited by environmental conditions, and the concentration is high.
|
Oxygen rich source uses low concentration (about 30%) oxygen supply, easy to fail, low ozone concentration.
|
|
|
|
|||
|
No need to install in the air duct or chassis, suitable for explosion-proof environment.
|
Some devices must be installed in the air duct or chassis and are not suitable for flammable and explosive environments.
|
|
|
|
|||
|
The use of advanced water cooling technology to ensure that the ambient temperature of ozone generation is relatively constant,
and the ozone production is not affected by the ambient temperature. |
The air-cooled ozone generator is greatly affected by the ambient temperature, the heat dissipation effect is poor, and the ozone output is unstable.
|
|
|
|
|||
|
Double anti-backwater system is used to completely eliminate backwater phenomenon.
|
No backwater protection or simple check valve
|
|
|
|
|||
|
Equipment shell
|
Carbon steel sprayed with plastic or stainless steel
|
|
Gas supply system
|
Oil-free air compressor
|
|
Gas treatment system
|
Refrigerated dryer
|
|
PSA oxygengenerator system
|
Nano-molecular sieve oxygen unit
|
|
Enamel ozonegenerator tube
|
Double water-cooled ozone generating tube is outstanding ozone generation module.
Theinner electrode useenamel coating and the
external electrode use stainless steel.
The enamel tube has stronger impact resistance than glass and ceramic materials,and the use
of insulating materials to prevent leakage |
|
Ozone dedicatedpower supply
|
High-frequency inverter circuit,
Power devices using IGBT,
Operating frequency 8-12KHZ,
High-frequency booster transformer,
Working voltage:3-5KV,
Magnetic core using ferrite,
Coil wire selection of high-temperature multi-strand high-frequency wire
|
|
Cooling system
|
Our ozone machine using water cooling way
|
|
Gas circuit
|
Inlet and outlet lines are made ofTeflon material
|
|
Instruments and accessories
|
Ozone output adjuster,voltmeter,ammeter micro computer controller, cooling water temperature meter, ozone cell operating ammeter,
power switch,total power switch,work switch,emergency stop switch,work instructions,power instructions, fault alarm indication |
1, Long service life of the equipment:
the selected configuration and materials are well-known at home and abroad, and the quality is the best, especially the core part of the ozone equipment - ozone discharge material is made of 316L stainless steel. This material is the highest grade of stainless steel because it is very resistant to corrosion. As we all know, when the high voltage discharge in the discharge chamber produces ozone, the high voltage corrodes the discharge material very much, and the ozone generated is more corrosive, which requires the corrosion resistance of the discharge material to be strong, and the discharge material 316L stainless steel used by our company is the material used in aviation, its biggest function is strong corrosion resistance, so as to ensure the long service life of the ozone equipment. This series is basically maintenance-free.
2, The equipment is stable:
the use of frequency conversion power supply, because the required frequency is not the same when the high voltage discharge produces ozone, so the frequency is required to be automatically adjusted. The frequency conversion power supply currently used by our company can achieve automatic frequency tracking so that the equipment can output ozone stably. Coupled with the use of water cooling technology, why is it important for temperature cooling, the reason is that ozone gas is a very active gas, if the temperature rises to a certain range, ozone will soon be reduced to oxygen, can not achieve the ideal disinfection effect. But my company uses water cooling technology to control the temperature within the range required for ozone, so that
Maximum duration of stable sterilization.
3, Ozone production is large, high concentration:
the principle of ozone production is high voltage discharge, ionizing oxygen atoms in the air to produce ozone, so the air source is required to be better, that is, the raw materials to produce ozone. This series of products use oxygen as the air source, through the oil-free air compressor into, plus cooling, drying, oil-water filtration, dust filtration, freeze-drying and a series of processing, so as to ensure the high cleanliness of the air source, and then add a high concentration oxygen system, sample to ensure the feed
The amount of oxygen into the ozone discharge chamber is large and the purity is high, which can ensure the ozone production is large and the ozone concentration is high.
4, Quality after-sales service
: most of our R & D personnel in the professional field more than 20 years, the core R & D personnel in the ozone industry experience more than 26 years. Ozone core components are independently developed, with independent patented technology, and specially customized, quality and safety are effectively controlled. Our work team and sales team can guarantee fast and efficient after-sales service for our products worldwide. We have a complete supply system to ensure the demand for product accessories. Therefore, if you have any questions, please feel free to contact us at your convenience.
① Non-human factor ozone generator machine quality problems one year warranty.
② Non-human factors ozone generation components (discharge tube) lifetime maintenance.
③ Free repair or replacement of parts damaged due to quality problems of our products except human factors.
④ In the warranty period, if the fault occurs due to the manufacturing quality problems of the product, we will be responsible for repairing or replacing the damaged components and accessories free of charge.
⑤ If you need on-site service or guide our after-sales service personnel to ensure that they arrive at your designated place within 7 working days.
5, Quality assurance:
1. The shell material of the chassis is SUS304 stainless steel or cold plate spray, and the electronic components are provided by domestic and foreign famous brand manufacturers.
2. Each production process strictly implements the ISO9001 quality certification system to ensure that the whole machine meets the enterprise standards and industry verification standards.
3. If the customer thinks it is possible and necessary, the company will invite relevant personnel of the customer to the site to participate in product factory inspection and factory acceptance.
4. Guarantee to provide spare parts required by customers within the product warranty period and life period.
5. Urgent users, want users to think, to meet customer needs. Supports OEM and ODM.
|
N
ame
|
Parts and Components
|
|
|
|
|||
|
Ozone generator housing
|
Production according to customer drawings
|
|
|
|
|||
|
Control panel
|
Amperemeter
|
|
|
|
|||
|
|
Voltmeter
|
|
|
|
|||
|
|
Time controller
|
|
|
|
|||
|
|
Microcomputer temperature switch
|
|
|
|
|||
|
|
Digital AC ammeter
|
|
|
|
|||
|
|
Potentiometer knob
|
|
|
|
|||
|
|
Power indicator light
|
|
|
|
|||
|
|
Working light
|
|
|
|
|||
|
|
Faulty buzzer
|
|
|
|
|||
|
|
Scram button
|
|
|
|
|||
|
|
Stop button
|
|
|
|
|||
|
|
Start button
|
|
|
|
|||
|
Electronic control system
|
Leakage protection switch
|
|
|
|
|||
|
|
Ac contactor
|
|
|
|
|||
|
|
Gated switch
|
|
|
|
|||
|
|
Intermediate relay
|
|
|
|
|||
|
|
Intermediate relay base
|
|
|
|
|||
|
Ozone generator
|
Double water-cooled enamel ozone tube/Titanium alloy dehydroxylated quartz honeycomb generator
|
|
|
|
|||
|
|
Cooling water protection system
|
|
|
|
|||
|
Ozone power supply
|
Ozone special intelligent power supply
|
|
|
|
|||
|
|
Intelligent frequency converter
|
|
|
|
|||
|
Air source
|
Air compressor
|
|
|
|
|||
|
Air source treatment system
|
Freezing desiccant
|
|
|
|
|||
|
|
Condenser
|
|
|
|
|||
|
Oxygen production system
|
PSA 12-tower oxygen unit
|
|
|
|
|||
|
|
Flowmeter
|
|
|
|
|||
|
Automatic protection system
|
Intelligent protection board
|
|
|
|
|||
|
|
Intelligent control panel
|
|
|
|
|||
INTELLIGENT CONTROL HIGH EFFICIENCY AND ENERGY SAVING
One year warranty of the whole machine!
Air source system:
Adopt domestic first-class brand oil-free air compressor
Air source treatment system:
The air source treatment system mainly includes condensing heat exchangers, cold drying machines, etc., whose function is to provide qualified raw material gas to the oxygen production system. The system through the multi-stage filtration treatment, the specific process is to compress the air through a series of water removal, oil removal, dust removal and other processes, so that the air source dew point is -45℃ ~ -65℃, dust granularity is 0.1um, oil content is less than 0.1ppm.
Oxygen production system:
PSA oxygen production technology, That is, air containing 78% nitrogen and a certain amount of water is absorbed by the intermediate molecular sieve under a certain pressure. While nitrogen and water are absorbed, oxygen can pass smoothly through the molecular sieve Without being affected. Within minutes of the nitrogen being absorbed by the molecular sieve, the molecular sieve fills with nitrogen and begins to release pressure - the oxygen is enriched and purified. At the same time, the incoming air flow is channeled into the next exchange column that has just completed the same process. This process of absorption and re-working is carried out continuously during the entire operation of the oxygen producing unit.
Ozone generation tube:
1, the core components of ozone generation is made of enamel generation tube, its electrical impact resistance is far better than glass tube and ceramic sheet medium, its mechanical impact resistance is strong, and maintenance-free.
2, ozone production, high ozone concentration, can maximize the function of the power system and cooling system, is the technical key to large production of high-concentration ozone generator, suitable for frequency 400-3000Hz, voltage 3.7-4.5KV, dielectric constant ε = 6.19, breakdown strength greater than 9KV;
3, the generation tube design for independent unit discharge, easy to replace, do not affect each other;
4, the impact voltage of the discharge electrode is enhanced to improve the reliability of the equipment;
Titanium alloy dehydroxylated quartz honeycomb generator tube:
1,The core component of ozone generation is the quartz generation tube made of German technology, its electrical impact resistance is far better than the ceramic medium, its mechanical impact resistance is strong, and maintenance-free.
2, Ozone production, high ozone concentration, can maximize the function of the power system and cooling system, is the technical key of high-concentration ozone generator, suitable for frequency 400-3000Hz, voltage 3.7-4.5KV, dielectric constant ε = 6.19, breakdown strength greater than 9 KV;
3, The generation tube design for independent unit discharge, easy to replace, do not affect each other;
4, The impact voltage of the discharge electrode is enhanced to improve the reliability of the equipment;
Ozone power supply:
JM-800A intelligent ozone power supply is a new intelligent ozone generator power supply with 32-bit ARM7 core as the computing core, and the power supply itself has a built-in closed-loop detection and control system circuit, so that it can adapt to different power and types of ozone generator devices, and greatly improve the stability of driving capacity and ozone generation efficiency.
JM-800A intelligent ozone power supply can automatically fine-tune the frequency according to the different working current states of the ozone generator device in the actual working process, so as to achieve the best working state matched with the ozone generation tube.
Automatic protection system:
The machine is equipped with a standard control plate and a protection plate for real-time multi-point monitoring of the load of the generation pipe, power supply, oxygen production unit, air compressor, cold and dry machine. Overcurrent, module overcurrent, module overtemperature, cooling water cut off, cooling water flow is insufficient, and water accumulation in the generator discharge chamber may occur.The fault of the device and its system can be given warning, delayed shutdown, immediate shutdown according to the fault characteristics, while sending an audible and visual alarm signal to report the cause of the fault, which greatly improves the safety and reliability of the system.
Electronic control system:
The main electrical control devices of the machine are imported first-line brands and equipped with remote control and local control switching function, which greatly improves the stability and operation convenience of the equipment.
Intelligent control:
Water intake, drainage, air regeneration, air purging, cooling water level automatic
Control, accurate control time, reliable action, free from manual operation.
High efficiency
refrigerant dryer
High efficiency refrigerant dryer can avoid oxygen concentration influence by the high heat value and high humidity gas produced from air compressor,and improve oxygen concentration and enrich oxygen concentrator using life.
Applications
Packing & Delivery
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 2~8 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
