OEM 3D 4K60hz Ultra HD HDMI Quad multi viewer 4 in 1 Out HDMI switch 4 X 1 for Projector Monitor DVD Player and Blu-ray Player

OEM 3D 4K60hz Ultra HD HDMI Quad multi viewer 4 in 1 Out HDMI switch 4 X 1 for Projector Monitor DVD Player and Blu-ray Player

FOB Reference Price: Get Latest Price

≥1 Pieces

US $52.8

≥50 Pieces

US $48.8

≥200 Pieces

US $45.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SWB41c

Brand Name:: AIAVD

Place of Origin:: Guangdong, China

Specification

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz
IR Level	5Vp-p
IR Frequency	38KHz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8bit
Audio Formats	HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio.
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

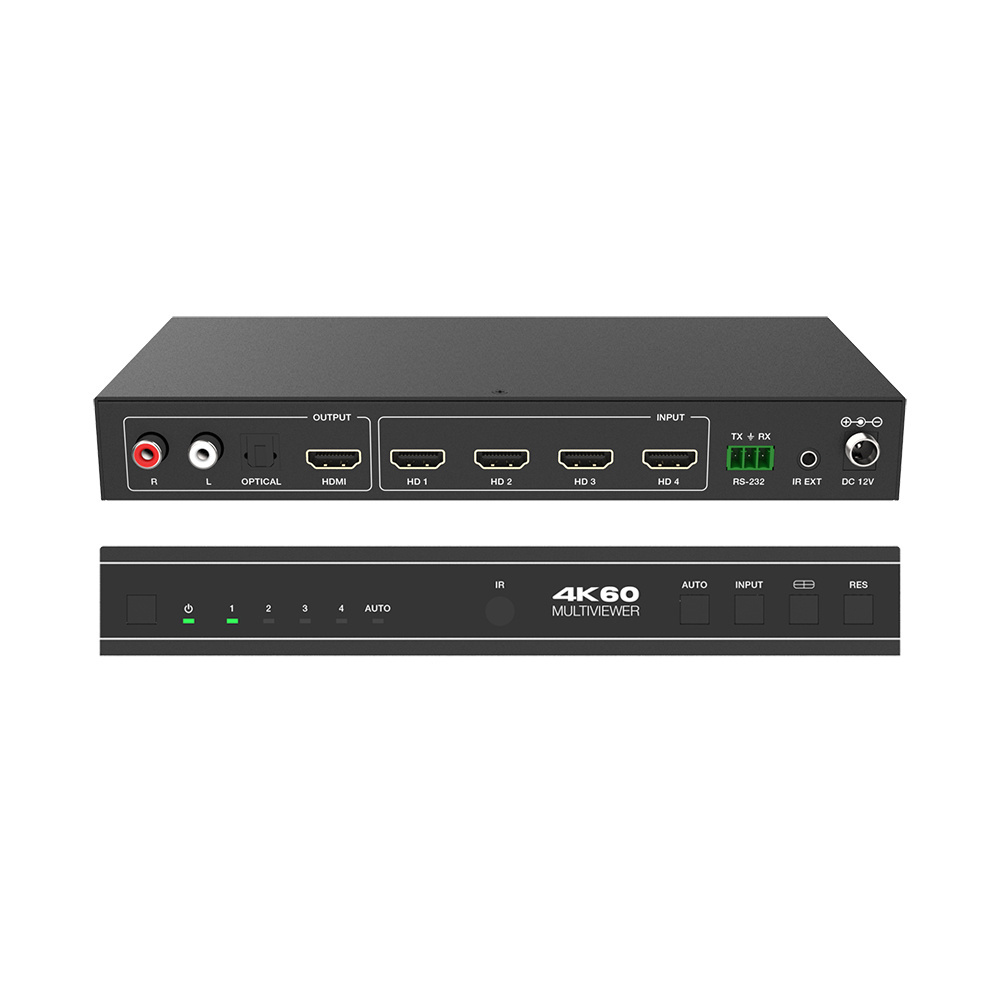

Connection
Input ports	4 x HDMI IN [Type A, 19-pin female]
Output ports	1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF]
Control ports	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	220mm [W] x 100mm [D] x 30mm [H]
Weight	620g
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption	10W (Max)
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no-condensing)

Introduction

This 4K60 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor. This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This device can be controlled via front panel buttons, IR remote, RS-232 commands.

Features

☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant ☆ Support 18Gbps video bandwidth ☆ Input and output resolutions support up to 4K@60Hz ☆ Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel ☆ Seamless switching between input channels and combined multiple images on single UHD monitor ☆ Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2) ☆ Seamless switching on single screen display mode ☆ Fast switching on multiview display mode ☆ Audio de-embedding via analog and optical fiber audio ports ☆ Support volume control and independent audio selection ☆ Support OSD navigation for advanced setting ☆ EDID management ☆ Control via front panel buttons, IR remote, RS-232 commands ☆ Compact design for easy and flexible installation

Product Description

Packing & Delivery

Package Contents

① 1 x 4K60 4x1 Multiviewer Seamless UHD Video Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ⑤ 2 x Mounting Ears ⑥ 4 x Machine Screws (KM3*4) ⑦ 4 x Rubber Feet ⑧ 1 x 12V/2.5A Locking Power Adapter ⑨ 1 x User Manual
