Quick Details
-
Place of Origin:
-
Guangdong china
-
Brand Name:
-
XXY
-
Product Name:
-
Landing Gear
-
Material:
-
Steel
-
Application:
-
Trailer Truck Used
-
Color:
-
Black
-
Type:
-
Welding
-
MOQ:
-
100pcs
-
Package:
-
Standard Package
-
Certificate:
-
ISO/TS16949
-
Quality:
-
High-Quality
Quick Details
-
OE NO.:
-
OEM Service Provided
-
Max Payload:
-
standard
-
Size:
-
480/430/360, 2 Inch
-
Place of Origin:
-
Guangdong china
-
Brand Name:
-
XXY
-
Product Name:
-
Landing Gear
-
Material:
-
Steel
-
Application:
-
Trailer Truck Used
-
Color:
-
Black
-
Type:
-
Welding
-
MOQ:
-
100pcs
-
Package:
-
Standard Package
-
Certificate:
-
ISO/TS16949
-
Quality:
-
High-Quality
Product Overview

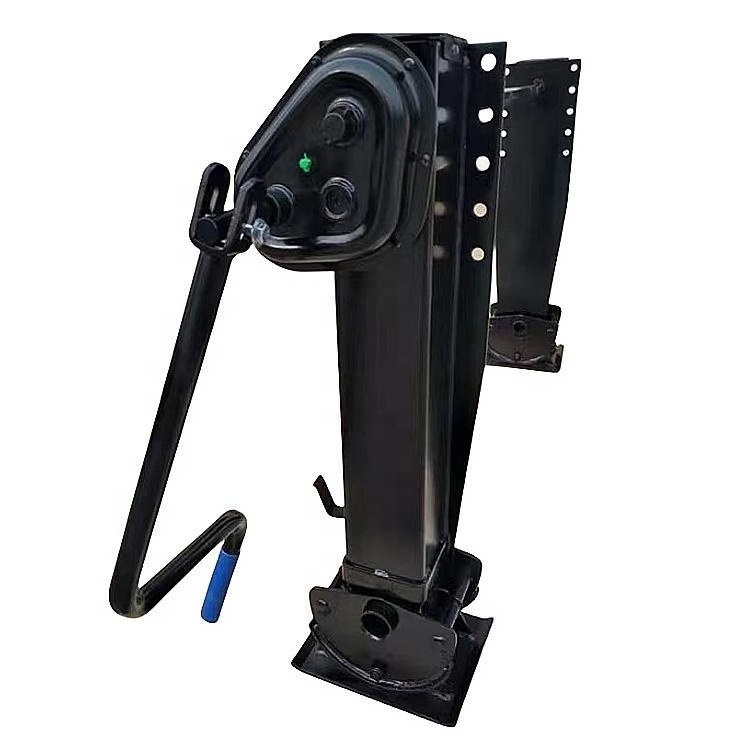

Landing Gear For Semi Trailer
High cost performance: With boutique quality and high-quality service, the parts of the product are designed and produced independently, with high self-made rate, controllable cost and affordable price.
CHARACTERISTICS
1. Product lightweight structure design: omit the bearing plate, and punch two positioning holes in the inner square tube;
2. The expansion and contraction of the inner and outer legs is more stable and reliable: the square nut makes it not easy to
shake when the inner legs are empty;
3. Flanging design of the gear shaft hole, the product is beautiful and generous: the welding shaft sleeve is omitted, and the
product appearance is more beautified;
4. The gear shaft adopts a square design with strong transmission capacity: it is less likely to break the shaft than the flat key
or semi-circular key design.
2. The expansion and contraction of the inner and outer legs is more stable and reliable: the square nut makes it not easy to
shake when the inner legs are empty;
3. Flanging design of the gear shaft hole, the product is beautiful and generous: the welding shaft sleeve is omitted, and the
product appearance is more beautified;
4. The gear shaft adopts a square design with strong transmission capacity: it is less likely to break the shaft than the flat key
or semi-circular key design.
Details Images
Product Features
● High cost performance: With boutique quality and high-quality service, the parts of the product are designed and produced independently, with high self-made rate, controllable cost and affordable price.
● High over-load capacity: Axle shaft is one-time-formed, with unique overall heat treatment. Thus largely enhance the strength and elasticity of the axle and improve the load capacity.
● Reliability: The company develops and produces in strict accordance with the IATF 16949/ISO9001 system, and fully guarantees the quality of the products
● Security: Provide multi-level control method and establish a complete management system
● Low maintenance costs: There are hundreds of service points nationwide, and all major provinces and cities can experience our high-quality services at affordable prices.
● Complete range: German and American axle series and tandem suspension, air suspension, bogie, rigid suspension, four suspension series, a total of more than 100 products.
● High self-made rate: The main components of the axle are all self-made, including the axle shaft , wheel hub, brake drum, casting and forging, bracket, leaf spring, bolt shaft and so on.
● Customized design: Customized design is available for we own the most powerful technician and development team in China. We can develop new products and modify traditional products according to your requirements.
● Delivery date assure: We have a total area of 300 thousand square meters production base to ensure your products deliver to you in time.
● Stronger axle head: Axle head is made of steel alloy, this make it much stronger than one-piece axle
Product Paramenters
|
Model
|
Base
|
Itinerary D
|
Install high A
|
Weight
|
Carrying capacity
|
Static load
|
|
HZC2819-000T
|
T
|
480
|
838
|
108KG
|
28.000Kg/set
|
80.000Kg/set
|
|
HZC2817-000T
|
T
|
430
|
788
|
106Kg
|
28.000Kg/set
|
80.000Kg/set
|
|
HZC2814-000T
|
T
|
360
|
718
|
98.5Kg
|
28.000Kg/set
|
80.000Kg/set
|
|
HZC2819-000S
|
S
|
480
|
838
|
116kg
|
28.000Kg/set
|
80.000Kg/set
|
|
HZC2817-000S
|
S
|
430
|
788
|
114kg
|
28.000Kg/set
|
80.000Kg/set
|
|
HZC2814-000S
|
S
|
360
|
718
|
106.7 kg
|
28.000Kg/set
|
80.000Kg/set
|
Noted:
can be customized according to customer requirements
