Quick Details
-
Rated Lifting Moment:
-
1.2-2.2
-
Max. Lifting Height:
-
0.9-1.5m
-
Place of Origin:
-
China
-
Weight (KG):
-
110 kg
-
Product name:
-

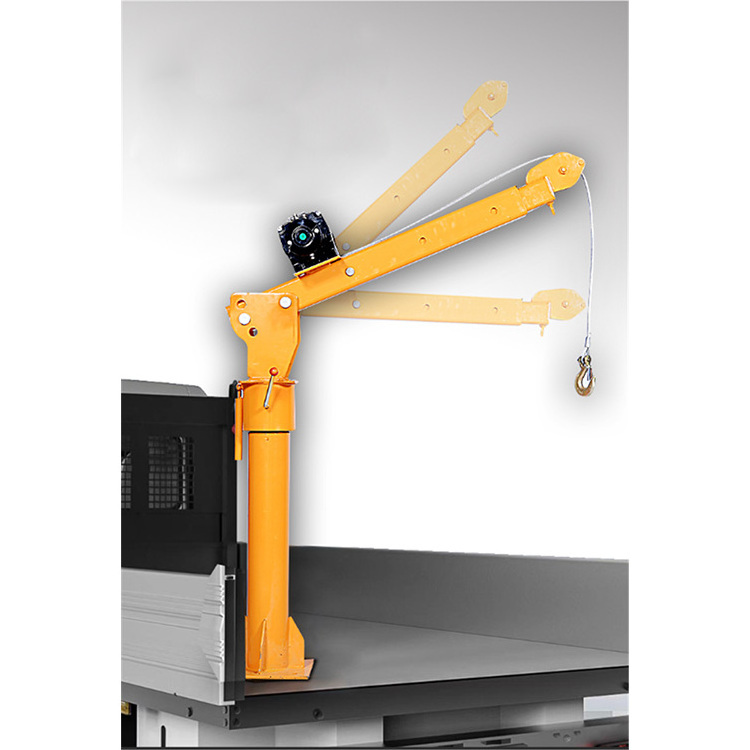

Small Crane Mounted Crane
-
Lifting capacity (kg):
-
1000KG
-
Mounting base size (mm):
-
250*250*15
-
Boom height (m):
-
1.2-2.2
-
Dead weight of complete machine (kg):
-
110
-
Power supply (V):
-
12V24V220V380V
-
Column diameter (mm):
-
133
-
Wire rope diameter (mm):
-
5
-
Arm thickness (mm):
-
10
-
Base (CM):
-
30*30
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Widely
-
Rated Loading Capacity:
-
1000KG
-
Rated Lifting Moment:
-
1.2-2.2
-
Max. Lifting Height:
-
0.9-1.5m
-
Place of Origin:
-
China
-
Weight (KG):
-
110 kg
-
Product name:
-
Small Crane Mounted Crane
-
Lifting capacity (kg):
-
1000KG
-
Mounting base size (mm):
-
250*250*15
-
Boom height (m):
-
1.2-2.2
-
Dead weight of complete machine (kg):
-
110
-
Power supply (V):
-
12V24V220V380V
-
Column diameter (mm):
-
133
-
Wire rope diameter (mm):
-
5
-
Arm thickness (mm):
-
10
-
Base (CM):
-
30*30
Products Description
|
Lifting capacity (kg)
|
1000KG
|
Mounting base size (mm)
|
250*250*15
|
||
|
Boom height (m)
|
1.2-2.2
|
Dead weight of complete machine (kg)
|
110
|
||
|
Power supply (V)
|
12V24V220V380V
|
Column diameter (mm)
|
133
|
||
|
Wire rope diameter (mm)
|
5
|
Arm thickness (mm)
|
10
|
||
|
texture of material
|
Thickened steel pipe
|
Arm
|
Rectangular square tube
|
||
|
The rocker arm can be closed
|
Net height after closure: 1.35M
|
Boom outer pipe diameter (mm)
|
100*100*80mm
|
||
|
Rotating arm
|
360 degree manual rotation
|
Double wall thickness (mm)
|
8
|
||
|
Base (CM)
|
30*30
|
Thickness of base steel plate (mm)
|
16
|
||
|
Boom length
|
The distance between the hook falling on the ground and the main rod is 0.9-1.5m adjustable, and the 3-hole locating pin eye is
adjustable |
|
|
||
|
Brake form
|
It has diaphragm automatic braking system to ensure load, lifting, suspension and self-locking functions
|
|
|
||
