Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Mingwei
-
Model Number:
-

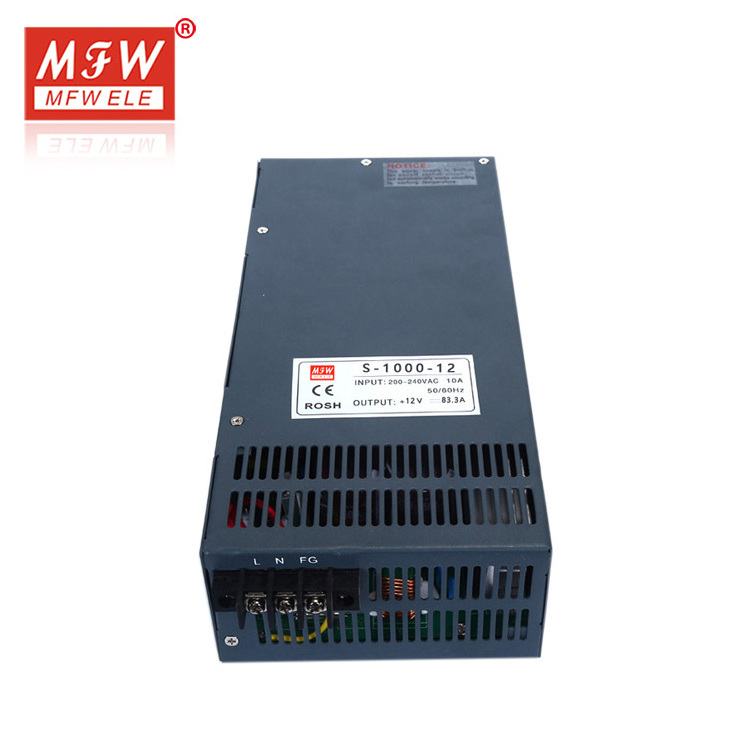

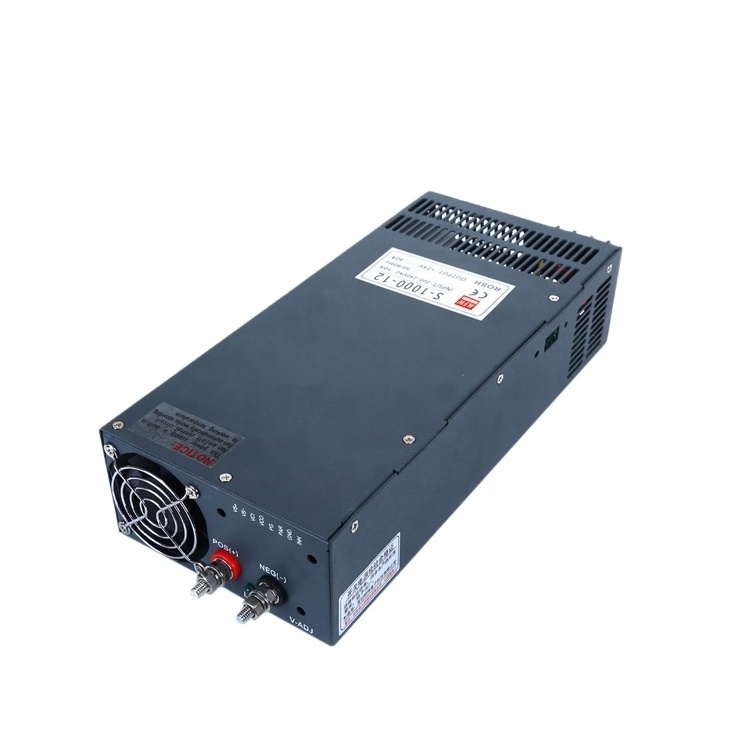

S-1000
-
Output Frequency:
-
47~63 Hz
-
Output Current:
-
100A
-
Brand:
-
Mingwei
-
Efficiency:
-
84%
-
Protections:
-
Short Circuit/overload/ over temperature
-
Cooling method:
-
free air convection
-
Eclosure material:
-
Aluminum
-
Size:
-
291x132x68mm
-
Working Temperature and humidity:
-
-10℃~60℃,20%~90% RH
-
Certification:
-
ISO9001,CE
-
Warranty:
-
2 Years
-
ODM accepted:
-
yes
Quick Details
-
Output Power:
-
>500W
-
Input Voltage:
-
85~240v
-
Output Voltage:
-
12v
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Mingwei
-
Model Number:
-
S-1000
-
Output Frequency:
-
47~63 Hz
-
Output Current:
-
100A
-
Brand:
-
Mingwei
-
Efficiency:
-
84%
-
Protections:
-
Short Circuit/overload/ over temperature
-
Cooling method:
-
free air convection
-
Eclosure material:
-
Aluminum
-
Size:
-
291x132x68mm
-
Working Temperature and humidity:
-
-10℃~60℃,20%~90% RH
-
Certification:
-
ISO9001,CE
-
Warranty:
-
2 Years
-
ODM accepted:
-
yes
- Low price and high reliability
- AC input power suitable for the world
- 105°C output capacitor
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact efficiency
- With short-circuit and overload protection
- Compact size, light weight
- Installed with EMI filter, minimum wave
-
100%full-load burn-in test
| DC output voltage | 12v | 13.5v | 15v | 24v | 27v | 48v |
| Rated output current | 80A | 74A | 66A | 40A | 37 | 20A |
| Output current range | 0~80a | 0~74A | 0~66A | 0~40A | 0~37A | 0~20A |
| DC output power | 1000w | 1000W | 990W | 1000.4W | 1000W | 1000W |
| Efficiency | 84% | 84% | 85% | 85.5% | 86.5% | 87% |
| Adjustable range for DC voltage | 10~13.2v | 12~15v | 13.5~18v | 20~26.4v | 24~30v | 41~56v |
|
AC input voltage range |
190~240VAC/47~63Hz |
|
Input current |
07A /230V |
|
AC dash current |
Cold-start current 50A/230V |
|
Leakage current |
<3.5mA/240VAC |
|
Overload protection |
105%~150%Type: pulsing hiccup shutdown reset: auto recovery |
|
Temperature coefficient |
±0.03%/°C(0~50°C) |
|
S tartup .rise .retention time |
200ms 100ms 30ms |
|
Vibration |
10~500Hz, 2G 10min/1 cycle , Period for 60 min , Each axes |
|
With standard voltage |
Input and output internal :1.5KvAC input and enclosure : 1.5KvAC output and enclosure: 0.5KvAC |
|
Isolation resistance |
Input and output internal: input and enclosure. Output and enclosure: 500VDC/100M Ω |
|
Working temperature and humidity |
-10°C ~+60°C(Refer to output diagram cech,20%~90%RH |
|
Store temperature and humidity |
-20°C ~+85°C, 10%~95%RH |
|
Overall dimension |
291×132×68mm |
|
Weight |
2.35kgs |
|
Safety standards |
UL 1012 TUV EN6050(IEC,UL1950) Approved |
|
EMC standards |
CISPR22(EN55022),IEC801-2,3,4IEC555 -2 Verification |
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security produ c ts;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
Mingwei Corporation, founded in 2003,is recognized as the leading manufacturer of industrial switching powelies in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m²,factory building 20000m² .The products include AC/DC&DC/DC standard, PFC, open frame, battary charger, din rail, LED driver and custom-design switching power supplies, over 5000 models showing greating flexibility. “Mingwei” has been a famous brand in China, and incresingly well-known in world market .
1.our factory
2.our certifications
3.Our tests
4.why choose us?
1. What we do is making you satisfied. Our goal is providing you with right products andcome up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advancefor your consideration. Decision for theshipping terms will be made according to your requirements.
3. Delivery time is guaranteed. Stock information will be updating for your referencebefore you place a order with us.
4. Price is negotiable if you have large quantity demand.
5. Package is customized. Usually we use films, foam boxes and cartons.
6. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
1. What is your warranty? And if I got wrong ones, how will you do with it?
A: If having wrong ones which cannot work, pls show us pictures, and we will replace the relative spare parts or a new one accordingly. If you wanna to refund, it also can be discussed.
2. What is your minimum order quantity?
A: The MOQ is 100PCS, but the quantity for OEM packages should be 1000PCS or more.
3. Which payment terms you can accept?
A: We accept T/T, L/C,
4. What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements. .
5. How about your goods’ quality?
A: All our goods are certificated by CE, RoHS and FCC. High quality is widely recognized by Europe and America.
6. Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels.
