Quick Details
-
Brand Name:
-
HUNDOM
-
Machinery Capacity:
-
1500L
-
Machinery Function:
-
Heating, Mixing, Cooking
-
Product name:
-
Strawberry Jam Cooking Pot
-
Material:
-
SS304 or SS316
-
Volume:
-
50L-1000L
-
Heating method:
-
Electric / Steam / Gas
-
Motor power:
-
0.75-22kw
-
Speed:
-
0-2800rpm
-
Stirrer type:
-
wall scraper and homogenizer
-
Machine Type:
-
Industrial Food Cooking Machine
-
Application:
-
Food Cooking Industrial Jacketed Kettle
-
Usgae:
-
chemical ,industry,industy, food ,light industry
Quick Details
-
Weight (KG):
-
200
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUNDOM
-
Machinery Capacity:
-
1500L
-
Machinery Function:
-
Heating, Mixing, Cooking
-
Product name:
-
Strawberry Jam Cooking Pot
-
Material:
-
SS304 or SS316
-
Volume:
-
50L-1000L
-
Heating method:
-
Electric / Steam / Gas
-
Motor power:
-
0.75-22kw
-
Speed:
-
0-2800rpm
-
Stirrer type:
-
wall scraper and homogenizer
-
Machine Type:
-
Industrial Food Cooking Machine
-
Application:
-
Food Cooking Industrial Jacketed Kettle
-
Usgae:
-
chemical ,industry,industy, food ,light industry
Product Description

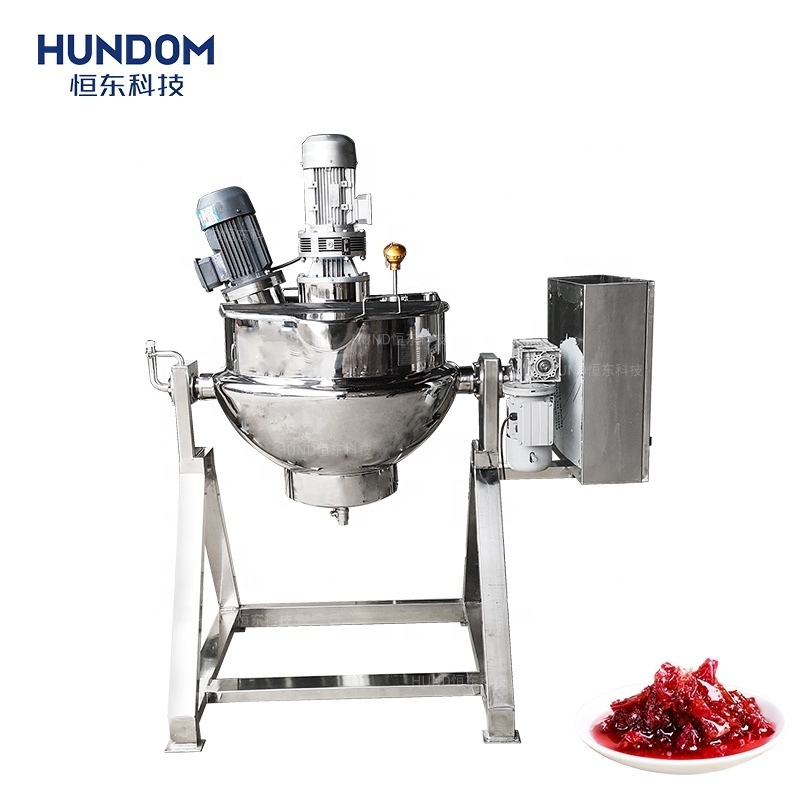

Structure:
Tilting jacketed kettle is composed of kettle,bracket,worm wheel and worm etc. The kettle can revolve within 180°, the equipment is used for open concentration,mainly for decocting and concentration of liquid in industries of pharmaceutical industry,food industry,chemical industry and light industry etc. Contact the materials part is made of stainless steel SUS304 or SUS316,which has perfect corrosion-proof performance,and is highly endurable according to GMP requirements.Blender also can be added according to customer requirements ects .
Features :
1.
The cooking pot body adopts a stamping molding stainless steel head, ensure the smooth
2. High-quality stainless steel manufacturing, fully meet the requirements of the food hygiene.
3. The kettle with agitator, using tiltable pot, discharging fast and no residue.
4. Compact structure, convenient operation and maintenance,high efficiency, low energy consumption, long service life
Application:
The stainless steel jacket kettle is
widely used
in
cakes, soft drinks, fruit juices, dairy products, canned food and brewing, pharmaceutical, daily life and industry sandwich pot.Mainly used in meat products, candy, beverages, canned food, can aslo be used for large restaurants or dining room of porridge, boiling water, cooking
such as candy, medicine, dairy, liquor, cake, candied fruit, drink, canned goods, sauced meat etc.
It is a wonderful equipment to improve quality, reduce time and improve working conditions during foods processing.
Main technical parameter
|
Model
|
|
HD-50
|
HD-100
|
HD-200
|
HD-300
|
HD-400
|
HD500
|
||||||
|
Equipment volume ( L)
|
|
50
|
100
|
200
|
300
|
400
|
500
|
||||||
|
Working pressure in jacket (Mpa)
|
|
<0.2
|
|
|
|
|
|
||||||
|
Evaporating quantity (kg/h)
|
|
30
|
40
|
65
|
75
|
100
|
150
|
||||||
|
Heating area (m2)
|
|
0.4
|
0.45
|
1.0
|
1.15
|
1.44
|
1.9
|
||||||
|
Energy consumption (kg/h)
|
|
33
|
44
|
72
|
90
|
110
|
165
|
||||||
|
Weight of equipment (kg)
|
|
170
|
190
|
230
|
320
|
360
|
485
|
||||||
|
|
Length
|
720
|
800
|
1400
|
1450
|
1500
|
1600
|
||||||
|
|
Width
|
600
|
650
|
700
|
800
|
850
|
900
|
||||||
|
|
Height
|
830
|
950
|
1100
|
1110
|
1140
|
1150
|
||||||
Product details
