- Product Details
- {{item.text}}
Quick Details
-
Number of Row:
-
Double row
-
Brand Name:
-
OEM
-
Model Number:
-
22348
-
Place of Origin:
-
SWDEN
-
Thickness:
-
155 mm
-
material:
-
Chrome Steel
-
Retainer:
-
Stamp steel
-
Vibration:
-
Z1V1
-
clearance:
-
Normal
-
Samples:
-
Acceptable
-
OEM service:
-
Approval
-
Application:
-
mining, metallurgical, paper-making
-
Quality standard:
-
ISO9001-2008
-
MOQ:
-
1PC
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
-
Precision Rating:
-
P0
-
Seals Type:
-
open
-
Number of Row:
-
Double row
-
Brand Name:
-
OEM
-
Model Number:
-
22348
-
Place of Origin:
-
SWDEN
-
Thickness:
-
155 mm
-
material:
-
Chrome Steel
-
Retainer:
-
Stamp steel
-
Vibration:
-
Z1V1
-
clearance:
-
Normal
-
Samples:
-
Acceptable
-
OEM service:
-
Approval
-
Application:
-
mining, metallurgical, paper-making
-
Quality standard:
-
ISO9001-2008
-
MOQ:
-
1PC

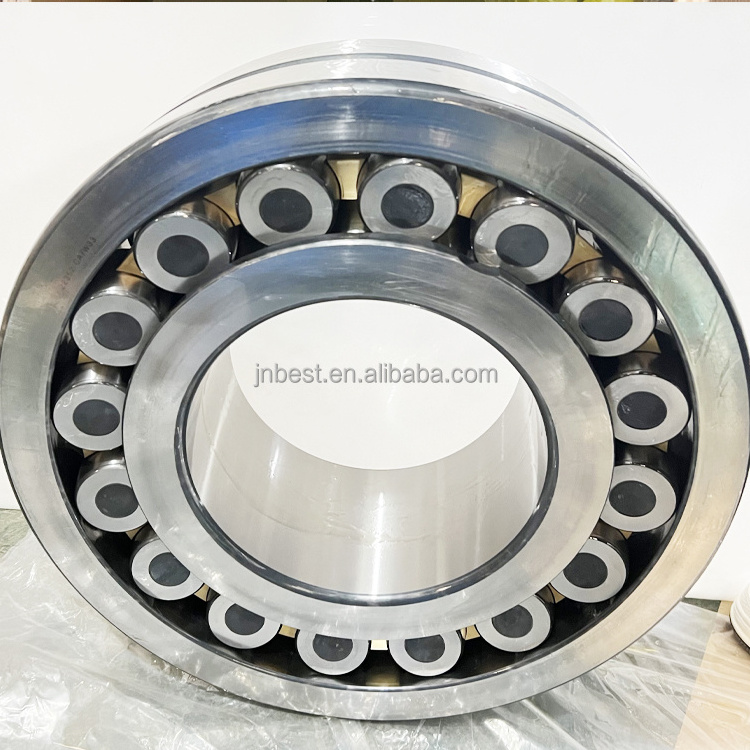

Mill Ball Grinder Bearing 22348 CCK /W33 22348MB spherical roller bearing 22348 MB Machinery Bearing
Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
Parameters of bearing 22348
| Bore diameter: | 240 mm | |
| Outside diameter: | 500 mm | |
| Overall width: | 155 mm | |
| Bore type: |
Straight |
|
| Outer ring type: |
Not Split |
|
| Internal clearance: |
C0 |
We supply one-stop service , you can get Spherical roller bearings 22348 bearing in several famous brand, other reference pictures is as follows:
Features of Bearing 22348
-
1).Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings
2).High load carrying capacity
Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3).Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust , providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends
4).Low friction
Self-guiding rollers keep friction and frictional heat at low levels . A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.
Related Spherical Roller Bearing Catalogue
| 21300 Series | 22200 Series | 22300 Series | 2300 Series | 23100 Series |
|
21305 CC
21306 CC 21307 CC 21308 CC 21308 E/C3 21309 EK/C3 21310 EK/C3 21311 EK/C3 21312 E 21313 E 21314 EK 21315 E 21315 EK/C3 21316 E 21316 E/C3 21316 EK 21316 EK/C3 21317 E 21317 E/C3 21317 EK 21317 EK/C3 21318 E 21318 E/C3 21318 EK 21318 EK/C3 21319 E 21319 E/C3 21319 EK 21320 E/C3 21320 EK/C3 |
22205 E
22206 E 22207 E 22208 E 22210 E 22211 E 22212 E 22213 E 22214 E 22215 E 22216 E 22217 E 22218 E 22219 EK 22220 E/C3 22222 E 22222 EK/C3 22224 EK/C3 22226 EK/C3 22228 CC/C3W33 22230 CC/C3W33 22232 CC/W33 22234 CCK/C3W33 22236 CCK/C3W33 22238 CC/C3W33 22240 CCK/W33 22244 CCK/C3W33 22244 CCK/W33 22248 CCK/W33 22252 CCK/C3W33 |
22308 E
22309 EK 22310 E 22311 E 22312 E 22314 E 22315 E 22317 E 22317 EJA/VA405 22318 EK/C3 22319 EKJA/VA405 22320 E 22320 EJA/VA405 22322 E 22324 CC/W33 22326 CC/W33 22328 CC/C3W33 22330 CC/C3W33 22332 CC/C3W33 22334 CCK/W33 22336 CC/W33 22338 CC/W33 22340 CC/C3W33 22348 CC/C3W33 22348 CCK/C3W33 22352 CCK/C3W33 22356 CCK/C3W33 |
23022 CC/C3W33
23024 CCK/W33 23026 CCK/W33 23028 CCK/W33 23030 CC/C3W33 23032 CC/C3W33 23034 CC/C3W33 23036 CC/W33 23038 CCK/W33 23040 CCK/W33 23044 CC/C3W33 23048 CC/C3W33 23052 CC/C08W33 23056 CC/C3W33 22348 CCK/W33 23068 CCK/W33 23072 CCK/W33 23076 CCK/W33 23080 CC/W33 23084 CA/W33 23092 CA/W33 |
23120 CC/W33
23120 CCK/C3W33 23122 CC/W33 23124 CC/C3W33 23124 CCK/W33 23126 CC/C3W33 23128 CC/C3W33 23130 CC/C3W33 23130 CCK/W33 23132 CC/C3W33 23134 CC/C3W33 23136 CC/C3W33 23136 CC/W33 23136 CCK/C3W33 23136 CCK/W33 23138 CCK/W33 23140 CCK/W33 23144 CCK/HA3C4W33 23148 CC/C3W33 23152 CC/C3W33 23156 CC/C3W33 23164 CCK/W33 23168 CCK/W33 23176 CAK/W33 23180 CA/W33 |
Contact us for further information or to get a quote on Mill Ball Grinder Bearing 22348 CCK /W33 22348MB spherical roller bearing 22348 MB Machinery Bearing .
