Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongding
-
Voltage:
-
3ph~220v-460v~50/60hz
-
Weight (KG):
-
1800
-
Range of work:
-
1300x2500mm
-
Working height:
-
200mm
-
Running speed:
-
20m/min
-
Processing speed:
-
10m/min.
-
Spindle power:
-
9kW automatic tool changer spindle HQD
-
Tool magazine:
-
line tool magazine
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 23000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongding
-
Voltage:
-
3ph~220v-460v~50/60hz
-
Weight (KG):
-
1800
-
Range of work:
-
1300x2500mm
-
Working height:
-
200mm
-
Running speed:
-
20m/min
-
Processing speed:
-
10m/min.
-
Spindle power:
-
9kW automatic tool changer spindle HQD
-
Tool magazine:
-
line tool magazine

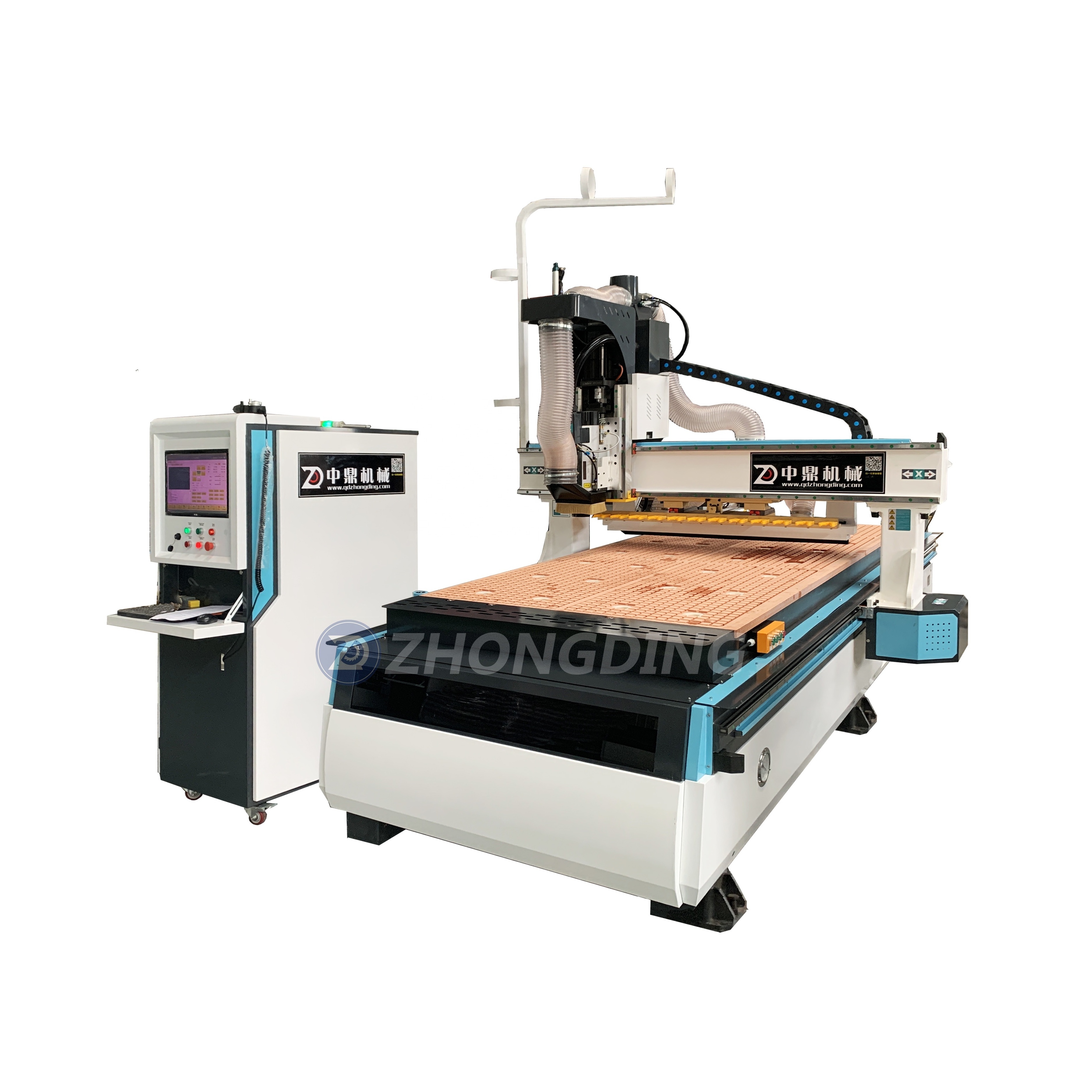

Linear ATC CNC Router Wood Carving Machine 9kw Automatic Tool Changer 3 Axis CNC Wood Router Machine Spindle HQD
|
Model
|
ZD1325 - Atccnc router with line tool magazine
|
|
|
|
Working stroke
|
1300*2500*200mm
|
|
|
|
Running Speed
|
120m/min
|
|
|
|
Working Speed
|
25m/min
|
|
|
|
Device architecture
|
After sand blasting and stress relief annealing treatment, it is processed by CNC gantry CNC one-time forming and processing. The
structure is stable, the precision is high, and it is not deformed for a long time. |
|
|
|
Spindle power
|
9kW automatic tool changer spindle HQD
|
|
|
|
Servo drive system
|
Three-axis 1.8kw high speed servo motor Z axis + brake
|
|
|
|
Control System
|
Taiwan imported Syntec/WEIHONG processing center dedicated control system
|
|
|
|
Speed reduction mechanism
|
Taiwan imported Wanxin reducer
|
|
|
|
Rack and pinion
|
German imported brand ROR 1.5M high precision grinding helical rack
|
|
|
|
Rail screw
|
Taiwan imported dragon horse rail + TBI screw
|
|
|
|
Positioning way
|
3+2 high-precision automatic positioning cylinder pedal-type one-key positioning device
|
|
|
|
Bed structure
|
High-precision heavy-duty side-mounted bed, processed by large-scale CNC five-face milling center
|
|
|
|
|
|
|
|
|
Countertop structure
|
Double-layer vacuum adsorption of 6 large partitions, multi-point adsorption / multi-slot design / adsorption uniform / instantaneous
adsorption / instant release |
|
|
|
Electrical accessories
|
Japan imported OMRON relay, France Schneider relay alternate use
|
|
|
1. Function: 9kw cc tool change spindle, suitable for efficient cutting, slotting, milling, milling and other processing of panel furniture;
2. Structure: Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy;
3. Accessories: The accessories are all world-renowned brands: Taiwan guide screw / Japanese reducer / Delixi electrical components;
4. Accuracy: Excellent accessories and sophisticated detection devices enable the product to obtain perfect positioning and running accuracy;
5. High speed: high-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency;
6. Table: Double-layer PVC vacuum table design, strong structure, no deformation, with instant adsorption and instant release functions;
7. Pushing device: simple and efficient, improve work efficiency;
High-precision HQD spindles for power and flexibility. Perfect for milling, boring, and cutting applications. Handles a wide range of materials, including wood, plastic, and aluminum.
High-precision HQD spindles for power and flexibility. Perfect for milling, boring, and cutting applications. Handles a wide range of materials, including wood, plastic, and aluminum.
Linear automatic tool changer, a total of 12 tools --- The linear tool changer can save more tool change time. We use a servo motor with a reducer to change the tool faster.
Linear automatic tool changer, a total of 12 tools --- The linear tool changer can save more tool change time. We use a servo motor with a reducer to change the tool faster.
Double-layer PVC vacuum table design, strong structure, no deformation, with instant adsorption and instant release functions
Helical rack and pinion drives provide accurate and dynamic acceleration. Positioning cylinder and automatic tool setting instrument.
Their durable design ensures a long service life with minimal maintenance. Capable of precisely moving heavy loads.
Independent computer control cabinet.
Syntec/Weihong conrol sytem from taiwan.
We advise the latest model 60WA Syntec System which could use touch screen
