Quick Details
-
Brand Name:
-
TANYANO
-
Model Number:
-
TYNUL-1000C
-
Output Frequency:
-
50HZ
-
Size:
-
29.2*11.2*7.2mm
-
Weight:
-
1.05KG
-
Output waveform:
-
Modified Sine Wave
-
Output:
-
AC220
-
Color:
-
Bronzing
-
Peak Load Power:
-
1000W
-
Maximum Power Output:
-
2000W
-
Voltage Regulation Factor:
-
5(%)
-
Charge Current:
-
10A
-
Application:
-
Household,car,fan,solar system,communication etc...
-
OEM:
-
Accept Customization
-
Warranty:
-
1 Year
-
Certificate:
-
CE FCC ROHS
Quick Details
-
Output Current:
-
4.5A
-
Customized support:
-
Packaging, Shell Color, Logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANYANO
-
Model Number:
-
TYNUL-1000C
-
Output Frequency:
-
50HZ
-
Size:
-
29.2*11.2*7.2mm
-
Weight:
-
1.05KG
-
Output waveform:
-
Modified Sine Wave
-
Output:
-
AC220
-
Color:
-
Bronzing
-
Peak Load Power:
-
1000W
-
Maximum Power Output:
-
2000W
-
Voltage Regulation Factor:
-
5(%)
-
Charge Current:
-
10A
-
Application:
-
Household,car,fan,solar system,communication etc...
-
OEM:
-
Accept Customization
-
Warranty:
-
1 Year
-
Certificate:
-
CE FCC ROHS
Technology data
|
Model
|
500W
|
1000W
|
1500W
|
2000W
|
|||
|
Input voltage
|
DC 12V
|
|
|
|
|||
|
Output voltage
|
AC 220V
|
|
|
|
|||
|
Continuous output power
|
500W
|
1000W
|
1500W
|
2000W
|
|||
|
Spike output power(peak)
|
1000W
|
2000W
|
3000W
|
4000W
|
|||
|
Output frequency
|
50Hz
|
|
|
|
|||
|
Output waveform
|
Modified sine wave
|
|
|
|
|||
|
Voltage Regulation Factor
|
5(%)
|
|
|
|
|||
|
Load Regulation
|
5(%)
|
|
|
|
|||
Products Description
Feature:
1, Apply in car,marine, solar electric power, motive office, emergency work, outwork.
2, Efficiency up to 90.5%, super surge capacity to start difficult load.
3, Strong adaptable and stable load.
4, Over-current and short circuit by fuse protect
5, Cabinet use and restart safely
6, Low voltage protect.
7, Over-load protect.

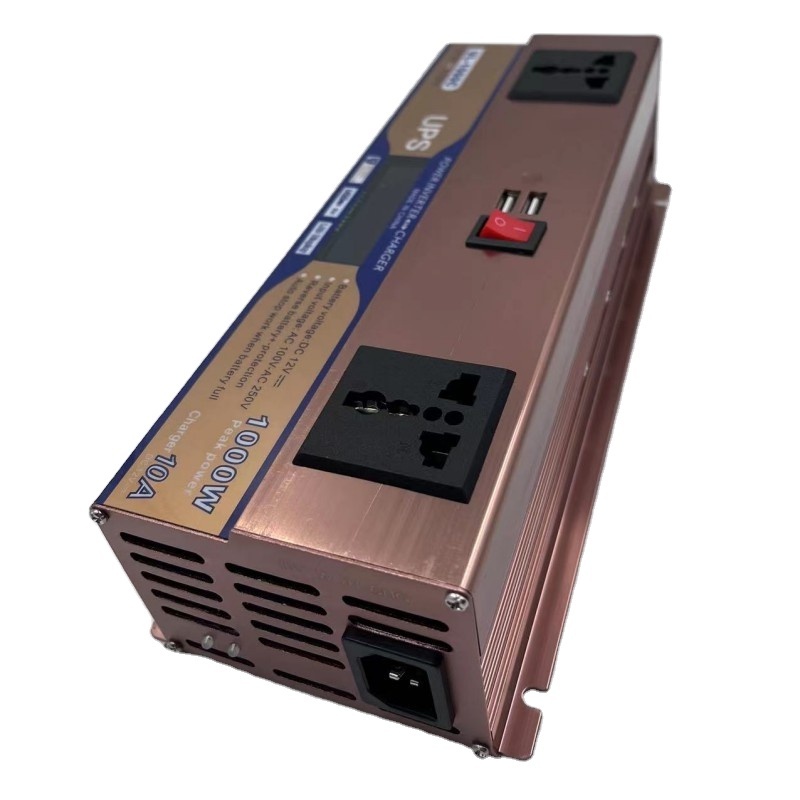

Wholesale 1000W UPS inverter with charging 12V to 220V uninterruptible power inverter
Product packaging
Simple operation process
1. First confirm that the inverter power is greater than the rated power of electrical appliances, such as the use of inductive appliances (such as refrigerators, air conditioners with compressors, etc. Motors, fans, water pumps, old TV sets, impact drills and other electrical appliances with coils) inverters must be larger than 3-8 times.
2. Ensure that the operating voltage of the inverter and the connected battery or power supply voltage are within the operating voltage range of the inverter.
3. Ensure that the front switch of the inverter is turned off.
4. Connect the delivered connecting wires to the inverter input wiring terminal red connect the inverter red wiring terminal and the battery positive terminal "+", Black connection inverter black terminal and battery negative terminal "-". Do not connect the inverter backwards, otherwise it will burn out the internal fuse
5. Insert the electrical appliance you want to use into the power output jack in front of the inverter.
6. First turn on the power switch of the inverter, and then turn on the power switch of the appliance you use after the work indicator is on.
7. Turn off the inverter, first turn off the power switch of the electrical appliance, then turn off the inverter power switch and then unplug the power plug of the electrical appliance you use.
1. First confirm that the inverter power is greater than the rated power of electrical appliances, such as the use of inductive appliances (such as refrigerators, air conditioners with compressors, etc. Motors, fans, water pumps, old TV sets, impact drills and other electrical appliances with coils) inverters must be larger than 3-8 times.
2. Ensure that the operating voltage of the inverter and the connected battery or power supply voltage are within the operating voltage range of the inverter.
3. Ensure that the front switch of the inverter is turned off.
4. Connect the delivered connecting wires to the inverter input wiring terminal red connect the inverter red wiring terminal and the battery positive terminal "+", Black connection inverter black terminal and battery negative terminal "-". Do not connect the inverter backwards, otherwise it will burn out the internal fuse
5. Insert the electrical appliance you want to use into the power output jack in front of the inverter.
6. First turn on the power switch of the inverter, and then turn on the power switch of the appliance you use after the work indicator is on.
7. Turn off the inverter, first turn off the power switch of the electrical appliance, then turn off the inverter power switch and then unplug the power plug of the electrical appliance you use.
Product Scene Map
Certifications
Factory
FAQ
Q1. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, most of items we keep stock for all season. It will take 7 to 10 days after receiving your advance payment. If we didn’t have stock, the delivery time depends on the items and the quantity of your order. Normal 30 to 60 days.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock.
2.Assure best quality with our complete inspection system before shipment.
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet.
4.Provide in time Feedback tracking and after-sales services to maximize the customer satisfactory.
Q2. How about your delivery time?
A: Generally, most of items we keep stock for all season. It will take 7 to 10 days after receiving your advance payment. If we didn’t have stock, the delivery time depends on the items and the quantity of your order. Normal 30 to 60 days.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock.
2.Assure best quality with our complete inspection system before shipment.
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet.
4.Provide in time Feedback tracking and after-sales services to maximize the customer satisfactory.
