Quick Details
-
Model Number:
-
TZ58/1800-10R5
-
Certificate:
-
Solar keymark
-
Product name:
-
Heat Pipe Solar Collector
-
Application:
-
Hot water and heating
-
Tube size:
-
58/1800mm
-
Tube distance:
-
78mm
-
Qty of tube:
-
from 10 to 30
-
Condensor diameter:
-
14mm
-
Manifold material:
-
Aluminum-1.5mm
-
Manifold connection:
-
3/4 inch
-
Service Temperature:
-
95℃
-
Operating fluid pressure:
-
0.4Mpa
Quick Details
-
Pipe Material:
-
Borosilicate glass 3.3
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunrain
-
Model Number:
-
TZ58/1800-10R5
-
Certificate:
-
Solar keymark
-
Product name:
-
Heat Pipe Solar Collector
-
Application:
-
Hot water and heating
-
Tube size:
-
58/1800mm
-
Tube distance:
-
78mm
-
Qty of tube:
-
from 10 to 30
-
Condensor diameter:
-
14mm
-
Manifold material:
-
Aluminum-1.5mm
-
Manifold connection:
-
3/4 inch
-
Service Temperature:
-
95℃
-
Operating fluid pressure:
-
0.4Mpa
Product Description

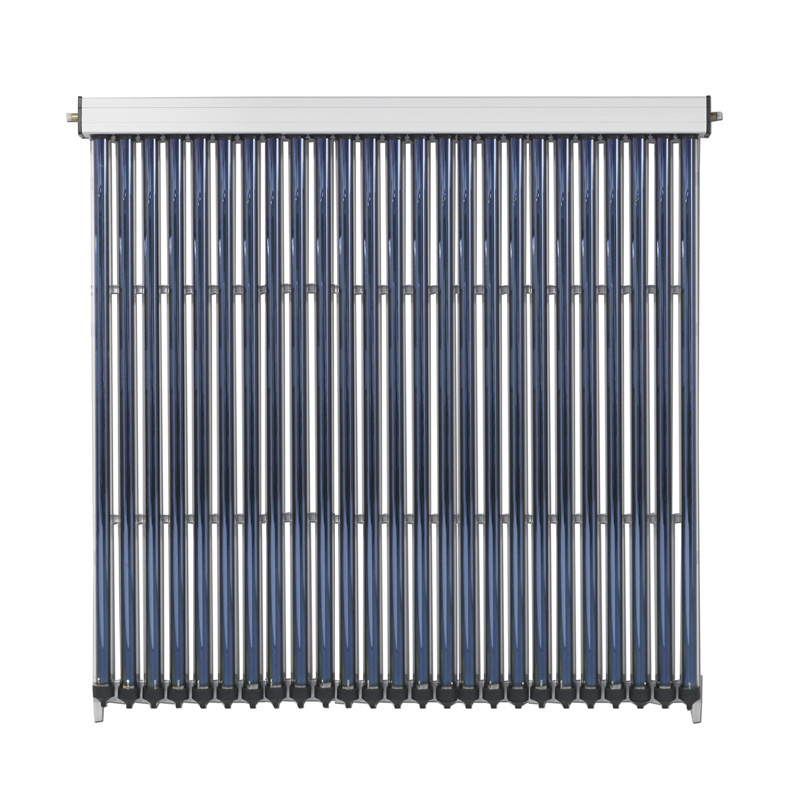

Sunrain R5 keymark certificated evacuated/vacuum tube heat pipe solar collector
1. Our solar collectors are top-quality and comes with a 5-year warranty for your peace of mind.
2. With over 5 million units sold, our solar collectors have a proven track record of stability and reliability.
3. Our solar collectors are versatile and suitable for pitched and flat roofs.
4. The evacuated/vacuum tube solar collector has a cold resistance rating of -30℃.
5. It has been tested to withstand 10 Bar and operates at 6 Bar.
6. It features low pressure drop for efficient operation and minimal strain on your plumbing.
7. It can meet both residential and commercial hot water demands.
8. Our solar collector is easy to install and has a long service life, making it a practical and cost-effective investment.
3. Our solar collectors are versatile and suitable for pitched and flat roofs.
4. The evacuated/vacuum tube solar collector has a cold resistance rating of -30℃.
5. It has been tested to withstand 10 Bar and operates at 6 Bar.
6. It features low pressure drop for efficient operation and minimal strain on your plumbing.
7. It can meet both residential and commercial hot water demands.
8. Our solar collector is easy to install and has a long service life, making it a practical and cost-effective investment.
Working principle
Evacuated/vacuum tube solar collectors are designed to harness the power of solar energy using evacuated/vacuum tubes. These tubes are specially designed to absorb solar radiation and transfer the energy to a heat pipe via aluminum fins. As the heat pipe is heated, the working liquid inside vaporizes and rises to the top of the heat pipe where it comes into contact with the condenser. The condenser, which is inserted into the manifold port inside the solar collector manifold, transfers the heat to the cold water flow inside the manifold port. This process is repeated continuously, causing the working liquid to cool down and return to the bottom of the heat pipe, where it can be heated again. Ultimately, the cold water (glycol) inside the manifold port is heated and ready for use.
Indirect heat pipe solar collector heating systems, also known as closed loop systems, utilize a heat exchanger to transfer heat to potable water. This is especially important in colder climates, as impurities in mains water can deposit inside the collector tube. To prevent freezing, a special heat transfer fluid is used in the collector circuit. This fluid can be a mixture of water and glycol or 100% water. Systems that include glycol offer greater protection against freezing conditions.
Product Paramenters
|
item
|
value
|
|
Product name
|
Keymark certificated vacuum/evacuated tube heat pipe solar collector
|
|
Place of Origin
|
Jiangsu, China
|
|
Brand Name
|
Sunrain
|
|
Model Number
|
TZ58/1800-10R5/15R5/20R5/25R5/30R5
|
|
Pipe Material
|
Borosilicate glass 3.3
|
|
Certificate
|
Solar keymark
|
|
Warranty
|
3years
|
|
Coating
|
Three Targets Al-ss-cu
|
|
Application
|
Hot water and heating
|
|
Tube size
|
58/1800mm
|
|
Tube distance
|
78mm
|
|
Qty of tube
|
from 10 to 30
|
|
Condensor diameter
|
14mm
|
|
Manifold material
|
Aluminum-1.5mm
|
|
Manifold connection
|
3/4 inch
|
|
Service Temparature
|
95℃
|
|
Operating fluid pressure
|
0.4Mpa
|
Installation Instructions
The Sunrain heat pipe solar collector can be installed on pitched roof at angles between 15 and 75 degrees
The Sunrain heat pipe solar collector can also be installed on flat roof at angles 30 or 45 degrees
Product Application
Sunrain vacuum/evacuated tube heat pipe solar collectors are suitable for a variety of settings, including households, schools, hotels, and other commercial projects worldwide, making them a versatile and practical solution.
Certification and Exhibition
Sunrain and its heat pipe solar collector have obtained many certificates and achieved great success in exhibiting their products overseas.
