Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEXING
-
Model Number:
-
4001
-
Color:
-
Dark
-
Certificate:
-
CE,GOST,REACH
-
HS CODE:
-
3917400000
-
OEM:
-
Yes
-
Standard:
-
DIN8076-3:ISO14236
-
Packing:
-
Carton
-
MOQ:
-
500
-
Pressure:
-
PN10
-
Working Pressure:
-
0.1~1Mpa
Quick Details
-
Technics:
-
Injection
-
Shape:
-
Reducing
-
Head Code:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEXING
-
Model Number:
-
4001
-
Color:
-
Dark
-
Certificate:
-
CE,GOST,REACH
-
HS CODE:
-
3917400000
-
OEM:
-
Yes
-
Standard:
-
DIN8076-3:ISO14236
-
Packing:
-
Carton
-
MOQ:
-
500
-
Pressure:
-
PN10
-
Working Pressure:
-
0.1~1Mpa

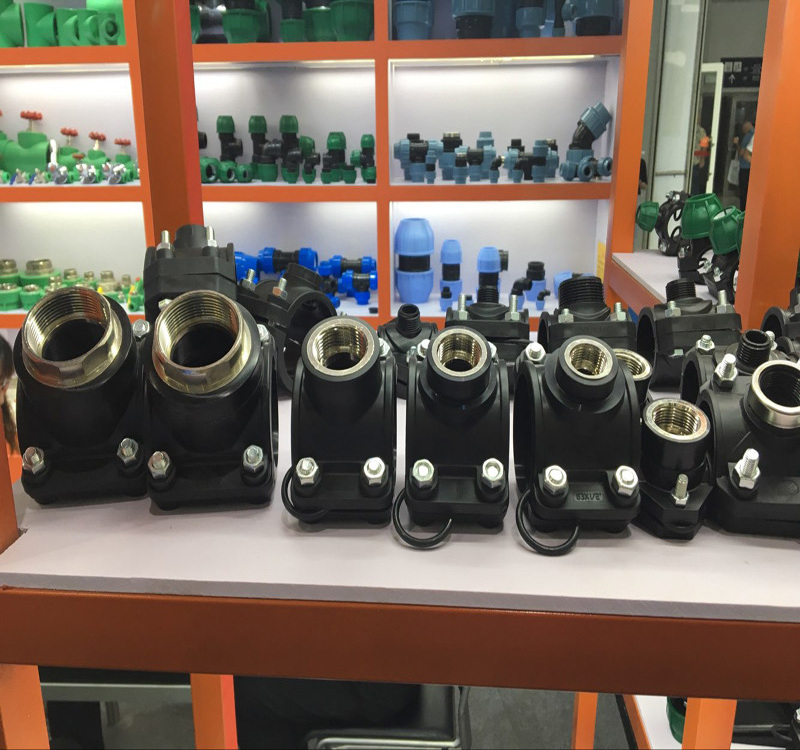

ISO14236 Standard HDPE PP Compression Fittings for irrigation
saddles from 20mm-110mm
KEXING compression fittings and clamp saddles are designed specifically for connecting PE pipes with an outside diameter of 20-110mm. They are fully compatible with all LDPE, HDPE, PE40, PE80 and PE100 pipes complying with EN12201, ISO4427, ISO14236, ISO13460, DIN 8074. They are normally used to convey drinking water and fluids at pressure up to 16 bar for generic applications. The quality of the material used makes these fittings resistant to etching by numerous chemical substance and to UV rays. Kexing universal fittings can be used to connect systems using PE metric piping with existing pipes made of any material.
Size:
110/25/32mm
160/25/32mm
Materials
|
Part |
Material |
Colour |
|
Body(5) |
Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. |
black |
|
Nut(1) |
Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) |
blue(RAL5005) |
|
Clinching ring(2) |
Polyacetal resin(POM)with high mechanical resistance white and hardness |
white |
|
Blocking bush(3) |
Polypropylene |
black |
|
O Ring gasket(4) |
Special elastomeric acrylonitrile rubber(NBR) for alimentary use |
black |
|
Reinforcing ring |
AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1-1/4”to 4” |
Working pressure
16bar (UNI 9562) at the temperature of 20°C for diameters from 20mm to 63mm
10bar
(UNI 9562) at the temperature of 20°C for diameters from 75mm to 110mm
Certificate
CE ISO9001:2000 ISO14001
