Quick Details
-
Place Of Origin:
-
Shaanxi,Chian
-
Working Frequency:
-
87-108MHz
-
Output Power:
-
1kw
-
Load Impedance:
-
50Ω
-
Output Interface:
-
1-5/8 flange or customized
-
Residual Radiation:
-
<-70dB
-
Weight:
-
18kg
-
Pre-emphasis:
-
50μs/75μs
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Vision, Vision
-
Model Number:
-
WS-003, WS-003
-
Place Of Origin:
-
Shaanxi,Chian
-
Working Frequency:
-
87-108MHz
-
Output Power:
-
1kw
-
Load Impedance:
-
50Ω
-
Output Interface:
-
1-5/8 flange or customized
-
Residual Radiation:
-
<-70dB
-
Weight:
-
18kg
-
Pre-emphasis:
-
50μs/75μs
50km fm transmitter

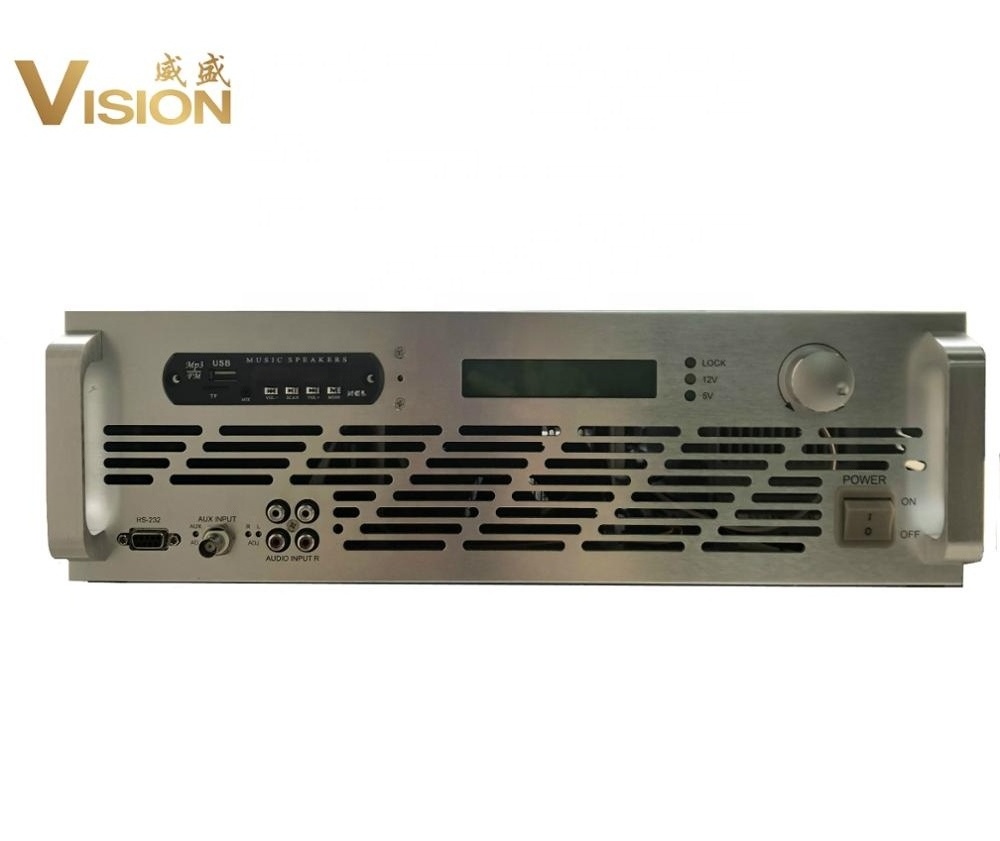

Vision Wireless FM Broadcast Equipment 1kw FM Transmitter
The 1 kw fm broadcast transmitters are widely used for professional radio station to transmit high quality FM radio programs, and power amplifier module has the advantages of good linearity, high gain, high power, high efficiency, long life .
|
No. |
Item |
Specifications |
|
1 |
Frequency Range |
87.5-108 MHz any optional |
|
2 |
Output Power |
1k w |
|
3 |
Load Impedance |
50Ω |
|
4 |
Radio Frequency Output Interface |
1-5/8 flange (or customerized) |
|
5 |
Residual Radiation |
<-70dB |
|
6 |
Modulation Frequency Offset |
100% modulation, 75 kHz |
|
7 |
Pre-emphasis |
50μs/75μs |
|
8 |
FM Signal to Noise Ratio |
< -75dB (75 KHz Frequency Offset at 1 KHz) |
|
9 |
Frequency Response |
20Hz-15KHz <±0.1dB |
|
10 |
Harmonic Distortion |
30Hz-15KHz <0.1% |
|
11 |
Parasitic Amplitude Modulation Noise |
<-50dB (without modulation) |
|
12 |
Load Wave Suppression Degree |
<-45dB |
|
13 |
Audio Input Level |
0dBm |
|
14 |
Audio Input Impedance: |
10K (Unbalanced) |
|
15 |
Left &Right Signal Level |
30Hz-15KHz<0.5dB |
|
16 |
Degree of Separation |
30Hz>53dB (Typical Value: 56dB) |
|
17 |
Ambient Temperature |
-10—+50℃ |
|
18 |
Power Consumption |
1.1KW |
|
19 |
Overall Dimensions |
44x50x13.2cm
|
|
20 |
Weight |
20Kg |
