Quick Details
-
Table Travel (Z) (mm):
-
60 mm
-
Max. Table Load(kg):
-
500
-
Travel (W-axis) (mm):
-
50 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
200 r.p.m
-
Spindle Motor Power(kW):
-
2.5
-
Production Capacity:
-
400 sets per month
-
Place of Origin:
-
China
-
Brand Name:
-
HG
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
400*210*290mm
-
Weight (T):
-
0.05 T
-
Product name:
-
Portable Line Boring Welding Machine for bucket
-
Model:
-
HG-11
-
Scope diameter:
-
40-250mm
-
Boring working stroke:
-
280mm
-
Boring bar specification:
-
50*1600mm
-
Working voltage:
-
AC220v/50hz
-
Welding scope:
-
45-250mm
-
Application:
-
Crawler excavator
-
Weight:
-
Weight
-
package:
-
wooden case
Quick Details
-
Table Size (mm):
-
1300x1600
-
Table Travel (X) (mm):
-
50 mm
-
Table Travel (Y) (mm):
-
40 mm
-
Table Travel (Z) (mm):
-
60 mm
-
Max. Table Load(kg):
-
500
-
Travel (W-axis) (mm):
-
50 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
200 r.p.m
-
Spindle Motor Power(kW):
-
2.5
-
Production Capacity:
-
400 sets per month
-
Place of Origin:
-
China
-
Brand Name:
-
HG
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
400*210*290mm
-
Weight (T):
-
0.05 T
-
Product name:
-
Portable Line Boring Welding Machine for bucket
-
Model:
-
HG-11
-
Scope diameter:
-
40-250mm
-
Boring working stroke:
-
280mm
-
Boring bar specification:
-
50*1600mm
-
Working voltage:
-
AC220v/50hz
-
Welding scope:
-
45-250mm
-
Application:
-
Crawler excavator
-
Weight:
-
Weight
-
package:
-
wooden case
Product Description

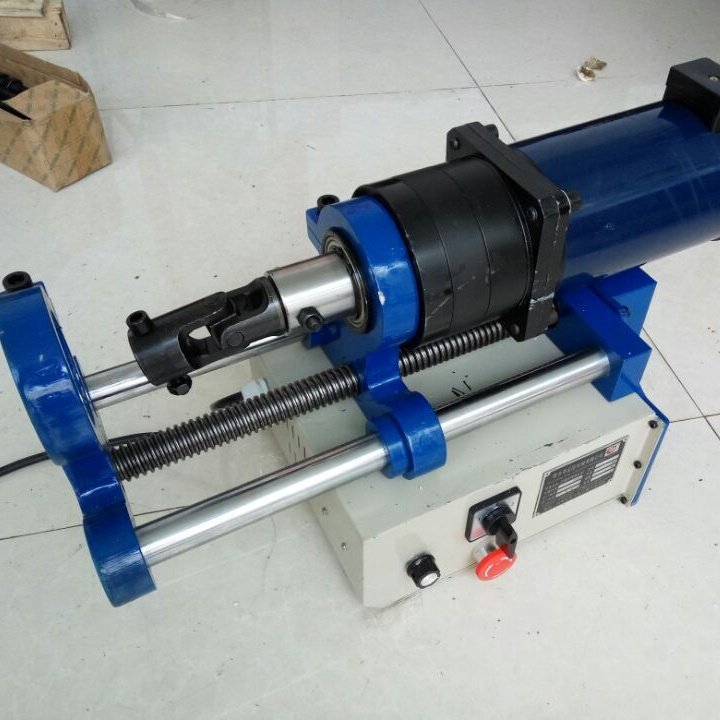

Repair welding boring machine for shaft pin holes on various construction machinery structures
Construction machinery boring machine is used for post-welding processing of axle pin holes, revolving holes and hinged holes on various construction machinery structures, or for inserting sleeves after reaming. Excavators, loaders, presses, cranes are the same. Repair and processing of holes.
Type 40 boring machine is installed by welding and bolt connection, which is convenient for disassembly and transportation. Type 40 boring machine is suitable for processing a variety of concentric holes and multiple holes side by side. The work is continuous cutting, with high production efficiency and high machining accuracy.
Characteristic
|
Name
|
Portable High Quality Low Budget Mobile Line Boring Machine for Excavator Digger
|
|
Scope
|
Φ 40-200 - mm
|
|
Boring working stroke
|
260mm
|
|
Boring bar specification
|
50*1600mm
|
|
Working voltage
|
AC 220v/50hz
|
|
Maximum power
|
2.5kw (electrodeless speed regulation)
|
|
Spindle speed
|
0.1-200r/min
|
|
Welding scope
|
Φ 55-250mm
|
|
Wire diameter
|
Φ 1.0
|
|
Machine weight
|
80KG
|
